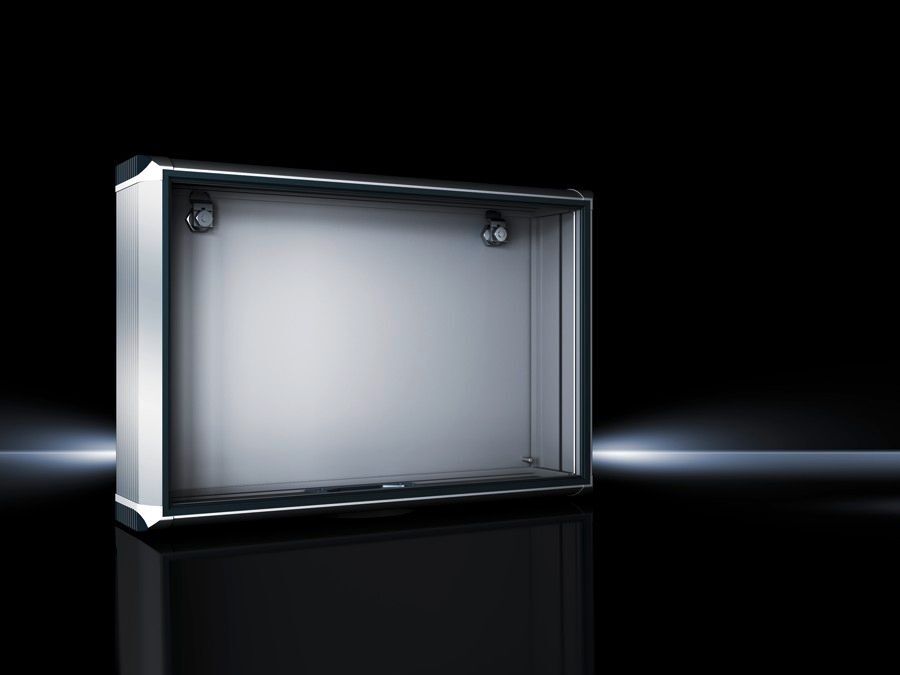

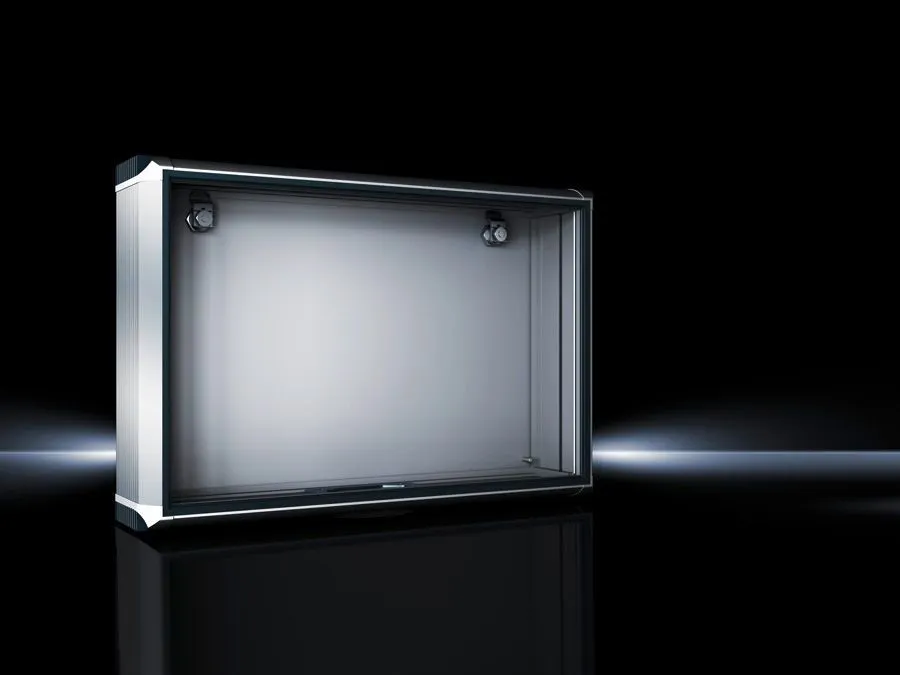

Rittal CP 6380.610 Enclosure - IP65, Aluminium
Part Number: 6380610
Manufacturer
Rittal
Part number
6380610
Alt Part Number
CP 6380.610
Quick Summary
Rittal CP 6380.610 enclosure protects control panels with a slim, high-thermal-conductivity housing for compact automation. Many projects struggle to fit robust protection into tight footprints while maintaining reliable service access. The design provides IP65 protection and rear servicing access, enhancing maintenance efficiency in harsh environments. With a front-panel fit of 520x600 mm and a compact 150 mm installation depth, this aluminium enclosure supports scalable control solutions without sacrificing usability. The natural anodised finish and sturdy construction deliver long-term reliability, while lightweight, extruded aluminium aids installation and reduces total cost of ownership for panel builders and system integrators alike.
Product Information
Extended Description
6380610 Rittal: CP Optipanel, for front panel BH 520x600 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Article number
CP 6380.610
Design
Support arm connection Ø 130 mm
Benefits
Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Material
Enclosure: Extruded aluminium section | Corner pieces: Die-cast zinc | Corner protectors: Plastic
General colour
Natural anodised
Colour
Enclosure: Natural anodised | Corner pieces: RAL 7035 | Corner protectors: similar to RAL 7024
Supply includes
Enclosure with hinged rear panel | Seals | Seals and assembly parts for front panels
Installation depth
150 mm
IP protection category to IEC 60 529
IP 65
To fit front panel width
520 mm
To fit front panel height
600 mm
Design
Servicing access from the rear
Note
The support arm connection may be swapped over by rotating the enclosure
Basic material
Aluminium
Lock
Lock version: Cam | Number of locks: 2 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
9.2 kg
Customs tariff number
94032080
EAN
4028177663206
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Optipanel, for front panel BH 520x600 mm, installation depth 150 mm, Extruded aluminum section, Support arm connection Ø 130 mm
Feature: Aluminium extrusion enclosure with high thermal conductivity. Business impact: enhances passive heat dissipation, reducing the need for active cooling and saving energy in compact control cabinets. Application: suitable for small to mid-size automation panels where space is premium. Feature: Front-panel BH 520x600 mm compatibility with 150 mm depth. Business impact: enables compact machine layouts and simpler retrofits without repaneling existing panels. Application: retrofits and new builds in automation and process control. Feature: IP65 protection (IEC 60529). Business impact: ensures ingress protection against dust and water jets, lowering risk of component failures in harsh environments. Application: factory floors, outdoors, and enclosed equipment cabinets. Feature: Rear servicing access. Business impact: lowers maintenance downtime by allowing servicing without removing front panels. Application: routine inspections and component swaps during operation. Feature: Supplied with seals and assembly parts for front panels. Business impact: reduces part sourcing time and speeds initial commissioning. Application: quick installation for OEMs and integrators. Feature: Locking system with two cam locks and 3 mm double-bit inserts. Business impact: enhances security of concealed control electronics while keeping access straightforward. Application: secure enclosures in industrial settings. Note: The enclosure supports rotation to swap the rear/arm connection orientation, simplifying installation in constrained spaces.
Get a Quick Quote for a Rittal 6380610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6380610?
Enquire Now
FAQs
The CP 6380.610 is designed for a 520x600 mm front panel and a 150 mm installation depth. It ships with seals and assembly parts for front panels, ensuring a straightforward retrofit or new build. This compatibility simplifies panel upgrades and reduces the need for custom fabrications, accelerating project schedules.
IP65 protection means the enclosure is dust-tight and protected against water jets from any direction. For best results, ensure all seals are correctly installed and the rear panel remains hinged as supplied. This rating minimizes ingress risk during routine cleaning, washdowns, or exposure to humidity in factory and outdoor settings.
Yes. The CP 6380.610 note indicates the support arm connection may be swapped over by rotating the enclosure. This flexibility supports varied installation geometries, allowing easier integration into constrained spaces without custom hardware or rework.
The enclosure uses a cam lock system with two locks and a 3 mm double-bit insert, providing robust access control. This configuration helps prevent tampering while maintaining practical access for authorized maintenance personnel, aligning with typical industrial security requirements.
Each enclosure is supplied as a single unit, with a weight of approximately 9.2 kg per pack. This weight informs lifting plans and shipping logistics. The package includes the enclosure, hinged rear panel, seals, and seals/assembly parts for front panels, simplifying on-site handling and deployment.
