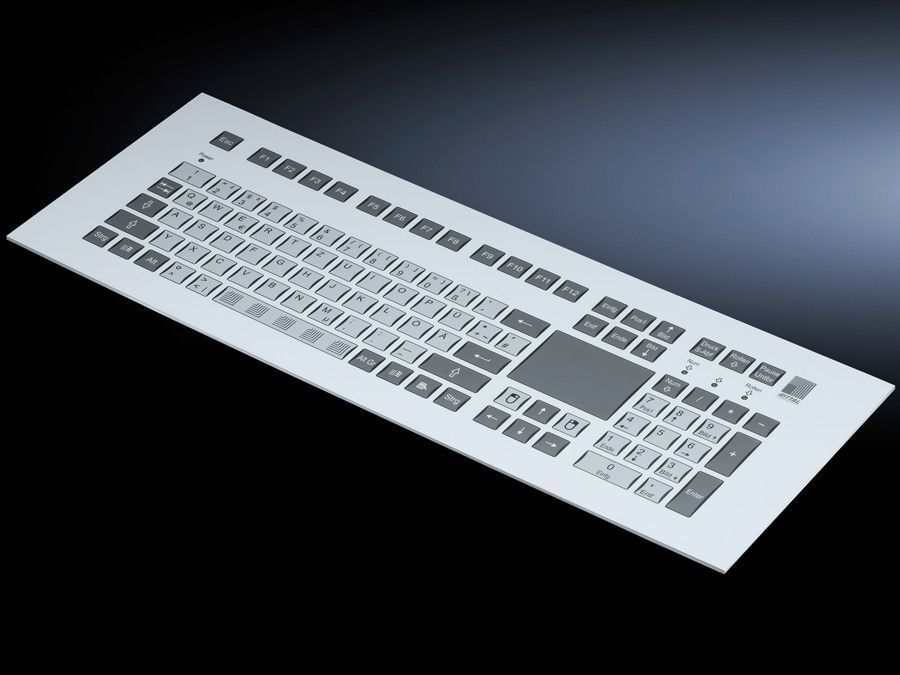

Rittal SM 6446.030 Built-in keyboard - IP65 front-sealed
Part Number: 6446030
Manufacturer
Rittal
Part number
6446030
Category
Alt Part Number
SM 6446.030
Quick Summary
Rittal SM 6446.030 Built-in keyboard is a 19-inch, 4U integrated input module designed for industrial enclosures. Engineers often struggle with cabling, space limits, and the need for a separate protective mouse in harsh environments. IP65 front sealing and a wide operating temperature range from -40 to 90°C ensure reliable operation in demanding locations. The unit also features a robust USB interface, a German layout, and a long service life with up to 3 million switching cycles. By combining a touchpad with 105 keys, it reduces installation time and simplifies operator workflows, delivering cost savings while maintaining strict protection and reliability standards.
Product Information
Extended Description
6446030 Rittal: SM Built-in keyboard 19"/4 U, WHD: 482,6x177x30 mm, Installation depth: 23 mm, german, With integral touchpad
Article number
SM 6446.030
Product description
The integral touchpad eliminates the need for installation of an additional, correct protection category mouse, and cabling is also reduced. The short stroke keys are easily identified by edge embossing, less force is required to operate them, and they have good positive key actuation.
Benefits
The separate number pad enables the parameters to be entered quickly
Material
Front panel: Aluminium
Supply includes
USB connection cable, length 1.8 m | Seal | Drilling template | Assembly parts for surfaces
Dimensions
Width: 482.6 mm | Height: 177 mm | Depth: 30 mm
Number keys
2.6 N
Number keys
0.3 mm
Interfaces
1 x USB
Number keys
105
Layout
German
Resolution capacitive touchpad
40 pixels/mm
Lifetime
3 million switching cycles
Dimensions
Thread: M5 | Thread length: 20 mm
Operating temperature range
-40 °C...90 °C
IP protection category to IEC 60 529
IP 65 (at the front, sealed)
Packs of
1 pc(s).
Weight/pack
1.82 kg
Customs tariff number
84716060
EAN
4028177682115
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
SM Built-in keyboard 19"/4 U, WHD: 482,6x177x30 mm, Installation depth: 23 mm, german, With integral touchpad
Feature: Integral touchpad eliminates the need for a separate protection-category mouse and reduces cabling. Business Impact: Simplified installation, fewer components, lower material costs. Application: Ideal for 19"/4U HMIs in harsh environments where minimal routing is possible. Feature: Front aluminium front panel and IP65 front sealing. Business Impact: Enhanced dust and water protection in demanding industrial settings, reducing downtime. Application: Suitable for control cabinets and outdoor-ready enclosures. Feature: USB interface (1 x USB) and German layout with 105 keys. Business Impact: Quick, reliable operator input and easy integration with standard control systems, improving commissioning speed. Application: Plant floor panels and machine dashboards. Feature: Compact dimensions (Width 482.6 mm × Height 177 mm × Depth 30 mm) with installation depth of 23 mm. Business Impact: Flexible mounting in tight spaces and easier retrofits without altering enclosure depth. Application: Retrofit projects in legacy installations. Feature: Lifetime and durability (3 million switching cycles) and operating range (-40 °C to 90 °C). Business Impact: High reliability and reduced maintenance costs across temperature extremes. Application: Food, pharma, and heavy industry environments where temperature swings occur.
Get a Quick Quote for a Rittal 6446030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6446030?
Enquire Now
FAQs
The unit is designed for 19"/4U enclosures with a front-sealed aluminium panel. Installation depth is 23 mm, and mounting uses M5 threads with 20 mm thread length. It ships with a drilling template and assembly parts to simplify mounting, plus a USB cable of 1.8 m for immediate connection.
The built-in keyboard features a German layout with 105 keys and a capacitive touchpad at 40 pixels per millimeter. It supports up to 3 million switching cycles, operates from -40 °C to 90 °C, and uses a single USB interface for straightforward integration into standard control systems.
Yes. It provides IP65 front sealing for dust and water protection and operates reliably from -40 °C to 90 °C. The rugged aluminium front and sealed interface make it appropriate for harsh factory floors, outdoor cabinets, and other demanding locations.
Compatibility stems from standard 19"/4U form factor, precise WHD dimensions (482.6 × 177 × 30 mm), USB connectivity, and a mounting depth compatible with common panel designs. The included drilling template and assembly parts streamline integration into existing enclosures and control panels.
The integrated touchpad and reduced cabling lower installation and maintenance costs, while the robust lifetime (3 million switching cycles) plus wide operating range minimize replacements in demanding environments. This translates to faster commissioning, less downtime, and lower total cost of ownership for industrial HMIs.
