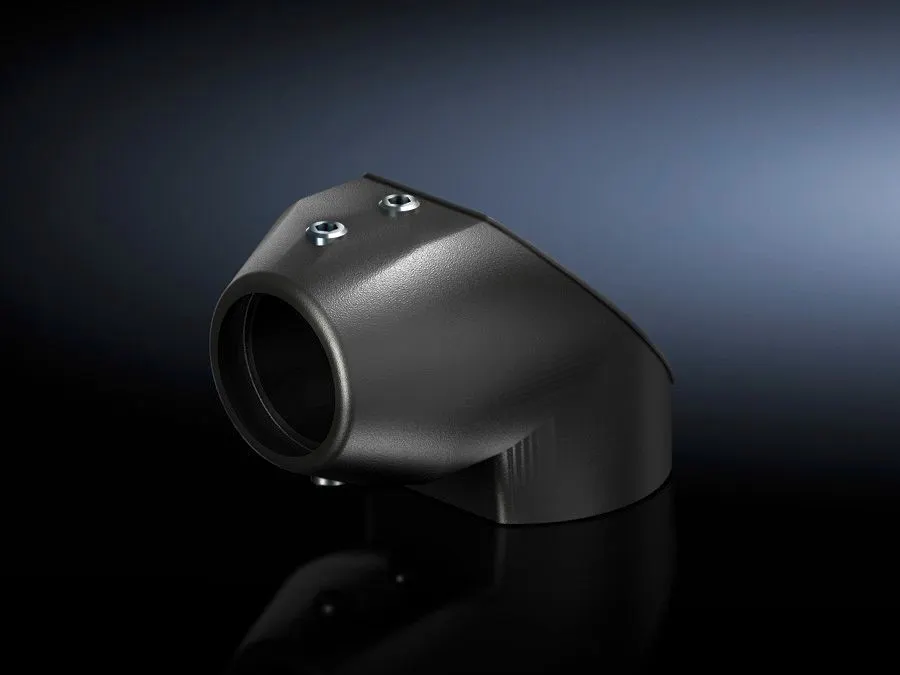

Rittal 6501120 CP Angle Coupling - Rotation ~305°
Part Number: 6501120
Manufacturer
Rittal
Part number
6501120
Alt Part Number
CP 6501.120
Quick Summary
Rittal CP Angle Coupling 6501120 enables a precise 90° connection for CP 40 support arms in enclosure assemblies. Engineers often struggle with misaligned arms and limited adjustability in tight cabinet spaces. This component aligns with ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications, helping procurement and maintenance teams verify compatibility across systems. With cast aluminium construction, textured finish in RAL 7024, and a lockable 305° swivel, it delivers durable performance in harsh industrial environments. The CP 6501120 adds quick-install benefits, supports modular enclosure designs, and integrates smoothly with existing Rittal CP40 accessories, reducing downtime while improving reliability and total cost of ownership for electrical infrastructure projects.
Product Information
Extended Description
6501120 Rittal: CP Angle coupling 90°, CP 40, for support arm connection 90 x 71 mm, steel
Article number
CP 6501.120
Material
Cast aluminium
Surface finish
Textured paint
Colour
RAL 7024
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 305°, lockable via clamping levers
Packs of
1 pc(s).
Weight/pack
1.58 kg
Customs tariff number
76169990
EAN
4028177436046
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Angle coupling 90°, CP 40, for support arm connection 90 x 71 mm, steel
Feature: 90° CP40 connection designed for CP 40 support arms; business impact: precise alignment reduces rework and ensures consistent mounting quality; application: ideal for CP40 arm installations in Rittal cabinets, enabling reliable right-angle configurations in industrial enclosures. Feature: Rotating/tilting with approximately 305° swivel and lockable via clamping levers; business impact: broad adjustability accommodates imperfect frames and uneven floors, delivering accurate alignment on first install; application: common in electrical infrastructure upgrades where arm orientation must be fine-tuned. Feature: Cast aluminium with textured finish in RAL 7024; business impact: lightweight yet robust construction and corrosion resistance extend service life in harsh environments; application: suitable for both indoor and outdoor enclosure environments in automation setups. Feature: Packs of 1 and weight per pack 1.58 kg; business impact: simplifies procurement, logistics, and on-site handling for field teams; application: single-unit packs streamline installation planning in large projects. Feature: Clear product identifiers and classifications—CP 6501.120, EAN 4028177436046, tariff 76169990; business impact: improves ERP/murchasing accuracy and regulatory compliance; application: supports BOM mapping, customs clearance, and traceability in manufacturing environments.
Get a Quick Quote for a Rittal 6501120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6501120?
Enquire Now
FAQs
Mount the CP 40 arms to the CP 6501.120 using the 90 x 71 mm connection, ensure the mounting surface is clean, align the arm positions, and tighten the locking/clamping levers to secure a rigid, right-angle connection. The component's 1-piece pack and 1.58 kg weight help streamline field installation by reducing setup time.
Key specs include material cast aluminium, textured paint finish, colour RAL 7024, rotating/tilting capability, rotation angle/swivel of approx. 305°, article number CP 6501.120, weight per pack 1.58 kg, and EAN 4028177436046. It is designed for CP 40 support arms with a 90 x 71 mm connection.
Yes. The CP 6501.120 is specifically designed for CP 40 arms, enabling a 90° connection to 90 x 71 mm supports. Its compatibility with Rittal enclosure systems supports quick integration with existing CP40 accessories and simplifies installation workflows.
The CP 6501.120 is classified under ETIM 9 EC000882 and ECLASS 8.0 27400556, with an EAN 4028177436046 and customs tariff number 76169990, which assists in procurement and regulatory compliance and enables accurate ERP mapping.
The 305° swivel with lockable clamping levers provides wide adjustability for precise arm alignment, reducing rework and installation time. Cast aluminium delivers durability with a textured finish, while the single-pack design and clear product identifiers simplify logistics, BOM creation, and long-term maintenance in industrial automation environments.
