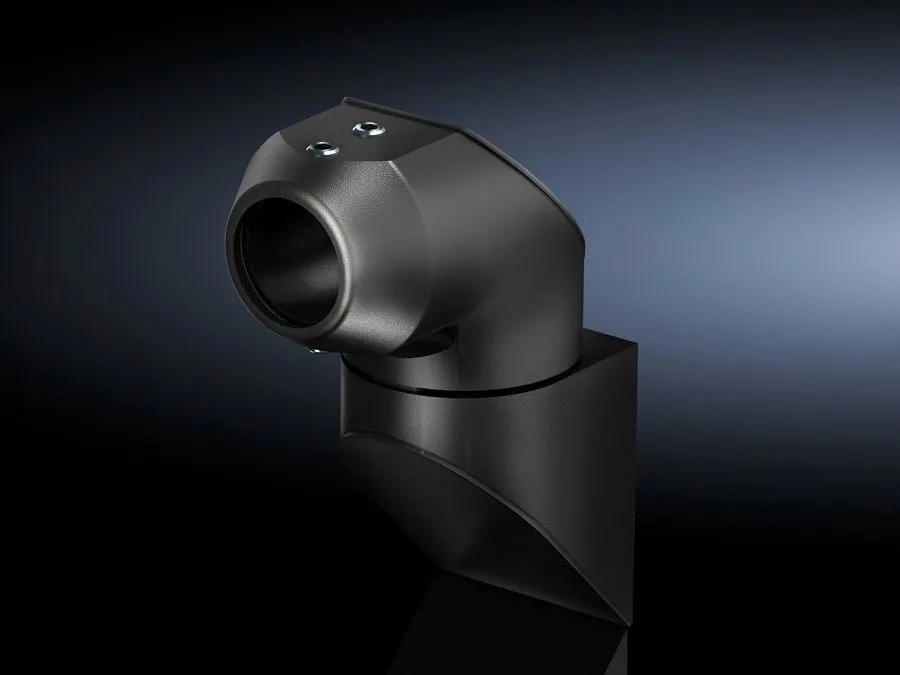

Rittal CP 6501.150 Wall-mounted hinge CP 40, 330° rotation
Part Number: 6501150
Manufacturer
Rittal
Part number
6501150
Alt Part Number
CP 6501.150
Quick Summary
Rittal CP 6501.150 is a wall-mounted hinge for CP enclosures, enabling precise, secure mounting. Installers often struggle with misalignment and limited access in tight or cluttered panels. The part aligns with ETIM EC000882 and ECLASS 27400556 classifications, helping with data interoperability and procurement validation, even as structural integrity is maintained by cast aluminium and a textured paint finish in RAL 7024. While the data sheet lists material and finish, it does not show an explicit CE or IP rating; customers benefit from certified interoperability and robust hardware standards. The hinge supports efficient assembly and serviceability, reducing maintenance time and enhancing overall enclosure usability in control panels and electrical racks.
Product Information
Extended Description
6501150 Rittal: CP Wall-mounted hinge CP 40, steel
Article number
CP 6501.150
Material
Cast aluminium
Surface finish
Textured paint
Colour
RAL 7024
Rotating/tilting
Yes
Rotation angle/swivel area
approx. 330°, provided the top joint is able to move freely
Packs of
1 pc(s).
Weight/pack
2.13 kg
Customs tariff number
76169990
EAN
4028177436077
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Wall-mounted hinge CP 40, steel
Feature → Business Impact → Application: The CP 6501.150 uses a cast aluminium hinge with a textured paint finish, delivering robust load support for CP doors and long-term durability in industrial environments. Impact: This reduces door sag and misalignment, accelerating on-site assembly and lowering rework costs. Application: Ideal for CP wall-mounted doors on CP 40 enclosures in control rooms and production lines.Feature → Business Impact → Application: The hinge provides a rotation capability up to approximately 330°, with a freely moving top joint. Impact: Improves access to internal components, simplifies cable routing, and speeds routine maintenance. Application: Beneficial for installations that require frequent access to interior panels or equipment racks.Feature → Business Impact → Application: Textured paint finish in RAL 7024 and corrosion-resistant cast aluminium construction. Impact: Enhances environmental durability and reduces repainting or touch-ups in harsh factory settings. Application: Suitable for grey-control cabinet exteriors and factory automation enclosures with demanding aesthetics.Feature → Business Impact → Application: Packs of 1 piece with a weight of 2.13 kg per pack. Impact: Simplifies logistics, handling, and on-site deployment, reducing install time. Application: Fits single-door CP installations where precise, one-to-one replacement parts are preferred.Feature → Business Impact → Application: ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications ensure data interoperability and procurement traceability. Impact: Streamlines BOM creation, ERP integration, and supplier comparisons. Application: Useful for procurement-controlled projects and standardized enclosure programs across manufacturing facilities.
Get a Quick Quote for a Rittal 6501150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6501150?
Enquire Now
FAQs
The CP 6501.150 is designed as a CP Wall-mounted hinge CP 40 and is listed under article CP 6501.150. It uses cast aluminium with a textured finish, supports 330° rotation, and grips onto CP doors for secure mounting. Each pack contains 1 piece, and the EAN is 4028177436077, aiding inventory and procurement processes.
This hinge provides rotating/tilting capability with an approximate swivel angle of 330°, enabled by a top joint that can move freely. The extended rotation improves interior access for wiring, inspection, and maintenance, reducing time spent opening, maneuvering, and re-securing doors in tight enclosures.
The CP 6501.150 is associated with ETIM 9 EC000882 and ECLASS 8.0 27400556 classifications, which support standardized data exchange, compatibility checks, and streamlined procurement workflows. While CE/IP ratings aren’t specified in the data, these classifications enhance supplier integration and ERP alignment for CP enclosure hardware.
The product uses cast aluminium with a textured paint finish in RAL 7024, offering durability and weather resistance typical of factory environments. There is no explicit IP rating stated in the data, so for outdoor or harsh environments, verify IP/CE requirements and consider enclosure-level protections alongside this hinge.
Installation benefits include straightforward mounting to CP doors with 330° rotation for enhanced access, and a manageable 2.13 kg per pack, which simplifies logistics. ROI benefits come from reduced maintenance time, faster door service, fewer misalignments, and improved overall cabinet usability in production PPE and control systems.
