Rittal 6514200 CP Utility bars - 210 mm keyboard depth
Part Number: 6514200
Manufacturer
Rittal
Part number
6514200
Category
Alt Part Number
CP 6514.200
Quick Summary
CP Utility bars provide secure, space-saving keyboard support for control panels. They help programmers and service technicians keep keyboards accessible yet neatly tucked away when not in use. This accessory aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications and is considered in PCF category B for cradle-to-gate environmental assessment. By mounting under Comfort Panels (minimum 385 mm front panel width), the system offers at least 300 mm between utility bars, ensuring problem-free insertion and movement during operation. The combination of rugged sheet steel, zinc plating, and a straightforward installation sequence translates to tangible business value, reducing downtime, improving workflow, and supporting safer, cleaner operator environments.
Product Information
Extended Description

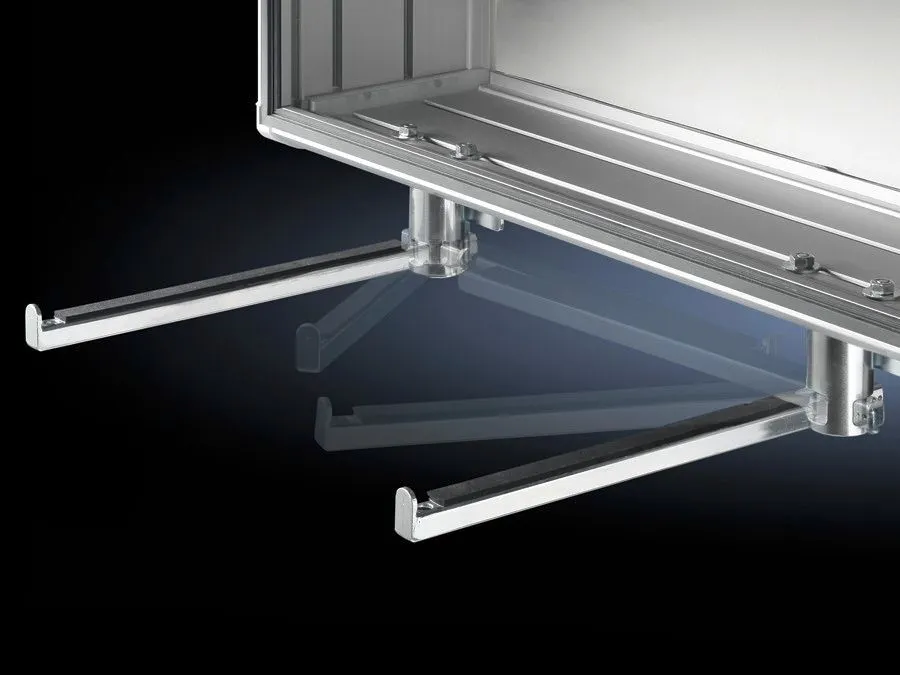

6514200 Rittal: CP Utility bars, vertically hinged, standard keyboard support
Article number
CP 6514.200
Product description
To support standard keyboards during programming and servicing work. Mounting distance of utility bars for problem-free insertion at least 300 mm. Depth adequate for keyboards up to max. 210 mm.
Benefits
After use, the utility bars fit securely and neatly under the mounting surface, thus giving the operator more space to move around.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
under Comfort Panels (min. front panel width 385 mm)
Packs of
2 pc(s).
Weight/pack
1.09 kg
PCF per pack (cradle-to-gate)
4.2Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177388260
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
CP Utility bars, vertically hinged, standard keyboard support
Feature: Vertically hinged design. Business impact: Enables quick keyboard access and secure, neat storage under the mounting surface, freeing valuable workspace. Application: Ideal during programming and servicing in control cabinets where space is at a premium and workflow must remain uninterrupted. Feature: Minimum mounting distance of 300 mm between utility bars. Business impact: Prevents interference during keyboard insertion and movement, reducing setup time and error potential. Application: Large control panels and multi-bar configurations where reliability and clearance are critical. Feature: Depth tolerance for keyboards up to 210 mm. Business impact: Broad compatibility with a range of standard industrial keyboards, minimizing part substitutions. Application: Field deployments and retrofit projects where equipment footprints vary. Feature: Material and surface finish—sheet steel, zinc-plated. Business impact: Robust, corrosion-resistant construction suitable for harsh environments, lowering maintenance costs. Application: Enclosures deployed in factory floors, warehouses, and outdoor-rated installations. Feature: Installation options under Comfort Panels (min front panel width 385 mm). Business impact: Space optimization with a clean panel top, enabling safer, more efficient operator movement. Application: New builds and upgrades where panel aesthetics and ergonomics matter. Feature: Pack contents and weight—packs of 2, weight per pack 1.09 kg. Business impact: Cost-effective logistics and easy inventory planning; scalable for multiple panels. Application: Assembly planning and procurement for mid-to-large scale control systems. Feature: PCF per pack 4.2 kg CO2 eq (Cat B) and sustainability note. Business impact: Threshold for environmental impact aligns with green procurement goals. Application: Compliance-conscious projects and corporate environmental programs. Feature: Supply includes assembly parts. Business impact: Reduces the need for separate accessories, speeding up installation. Application: Rapid field deployment and retrofit scenarios.
Get a Quick Quote for a Rittal 6514200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6514200?
Enquire Now
FAQs
Yes. CP 6514.200 is designed for installation under Comfort Panels with a minimum front panel width of 385 mm. It ships as a ready-to-mount kit (assembly parts included) and supports standard keyboards up to 210 mm in depth. The setup maintains at least 300 mm between bars for reliable operation, facilitating quick servicing without panel rework.
The system supports keyboards up to 210 mm in depth. A mounting distance of at least 300 mm between utility bars ensures problem-free insertion and clearance, even when multiple bars are installed. This configuration minimizes interference during programming and testing, improving throughput on busy assembly lines.
This accessory excels in control cabinets and switchgear installations where keyboards are used for programming and servicing. It provides secure, fold-away storage when not in use, keeps the panel top clean, and frees workspace for operators. It is ideal for new builds and retrofit projects that demand efficient use of space without compromising accessibility.
The CP 6514.200 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications and carries PCF category B environmental labeling (cradle-to-gate). These references help with procurement standardization and lifecycle assessments while supporting responsible material choices, such as zinc-plated sheet steel and included assembly parts.
Pack size is two units per pack, with a total weight of 1.09 kg per pack, simplifying inventory control and freight planning. The included assembly parts reduce installation time, accelerating commissioning and reducing downtime. The space-saving design also improves operator ergonomics, contributing to longer-term productivity gains and lower maintenance overhead.
