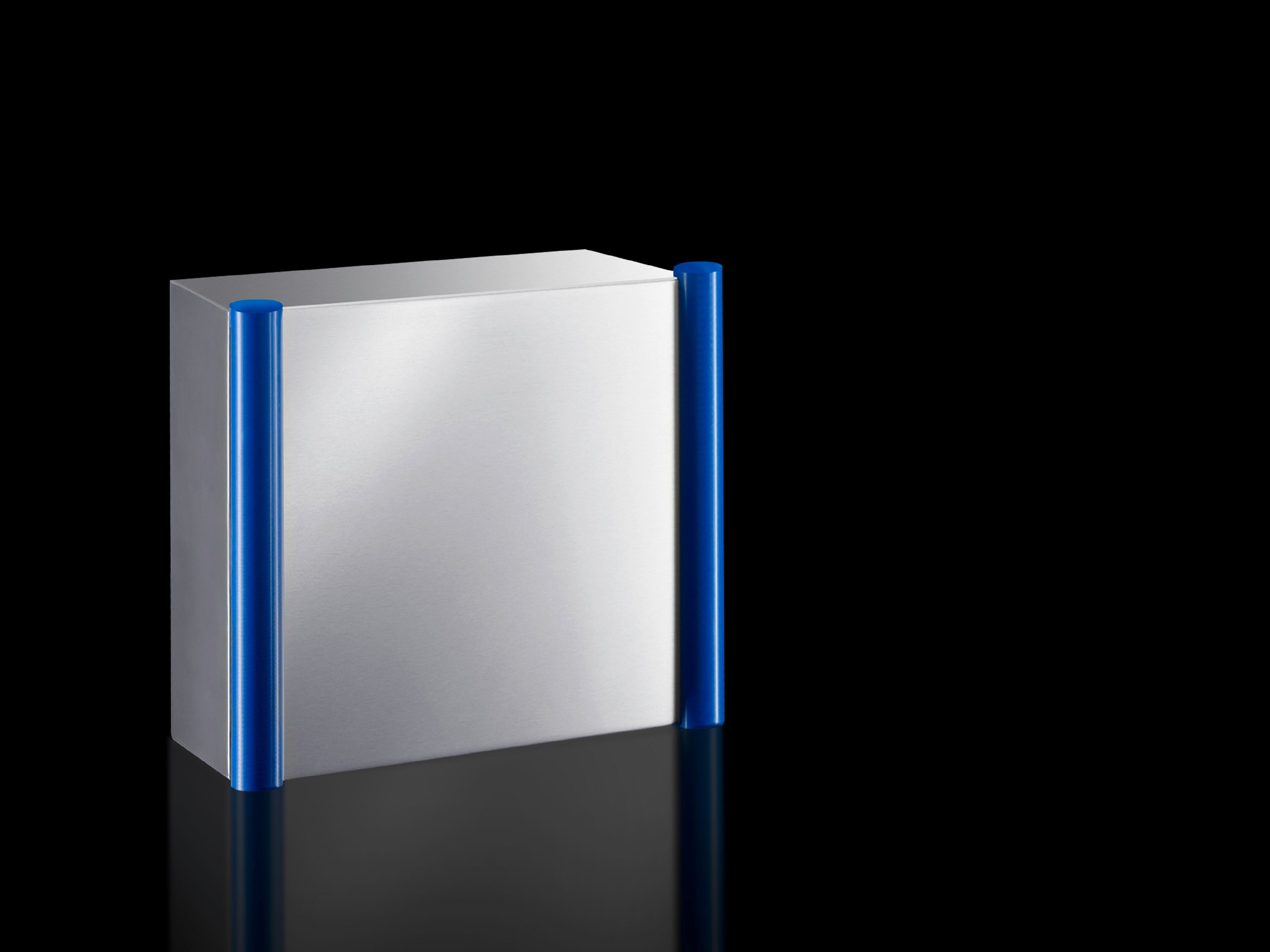

Rittal CP 6538.010 Command Panel Housing - IP66
Part Number: 6538010
Manufacturer
Rittal
Part number
6538010
Alt Part Number
CP 6538.010
Quick Summary
Rittal CP 6538.010 Command Panel Housing is a stainless steel enclosure designed for robust control panels in harsh industrial environments. In production lines where washdown, dust ingress, and corrosion threaten uptime, this housing helps reduce downtime through durable materials and precise construction. IP66 protection and NEMA 12 compatibility provide reliable ingress protection for challenging settings, while the brushed 1.4301 stainless steel surface and blue food-grade handle strips support hygiene and long service life. The design also supports CP40 stainless steel mounting, making integration straightforward and scalable for evolving automation needs, while offering cost-effective maintenance and consistent procurement data through ETIM and ECLASS classifications.
Product Information
Extended Description
6538010 Rittal: CP Command panel housing with door, WHD: 400x400x150 mm, Stainless steel 1.4301
Article number
CP 6538.010
Design
Support arm connection Ă 130 mm
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish
Brushed, grain 400
General colour
Stainless steel
Colour
Handle strips: similar to RAL 5002
Supply includes
Enclosure of all-round solid construction | Cut-out and reinforcement for support arm system CP 40 stainless steel | Fastener with guide plate | Door with sealing frame and side handle strips | Lock: 3 mm double-bit
Dimensions
Width:Â 400 mm | Height:Â 400 mm | Depth:Â 150 mm
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 12
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Stainless steel 1.4301 (AISIÂ 304)
Note on Model No.
Matching mounting panel 5050.453 with dispatch bag 5050.507
Packs of
1 pc(s).
Weight/pack
8.8 kg
Customs tariff number
94032080
EAN
4028177220386
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Command panel housing with door, WHD: 400x400x150 mm, Stainless steel 1.4301
The CP 6538.010 uses a stainless steel enclosure and door made from 1.4301 (AISI 304), delivering excellent corrosion resistance and longevity in demanding environments, which translates to lower maintenance costs and higher uptime in food, beverage, and pharmaceutical applications. By achieving IP66 ingress protection and NEMA 12, it delivers dust-tight and washdown-ready performance, reducing the risk of equipment downtime in production lines and cleaning cycles. Its 400x400x150 mm WHD (width x height x depth) fits standard control panels, and the inclusion of cut-outs and reinforcement for the CP 40 stainless steel support arm system simplifies installation and future upgrades. The brushed surface finish and blue dyed food-grade handle strips facilitate hygiene, easy cleaning, and operator safety, while the door-sealing frame ensures a reliable seal in moist environments. With a 3 mm double-bit lock and a swap-enabled design, maintenance and servicing are straightforward, minimizing downtime during panel access or replacement. The enclosure ships as a single pack with a weight of 8.8 kg, balancing rugged durability with manageable handling on-site. Compatibility with ETIM 9 EC002504 and ECLASS 8.0 27180505 ensures robust data integration for procurement and cataloging while supporting standardized SKU management across projects.
Get a Quick Quote for a Rittal 6538010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6538010?
Enquire Now
FAQs
The CP 6538.010 includes cut-out and reinforcement designed for CP40 stainless steel supports, and its design allows the support arm connection to be swapped by rotating the enclosure. To install, align mounting points with CP40 rails, secure the enclosure, then attach theCP40 arm and any required hardware. The 400x400x150 mm footprint fits common control panel layouts, enabling straightforward retrofits or new builds.
Yes. The enclosure uses stainless steel 1.4301 (AISI 304) for the main structure and features IP66 protection for washdown and dusty environments, plus NEMA 12 compatibility for indoor, dust- and oil-laden settings. Food-grade blue handle strips aid hygiene, and the sealed frame helps maintain cleanliness during routine cleaning and high-pressure washing.
The unit measures 400 mm wide, 400 mm high, and 150 mm deep, with a weight of 8.8 kg per pack. This compact, robust size fits standard control panel cut-outs while remaining easy to handle on-site. The dimensions, together with CP40 reinforcement, support straightforward mounting and scalable integration into existing automation cabinets.
Industries such as food and beverage, pharma, packaging, and machinery automation benefit from the CP 6538.010 due to its washdown-ready design, corrosion resistance, and secure sealing. It provides reliable control-panel protection in challenging environments where hygiene, uptime, and long service life are priority concerns.
The CP 6538.010 is classified under ETIM 9 EC002504 and ECLASS 8.0 27180505, enabling consistent data-driven procurement. It also features a GTIN of 4028177220386 and an EAN for easy cataloging. The enclosure is ready for integration with CP40 mounting and standard hardware, ensuring seamless compatibility with existing automation projects.
