Rittal CP 6539.010 Command Panel Housing - IP66
Part Number: 6539010
Manufacturer
Rittal
Part number
6539010
Alt Part Number
CP 6539.010
Quick Summary
CP 6539.010 command panel housing protects control gear in harsh industrial environments for automation applications. Many installations struggle with corrosion, washdowns, and unreliable seals, which drive downtime and maintenance cost. This model delivers stainless steel 1.4301 construction, a sealed door with a sealing frame, and food-grade plastic handle strips to withstand frequent cleaning. It carries IP66 protection and NEMA 12 reliability, ensuring ingress protection and enclosure integrity in challenging settings. By combining robust materials with CP40 stainless steel support arm compatibility, it supports scalable layouts while reducing installation time and lifecycle costs. For engineers and procurement teams, this enclosure translates to safer equipment, longer service intervals, and consistent performance in food processing, packaging, and process automation.
Product Information
Extended Description

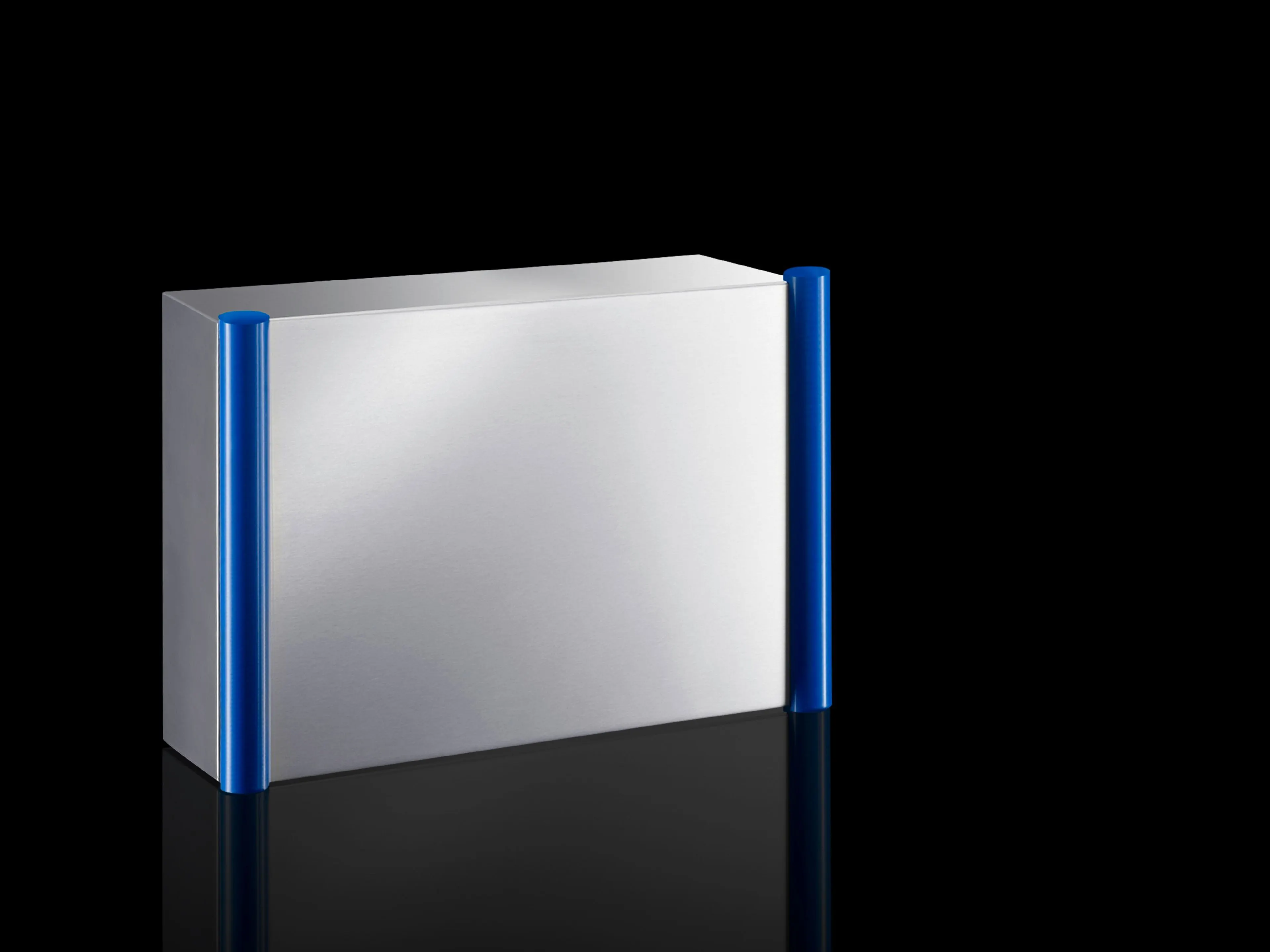

6539010 Rittal: CP Command panel housing with door, WHD: 600x400x150 mm, Stainless steel 1.4301
Article number
CP 6539.010
Design
Support arm connection Ø 130 mm
Material
Enclosure and door: Stainless steel 1.4301 (AISI 304) | Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish
Brushed, grain 400
General colour
Stainless steel
Colour
Handle strips: similar to RAL 5002
Supply includes
Enclosure of all-round solid construction | Cut-out and reinforcement for support arm system CP 40 stainless steel | Fastener with guide plate | Door with sealing frame and side handle strips | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 400 mm | Depth: 150 mm
IP protection category to IEC 60 529
IP 66
Protection category NEMA
NEMA 12
Note
The support arm connection and door hinge may be swapped over by rotating the enclosure
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Weight/pack
12.1 kg
Customs tariff number
94032080
EAN
4028177220393
ETIM 9
EC002504
ECLASS 8.0
27180505
Product description
CP Command panel housing with door, WHD: 600x400x150 mm, Stainless steel 1.4301
Stainless steel construction with 1.4301 (AISI 304) offers outstanding corrosion resistance, extending service life in washdown environments and reducing replacement costs in food processing and chemical processing facilities. This translates to lower maintenance interruptions and more up-time for critical automation panels. IP66 ingress protection combined with NEMA 12 compliance provides robust dust and water jet resistance, enabling reliable operation in dusty production lines and splash-prone washdown zones, ultimately boosting plant productivity. The door with a sealing frame and blue food-grade handle strips ensures sanitation-friendly handling and easier cleaning without compromising enclosure integrity, which supports regulatory compliance in hygiene-sensitive industries. The 600x400x150 mm WHD provides a compact yet ample mounting space, while CP40 stainless steel reinforcement and cut-outs simplify modular installations and future expansion. A reversible door/hinge option adds installation flexibility in tight layouts, minimizing retrofit costs. Weight of 12.1 kg per pack ensures manageable on-site handling without sacrificing rigidity. This enclosure is well-suited for packaging lines, process automation, and laboratory environments requiring robust protection and long-term reliability.
Get a Quick Quote for a Rittal 6539010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6539010?
Enquire Now
FAQs
The CP 6539.010 ships with cut-out and reinforcement for the CP40 stainless steel support arm system, enabling secure mounting and straightforward integration into existing CP40 frameworks. This compatibility reduces on-site adaptation time, supports scalable layouts, and keeps cable routing clean and accessible, which minimizes commissioning time and startup risk in automation projects.
IP66 and NEMA 12 ratings provide high ingress protection against dust, water jets, and non-corrosive contaminants. This combination ensures enclosure integrity in washdown areas and dusty environments, reducing unplanned downtime, extending component life, and maintaining equipment performance in harsh manufacturing settings.
Yes. The enclosure uses stainless steel 1.4301 (AISI 304) with food-grade blue handle strips, designed for frequent cleaning. The IP66/NEMA 12 protection and sealed frame further support hygiene standards and reliable operation in food processing lines and packaging environments, where cleanliness and corrosion resistance are critical.
Key advantages include a robust sealing frame for easy sanitization, a reversible door/hinge option for flexible mounting, and CP40 reinforcement for modular expansion. The 600x400x150 mm footprint fits compact spaces, while the 12.1 kg weight per pack balances handleability with rigidity, enabling faster assembly, reduced maintenance time, and improved lifecycle cost management.
Important specs include dimensions width 600 mm, height 400 mm, depth 150 mm; material stainless steel 1.4301; IP66 protection; NEMA 12 compatibility; supply contents (enclosure, reinforcement for CP40, fasteners, door with sealing frame, handle strips, lock); weight 12.1 kg per pack; and the note that the support arm connection and door hinge can be swapped by rotating the enclosure for installation flexibility.
