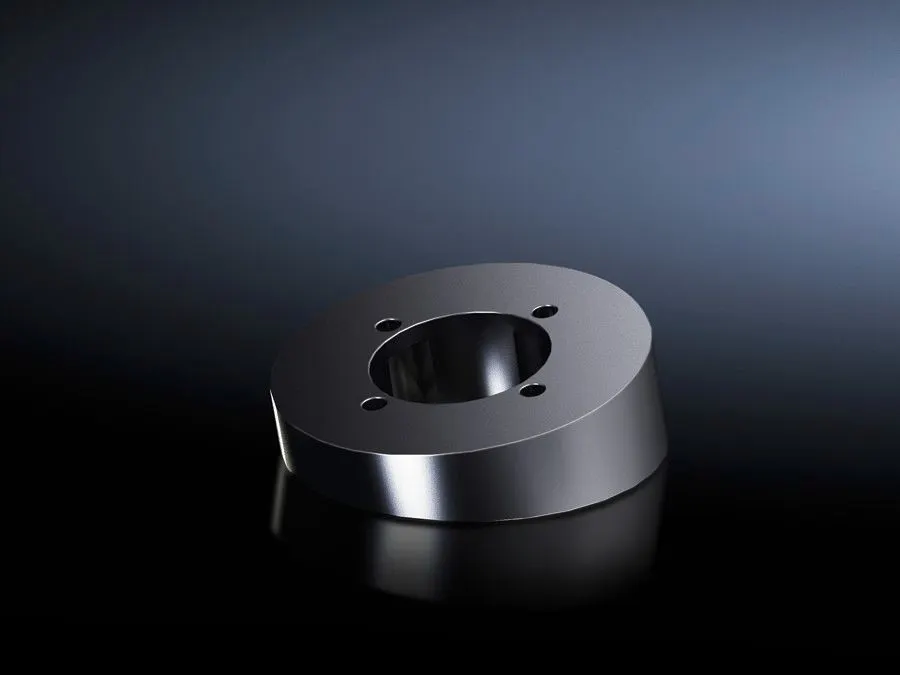

Rittal CP 6664.100 CP Tilting adaptor 10° - IP66
Part Number: 6664100
Manufacturer
Rittal
Part number
6664100
Alt Part Number
CP 6664.100
Quick Summary
Rittal CP Tilting adaptor 10° enables quick tilt mounting for CP 40 enclosures in industrial control panels. Engineers often struggle with restricted interior access and awkward cable routing in compact installations, leading to longer downtime. This part delivers IP66 protection for harsh environments, uses stainless steel 1.4305 for corrosion resistance, and is Rifid compliant for asset traceability. Built to integrate with the CP system, it supports straightforward installation and reliable performance. By standardizing tilt capability within CP infrastructure, it reduces maintenance time, minimizes cable contention, and enhances long-term reliability across industrial automation projects. It also aligns with CP enclosure design workflows, improving procurement and installation efficiency.
Product Information
Extended Description
6664100 Rittal: CP Tilting adaptor 10°, CP 40, stainless steel, 1.4305
Article number
CP 6664.100
Design
Tilting adaptor 10°
Material
Stainless steel 1.4305 (AISI 303)
IP protection category to IEC 60 529
IP 66 to IEC 60 529, 2014-09
Rifid y/n
Yes
Packs of
1 pc(s).
Weight/pack
0.7 kg
Customs tariff number
73269098
EAN
4028177195066
ETIM 9
EC000882
ECLASS 8.0
27400556
Product description
CP Tilting adaptor 10°, CP 40, stainless steel, 1.4305
Tilting adaptor design 10° provides enhanced wiring access and serviceability in CP 40 cabinets, reducing installation time and downtime. Business impact: faster wiring, easier maintenance, lower labor costs; application: control panels in manufacturing lines. Stainless steel 1.4305 ensures corrosion resistance in harsh environments, extending cabinet life and reducing replacement frequency. Business impact: durability, lower total cost of ownership; application: outdoor or humid facilities. IP66 protection to IEC 60 529 delivers rugged sealing against dust and water ingress, supporting compliance in demanding industrial spaces. Business impact: safer operation, fewer weather-related failures; application: outdoor enclosures and washdown areas. Compatibility with CP system and CP 40 modules simplifies retrofits and new builds, lowering design complexity and procurement lead times. Business impact: streamlined installation and reduced engineering risk; application: modernization projects. Rifid compliance adds traceability for asset management, aiding audits and maintenance planning. Business impact: better inventory control and warranty support; application: large-scale automation deployments. Packaged as 1 piece per pack at approximately 0.7 kg, it enables straightforward logistics and stocking. Business impact: inventory efficiency and reliable delivery for project timelines; application: supplier-managed cabinet components.
Get a Quick Quote for a Rittal 6664100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6664100?
Enquire Now
FAQs
The CP 6664.100 Tilting adaptor is designed to integrate with Rittal CP system enclosures, specifically CP 40 modules. It provides a 10° tilt to CP enclosures, easing access for wiring and maintenance. For retrofits, ensure mounting frames align with standard CP mounting geometry and verify IP66 protection remains intact after installation.
IP66 protection means the adaptor is dust-tight and protected against powerful water jets, safeguarding internal components during washdown and in dusty manufacturing areas. This reduces risk of moisture ingress, supports compliance with harsh-environment standards, and minimizes downtime due to environmental exposure.
Yes. The CP Tilting adaptor 10° is designed for CP 40 compatibility and mounts onto standard CP frames. Retrofit typically involves confirming mounting hole alignment and ensuring the tilt mechanism clears adjacent components. The result is a straightforward upgrade that preserves existing cabinet integrity while unlocking easier access.
Begin by verifying CP 40 compatibility and IP66 integrity of the enclosure. Align the adaptor with standard CP mounting points, secure with appropriate fasteners, and verify tilt angle settles at 10°. Finally, re-route cables to take advantage of improved access and test for proper enclosure sealing and clearance around installed cables.
The adaptor reduces service time by improving wiring access and shortening maintenance windows, which lowers labor costs. Its stainless steel 1.4305 construction and IP66 rating extend cabinet life, reducing replacement and downtime in harsh environments. Overall, projects benefit from faster commissioning, lower lifecycle costs, and improved equipment reliability.
