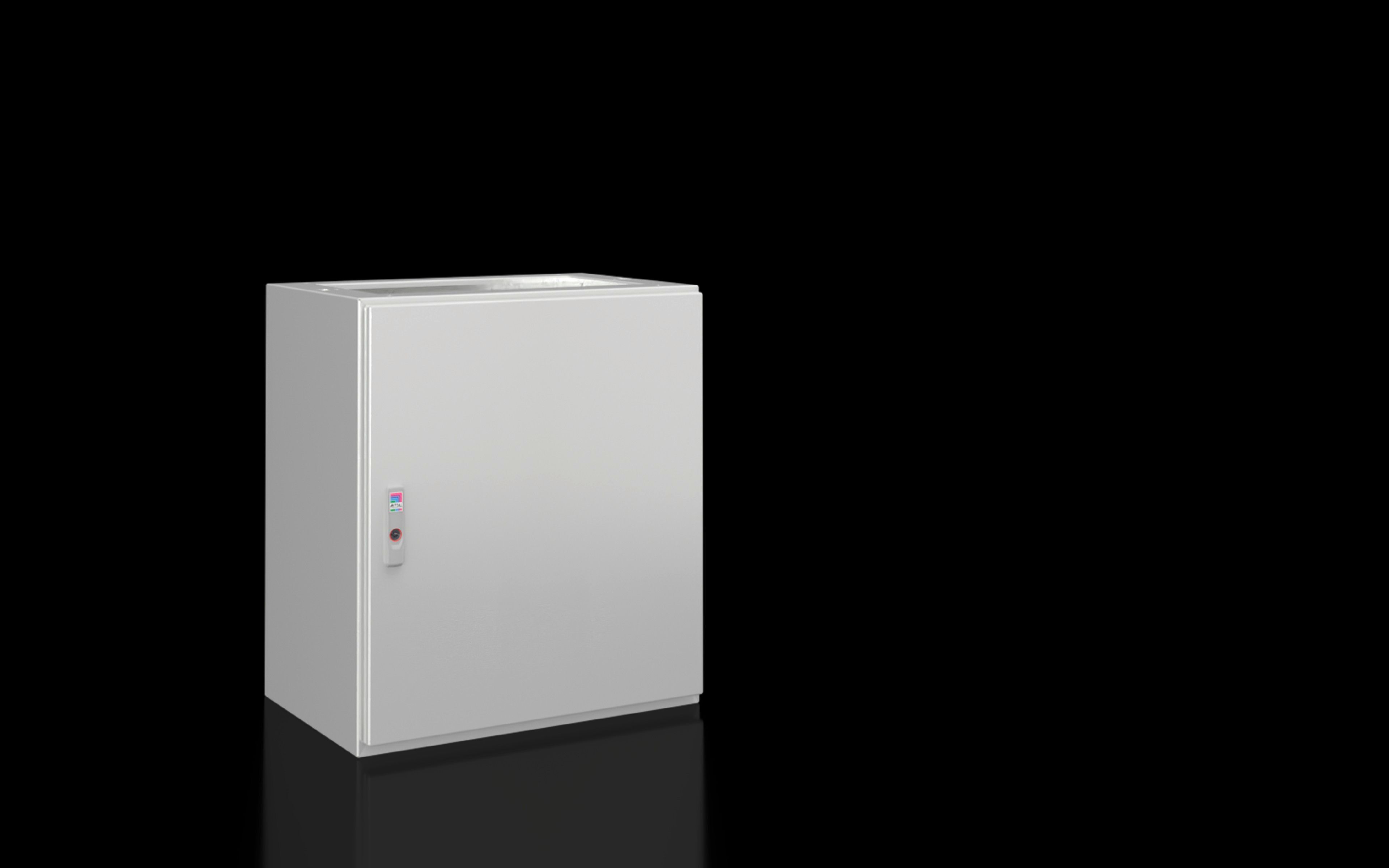

Rittal CX 6700.000 Pedestal Enclosure - IP55 IK10
Part Number: 6700000
Manufacturer
Rittal
Part number
6700000
Alt Part Number
CX 6700.000
Quick Summary
Rittal CX 6700.000 pedestal enclosure is a robust pedestal console system for reliable control panels on industrial lines. Engineers often struggle with fit, sealing and secure access in tight spaces. With IP55 protection and IK10 impact resistance, plus CE-compliance, it meets essential safety and regulatory requirements. Designed for seamless mounting plate compatibility and straightforward gland routing, it accelerates installation, reduces downtime, and supports scalable automation projects.
Product Information
Extended Description
6700000 Rittal: CX console system, pedestal, WxHxD: 600x675x400 mm, sheet steel
Article number
CX 6700.000
Design
Pedestal
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 2.5 mm
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double-door at front, with 3-point locking system | Mounting plate | Gland plates | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 675 mm | Depth: 400 mm
Dimensions mounting plate (W x H)
520 mm x 625 mm
Number of doors
1
Door opening angle
130°
IK Code
IK10
Note
A cover plate is required to seal the pedestal
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Number of locks
1
Lock version
3-point lock system
Lock insert
3 mm double-bit
Lock
Lock version: 3-point lock system | Number of locks: 1 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
33 kg
Customs tariff number
94032080
EAN
4028177983595
ETIM 9
EC000784
Product description
CX console system, pedestal, WxHxD: 600x675x400 mm, sheet steel
Feature: Pedestal console design with a compact footprint (WxHxD: 600x675x400 mm) supports efficient space utilization. Business Impact: Enables tidy, accessible wiring and a uniform appearance in control rooms. Application: Ideal for machine builders and panel builders upgrading existing installations. Feature: Sheet steel construction with PU-sealed door and mounting plate adds rigidity and environmental protection. Business Impact: Delivers durable protection against dust, moisture and vibration, reducing maintenance. Application: Harsh factory floors and process automation cabinets. Feature: IP55 protection and IK10 impact resistance provide robust safeguarding. Business Impact: Improves uptime by guarding critical electronics from dust ingress and impacts. Application: Industrial environments with moving machinery and crowded cable routes. Feature: 3-point locking system enhances security and tamper resistance. Business Impact: Safeguards critical control components and ensures access control. Application: Federal and automotive manufacturing lines with strict access policies. Feature: Included gland plates simplify cable routing and reduce field modifications. Business Impact: Speeds up assembly and ensures clean, compliant cable management. Application: Power, signal, and data cabling in control panels. Feature: Mounting plate sized 520x625 mm and single door with 130° opening support flexible installation. Business Impact: Facilitates equipment mounting and service access without rearranging enclosures. Application: New builds and retrofits in tight cabinet spaces. Feature: Aesthetics and protection through RAL 7035 finish and zinc-plated mounting plate. Business Impact: Maintains consistent appearance and corrosion resistance over time. Application: OEM panels and warehouse automation installations.
Get a Quick Quote for a Rittal 6700000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6700000?
Enquire Now
FAQs
CX 6700.000 uses a mounting plate sized 520x625 mm and features a single door with a 130° opening. It ships with gland plates and a 3-point locking system, simplifying retrofits or new builds. Ensure the enclosure footprint and the mounting plate align with your panel design, and account for the top opening if you plan to seal it later.
The CX 6700.000 pedestal offers IP55 protection and IK10 impact resistance, protecting internal components from dust ingress and mechanical impacts. It uses a 3-point lock system for security and includes CE compliance. The enclosure is built from sheet steel and designed for reliable operation in demanding industrial environments, aligning with common European electrical standards.
Yes. The combination of IP55 protection and IK10 resilience makes the CX 6700.000 suitable for heavy industry and environments with dust, splash potential, and physical impact. The powder-coated exterior adds abrasion resistance, while the metal construction supports long service life in factory floors, machine cells, and process lines.
The pedestal enclosure reduces downtime through robust protection, tamper-resistant locking, and durable sheet steel construction. Maintenance needs are minimized due to integrated gland plates that simplify cable routing and a sealed design that resists moisture ingress. Over time, this translates to fewer cabinet repairs, quicker upgrades, and lower lifecycle costs.
A cover plate is required to seal the pedestal as noted in the product specification. This ensures IP 55 integrity and an enclosure that protects internal components from dust and moisture. Plan for the cover plate during initial installs or retrofits to maintain sealing performance and compliance.
