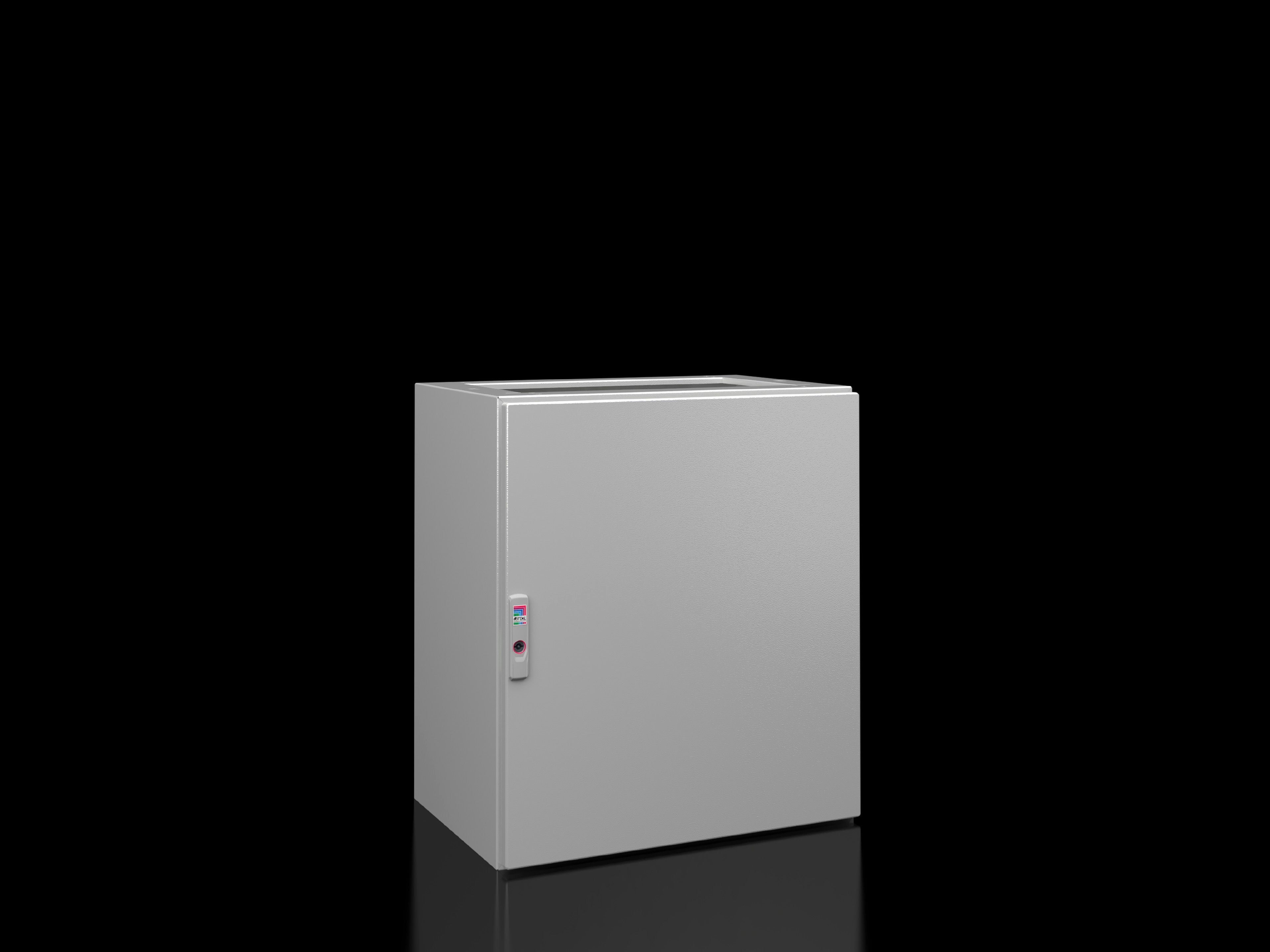

Rittal TP 6700.600 TopConsole Pedestal - IP55
Part Number: 6700600
Manufacturer
Rittal
Part number
6700600
Alt Part Number
TP 6700.600
Quick Summary
TP 6700.600 TopConsole pedestal is a rugged, space-efficient enclosure solution for industrial control panels in automated production lines. Engineers often struggle with cable management and maintaining a uniform appearance across differing widths and depths. IP 55 protection and NEMA 12 compatibility provide reliable dust and moisture resistance in harsh factory settings, while sheet steel construction with a two-part gland plate seal keeps wiring tidy and accessible. The AX lock plate delivers a consistent front view across doors, streamlining access control and serviceability. This system complements Rittal’s enclosure family, enabling scalable panel builds and faster, compliant installations across multiple machines.
Product Information
Extended Description
6700600 Rittal: TP TopConsole system, pedestal, WHD: 600x675x400 mm, Sheet steel
Article number
TP 6700.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double door with locking rod (with depth 400 mm at the front, with depth 500 mm at the front and rear) | Mounting plate | Gland plates
Dimensions mounting plate (W x H)
499 mm x 625 mm
Number of doors
1
Dimensions
Width:Â 600 mm | Height:Â 675 mm | Depth:Â 400 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Note
Positioning slide VX 5051.172 can be used as a mounting aid for base/plinth system VX in its new design
Packs of
1 pc(s).
Weight/pack
33 kg
Customs tariff number
94032080
EAN
4028177959842
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, pedestal, WHD: 600x675x400 mm, Sheet steel
Feature: IP 55 protection and sheet steel construction with PU sealing. Business Impact: Ensures reliable operation in dusty and moist environments, reducing field failures and maintenance costs. Application: Ideal for harsh factory floors and process control cabinets where durability and protection are critical. Feature: AX lock plate for a uniform appearance. Business Impact: Improves aesthetics and standardization, decreasing customization time and helping regulatory inspections pass more smoothly. Application: Suitable for multi-door configurations in automated lines requiring consistent panel fronts. Feature: Two-part gland plates included. Business Impact: Speeds up installation and simplifies cable routing, cutting wiring time and error rates. Application: Great for complex feeds and future expansion in control cabinets. Feature: Dimensions and mounting compatibility (W x H 600 x 675 mm; mounting plate 499 x 625 mm). Business Impact: Ensures fit with standard VX base systems and pre-drilled mounting patterns, reducing retrofit costs. Application: Clear choice for scalable machine builds and modular panel assemblies. Feature: Open-top supply and single-door design with a front locking rod option. Business Impact: Facilitates quick access for commissioning and maintenance while maintaining enclosure integrity. Application: Fits single-door machine panels in line with Rittal TopConsole families for modular automation projects.
Get a Quick Quote for a Rittal 6700600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6700600?
Enquire Now
FAQs
The TP 6700.600 TopConsole pedestal is designed to work with standard VX base systems and a mounting plate sized at 499 x 625 mm. It features a 600 x 675 x 400 mm frame, one door, and includes two-part gland plates for straightforward cable routing, enabling a quick, tool-efficient installation on existing or new frames.
IP55 indicates protection against limited dust ingress and water jets from any direction, while NEMA 12 specifies enclosure protection for dust and non-corrosive liquids. Together they ensure reliable performance in dusty or damp factory environments, reducing contamination risk and protecting sensitive electronics.
Yes, the IP55 rating provides dust and water spray protection suitable for damp factory floors and semi-exposed locations, while the robust sheet steel construction and polyurethane sealing support long-term reliability in challenging environments typical of industrial automation applications.
Absolutely. The system includes two-part gland plates and an AX lock plate for a uniform front while simplifying cable entry/exit. This setup reduces wiring time, improves organization, and makes future maintenance or reconfiguration straightforward without compromising enclosure integrity.
Standardization across widths and depths, combined with quick-install gland plates and a uniform appearance, lowers commissioning time, reduces field errors, and minimizes maintenance downtime. Over multiple machines, this translates to faster project delivery, lower labor costs, and a shorter path to operating efficiency.
