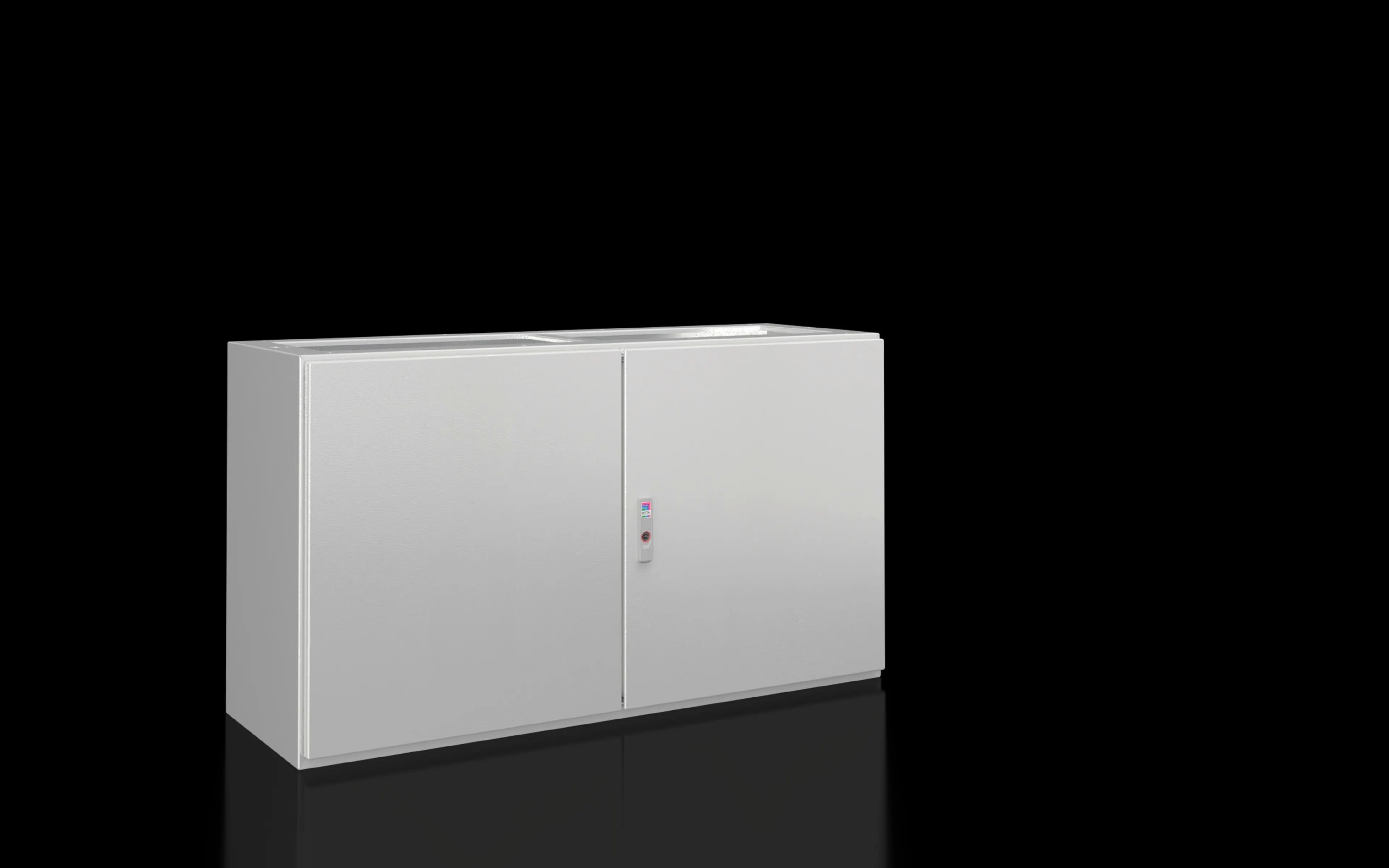

Rittal CX 6702.000 Pedestal - IP55, IK10 Enclosure

Construction and protection: The CX 6702.000 uses a sheet steel enclosure (1.5 mm), a 2.0 mm door, and a 2.5 mm mounting plate, with a textured powder-coated exterior and zinc-plated mounting plate. This translates to superior mechanical strength and corrosion resistance, extending service life in harsh environments. Application: ideal for industrial control panels in manufacturing and process automation. Protection and durability: IP55 protection with IK10 impact resistance shields sensitive electronics from dust, splashes, and rough handling. Benefit: reduced downtime and lower maintenance costs on busy factory floors. Security and access: A 3-point locking system (3 mm double-bit) provides secure front access, simplifying maintenance while ensuring controlled entry. This supports safety compliance and minimizes tampering risk. Cable management and installation: Two-part gland plates are included to enable straightforward cable routing, and a cover plate seals the pedestal when required. This cuts field wiring time and improves wiring organization in dense installations. Fit and finish: The pedestal measures 1,200 x 675 x 400 mm with a mounting plate of 1,120 x 625 mm and two doors that open to 130 degrees. A 57.1 kg per-pack weight supports stable installation and alignment with standard 19-inch equipment. Finish is RAL 7035 with textured coating for a durable look and easy maintenance.
