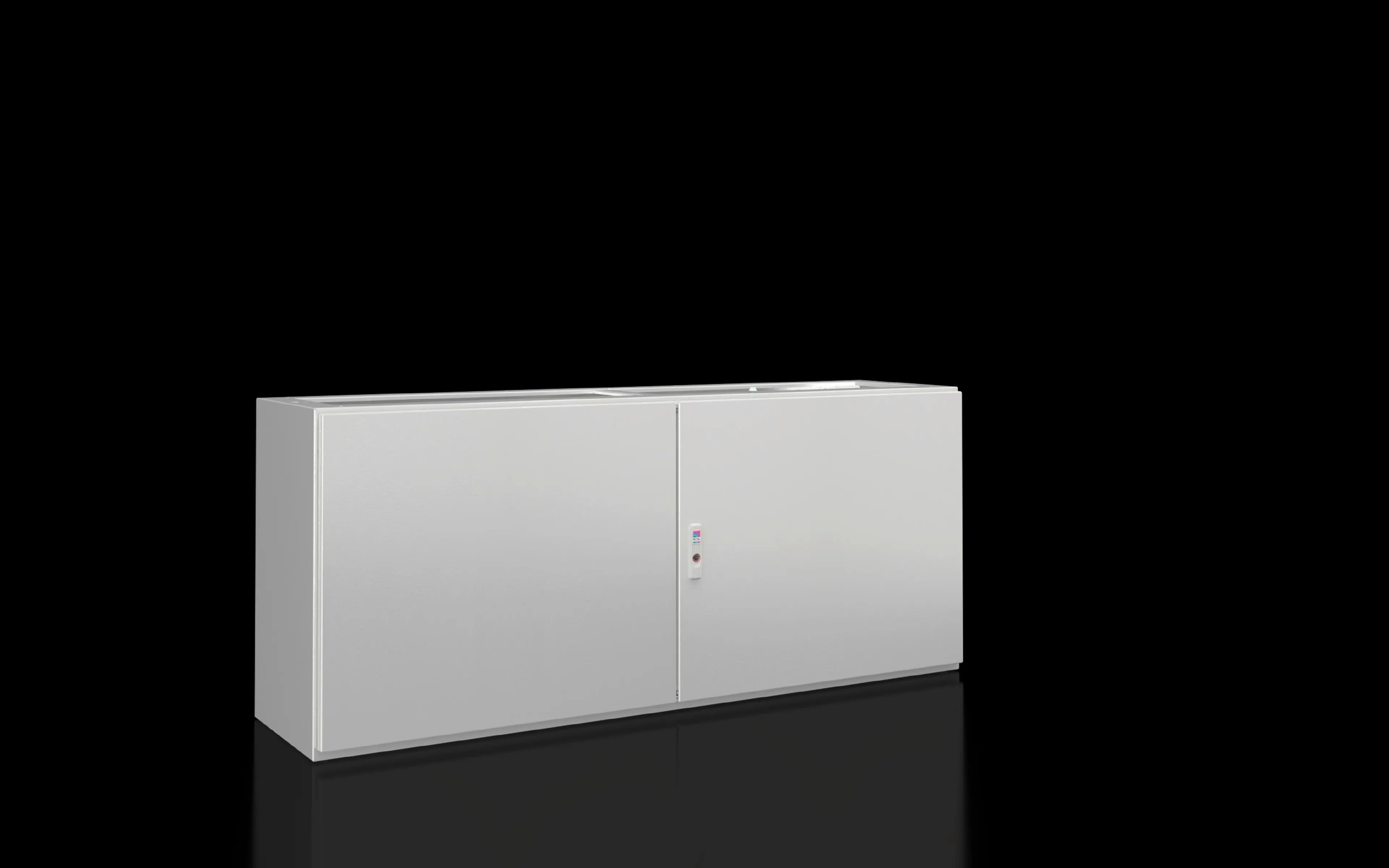

Rittal CX 6703000 pedestal - CX system with IK10 IP55
Part Number: 6703000
Manufacturer
Rittal
Part number
6703000
Alt Part Number
CX 6703.000
Quick Summary
Rittal CX pedestal enables robust pedestal enclosures for control cabinets in factory automation and panel assemblies. Engineers often wrestle with cable routing, access, and secure mounting in confined spaces. The CX 6703.000 delivers IK10 impact protection and IP55 enclosure rating, ensuring durability in dusty and impact-prone environments, while the dip-coated finish and zinc-plated mounting plate boost long-term reliability. The 3-point locking system provides secure access for maintenance crews, and the included gland plates simplify cable routing from the top or front. As part of Rittal's enclosures and electrical infrastructure portfolio, it supports scalable, compliant, and cost-efficient panel solutions across manufacturing and processing environments.
Product Information
Extended Description
6703000 Rittal: CX console system, pedestal, WxHxD: 1600x675x400 mm, sheet steel
Article number
CX 6703.000
Design
Pedestal
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 2.5 mm
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double-door at front, with 3-point locking system | Mounting plate | Gland plates | Lock: 3 mm double-bit
Dimensions
Width:Â 1,600 mm | Height:Â 675 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
1,520 mm x 625 mm
Number of doors
2
Door opening angle
130°
IK Code
IK10
Note
A cover plate is required to seal the pedestal
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Number of locks
1
Lock version
3-point lock system
Lock insert
3 mm double-bit
Lock
Lock version:Â 3-point lock system | Number of locks:Â 1 | Lock insert:Â 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
76.5 kg
Customs tariff number
94032080
EAN
4028177983779
ETIM 9
EC000784
Product description
CX console system, pedestal, WxHxD: 1600x675x400 mm, sheet steel
Feature: Robust sheet steel construction with a 1.5 mm enclosure and 2.0 mm door, plus a 2.5 mm mounting plate. Business Impact: Delivers durable protection against dust, impacts, and wear in harsh production environments, reducing downtime and replacement costs. Application: Ideal for factory control panels and automation cabinets where long-term reliability is critical. Feature: IP55 protection and IK10 impact resistance. Business Impact: Provides reliable dust ingress protection and high-impact defense, enabling safe operation on busy shop floors and in unmanned duty cycles. Application: Suitable for outdoor-adjacent or dust-prone areas in process automation. Feature: Two-door design with a 3-point lock system. Business Impact: Enhances security while simplifying routine maintenance and component access, streamlining service windows. Application: Critical control panels and safety interlocks in manufacturing lines. Feature: Supplied gland plates and mounting plate included. Business Impact: Reduces installation time and现场 wiring complexity by offering ready-to-route cable management and mounting compatibility. Application: Quick, scalable panel builds for multi-sensor and actuator deployments. Feature: Precise dimensions and mounting compatibility (WxHxD 1600x675x400 mm; mounting plate 1520x625 mm). Business Impact: Ensures fit with standard enclosures and mounting footprints, minimizing custom fabrication. Application: System integrators achieving fast turn-key installations in machine builds. Feature: Finish and materials (dip-coated enclosure, powder-coated exterior, zinc-plated mounting plate). Business Impact: Delivers corrosion resistance and a consistent, professional appearance across facilities. Application: High-visibility production environments requiring durable aesthetics and longevity.
Get a Quick Quote for a Rittal 6703000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6703000?
Enquire Now
FAQs
Plan for a secure top or front gland plate routing path using the included gland plates, and align the enclosure mounting with the 1520x625 mm mounting plate. Ensure a dedicated space for the 1600x675x400 mm pedestal, accounting for door swing to 130 degrees and access to the 3-point lock. Consider sealing needs with a cover plate as recommended.
Yes. The CX 6703000 uses a mounting plate rated at 1520x625 mm, designed to accommodate common panel cutouts. Gland plates are included with the supply, enabling straightforward cable routing from the top and/or front. This compatibility reduces custom fabrication and speeds up installation on existing frames.
The pedestal provides IK10 impact protection and IP55 sealing, backed by sheet steel construction and a powder-coated exterior. This combination supports durable operation in dusty, high-traffic environments while protecting internal components. The two-door design with a 3-point locking system further enhances security and reliability in harsh manufacturing settings.
The 3-point lock distributes securing force across the door, offering robust protection against tampering and accidental opening. For maintenance, it provides consistent, reliable access without compromising enclosure integrity. This is especially valuable in high-volume environments where quick yet secure access to control panels is routine.
Investing in the CX 6703000 pedestal delivers long-term cost savings through durable sheet steel construction, IP55/IK10 protection, and a design that minimizes installation time thanks to included gland plates and a compatible mounting plate. Reduced downtime, faster servicing, and a stable, professional enclosure heighten overall equipment reliability and maintainability in production lines.
