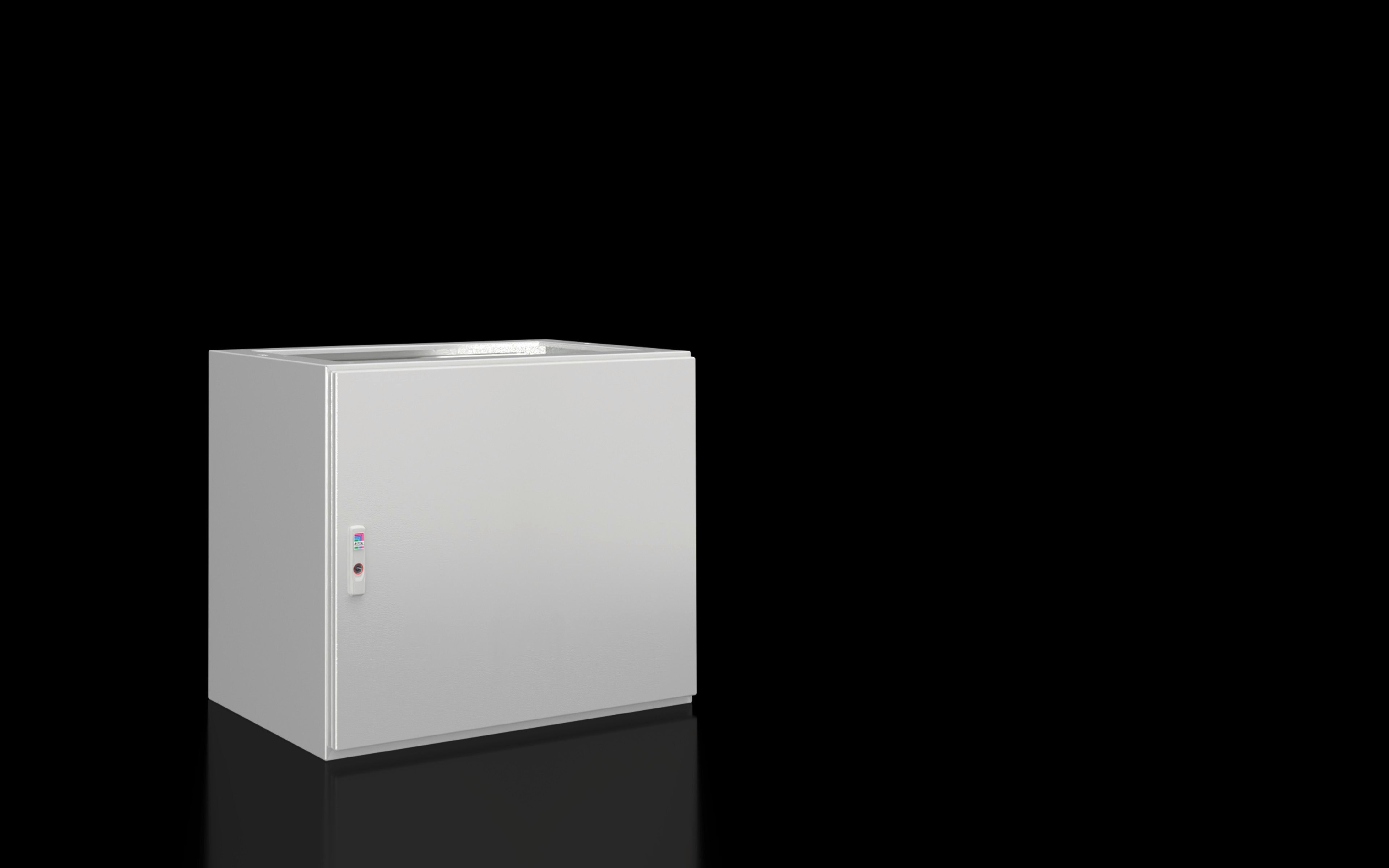

Rittal 6705000 CX pedestal console system - IK10
Part Number: 6705000
Manufacturer
Rittal
Part number
6705000
Alt Part Number
CX 6705.000
Quick Summary
Rittal CX pedestal is a versatile console framework for industrial control panels in switchgear installations. Engineers often struggle with cable routing and maintaining a uniform appearance across enclosures. It delivers IK10 impact resistance and IP55 sealing for harsh environments, aligning with industry standards. Designed for quick integration with standard mounting plates and AX lock plates, it helps control-panel projects reduce install time, cut wiring errors, and preserve branding across the line.
Product Information
Extended Description
6705000 Rittal: CX console system, pedestal, WxHxD: 800x675x500 mm, sheet steel
Article number
CX 6705.000
Design
Pedestal
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 2.5 mm
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double-door at front, with 3-point locking system | Mounting plate | Gland plates | Lock: 3 mm double-bit
Dimensions
Width: 800 mm | Height: 675 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
720 mm x 625 mm
Number of doors
1
Door opening angle
130°
IK Code
IK10
Note
A cover plate is required to seal the pedestal
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Number of locks
1
Lock version
3-point lock system
Lock insert
3 mm double-bit
Lock
Lock version: 3-point lock system | Number of locks: 1 | Lock insert: 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
42.9 kg
Customs tariff number
94032080
EAN
4028177983755
ETIM 9
EC000784
Product description
CX console system, pedestal, WxHxD: 800x675x500 mm, sheet steel
Feature: Pedestal design with WxHxD of 800x675x500 mm and a single 130° door opening. Business Impact: Provides ample internal space for components while enabling easy access during maintenance. Application: Ideal for compact control panels in switchgear and automation cabinets. The CX pedestal accommodates standard components without custom fabrication, improving installation predictability and reducing project lead times. Feature: Sheet steel construction with 1.5 mm enclosure, 2.0 mm door, and 2.5 mm mounting plate. Business Impact: Delivers robust mechanical strength and long-term durability in industrial environments, lowering replacement costs. Application: Suitable for harsh factory floors and outdoor installations where corrosion and impact resistance matter. Feature: IP55 protection and IK10 impact rating with a 3-point locking system. Business Impact: Ensures personnel safety and tamper resistance while maintaining environmental sealing, reducing risk in dusty or wet areas. Application: Compliance-driven applications in automation and process control. Feature: Included gland plates and mounting plate (720x625 mm) for straightforward cable routing and mounting. Business Impact: Speeds up wiring, enhances organization, and minimizes cabling errors. Application: Installation in control panels and rack-integrated systems. Feature: A cover plate is required to seal the pedestal. Business Impact: Maintains enclosure integrity and ingress protection with a simple, reliable seal. Application: Final assembly step in any CX pedestal installation.
Get a Quick Quote for a Rittal 6705000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6705000?
Enquire Now
FAQs
The CX 6705.000 pedestal ships with a mounting plate sized 720x625 mm and gland plates, designed to fit standard enclosure components. This compatibility reduces custom fabrication, speeds up assembly, and simplifies future upgrades without compromising enclosure integrity or front aesthetics.
The CX pedestal features IP55 protection against dust and water ingress and IK10 impact resistance, making it suitable for demanding environments such as manufacturing floors and switchgear rooms. These ratings support regulatory compliance and reduce risk of environmental damage to internal components.
Yes. The CX pedestal is designed to maintain a consistent exterior when paired with AX lock plates, delivering a uniform front appearance across the enclosure family. This is advantageous for branding consistency and a professional, standardized look in control-room installations.
Plan for cable entry via gland plates supplied with the unit; the pedestal offers a 130° door opening for accessible wiring and service access. The enclosure supports straightforward cable routing to the mounting plate area, helping to minimize cabling conflicts during panel assembly.
The CX pedestal reduces wiring errors and installation time through its integrated gland plates and standard mounting plate, lowering labor costs. Its robust sheet-steel construction and protective ratings extend service life in harsh environments, decreasing maintenance and replacement needs over the project lifecycle.
