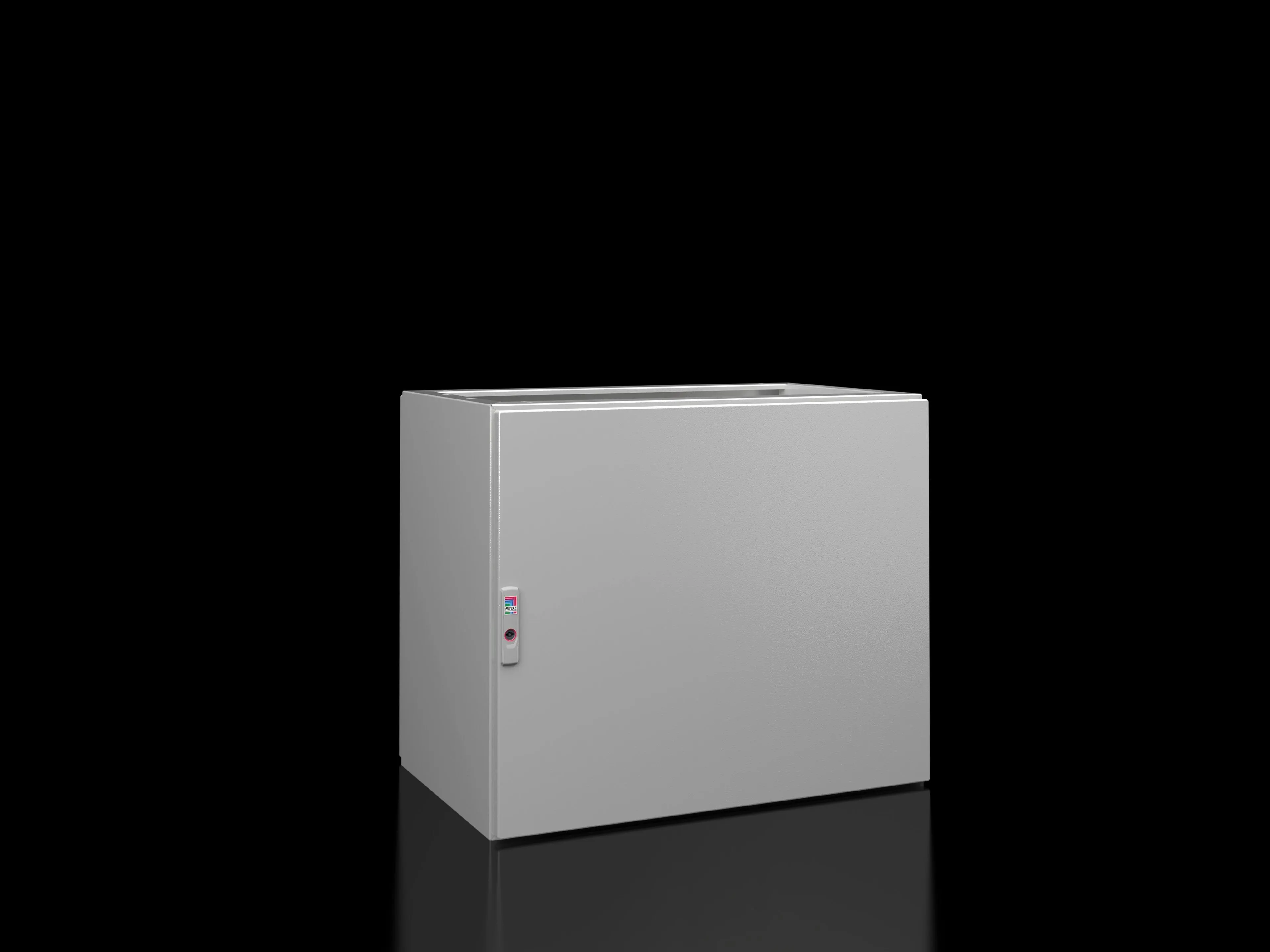

Rittal TP 6705.600 TopConsole pedestal - IP55
Part Number: 6705600
Manufacturer
Rittal
Part number
6705600
Alt Part Number
TP 6705.600
Quick Summary
The TP 6705.600 TopConsole pedestal by Rittal provides a rugged enclosure platform for industrial control panels. It addresses cable routing challenges and inconsistent finish in compact installations by offering open-top access and uniform appearance. With IP55 protection and NEMA 12 compliance, the enclosure supports reliable operation in harsh manufacturing settings. As a result, it reduces installation time and helps standardize control-room infrastructure with a durable, aesthetically consistent solution. The model incorporates a depth-variable mounting plate on a 25 mm pitch, enabling flexible retrofits. This aligns with lean assembly practices, minimizes field modifications, and supports rapid project handoffs. Ideal for panel builders, OEMs, and system integrators.
Product Information
Extended Description
6705600 Rittal: TP TopConsole system, pedestal, WHD: 800x675x500 mm, Sheet steel
Article number
TP 6705.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double door with locking rod (with depth 400 mm at the front, with depth 500 mm at the front and rear) | Mounting plate | Gland plates
Dimensions mounting plate (W x H)
699 mm x 571 mm
Number of doors
1
Dimensions
Width: 800 mm | Height: 675 mm | Depth: 500 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Note
Mounting plate, depth-variable on a 25 mm pitch pattern
Packs of
1 pc(s).
Weight/pack
52.5 kg
Customs tariff number
94032080
EAN
4028177959897
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, pedestal, WHD: 800x675x500 mm, Sheet steel
Feature: Enclosure construction uses sheet steel with a 1.5 mm body and 2.0 mm door/console cover, plus an all-round foamed-in PU seal. Business Impact: Delivers durable protection against dust/moisture while keeping maintenance costs predictable. Application: Ideal for control panels in manufacturing where reliability and surface integrity matter. Feature: AX lock plate ensures a uniform appearance; two-part gland plates are included. Business Impact: Simplifies installation, reduces field customization, and achieves a professional, consistent look across enclosures. Application: Panel installations requiring quick routing and standardized aesthetics. Feature: Depth-variable mounting plate on a 25 mm pitch pattern. Business Impact: Enables flexible retrofits and precise alignment during assembly. Application: Retrofit projects and OEM configurations where footprint adaptability is essential. Feature: Dimensions 800x675x500 mm; mounting plate 699x571 mm; 1 door; supply includes gland plates. Business Impact: Predictable footprint and easy integration with existing systems. Application: Systems with defined mounting space and standard cable routing needs. Feature: Protection ratings IP55 and NEMA 12. Business Impact: Supports operation in challenging environments without additional housing. Application: Factory floors, process lines, and electrical rooms requiring robust enclosure protection.
Get a Quick Quote for a Rittal 6705600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6705600?
Enquire Now
FAQs
To install the TP 6705.600, verify the open-top enclosure fits the required space, attach the depth-variable mounting plate on a 25 mm pitch, and align with the 699x571 mm mounting plate. Use the supplied gland plates for cable routing, secure the door with the locking rod, and verify IP55 seals are intact after assembly to maintain protection ratings.
Yes. The enclosure is rated IP55 under IEC 60529 and carries NEMA 12 protection, making it suitable for dusty and some moisture exposure in factory floors and electrical rooms. Ensure all access points close properly, seals are undamaged, and the door is correctly mounted to maintain these ratings in harsh environments.
Overall dimensions are 800 mm wide, 675 mm high, and 500 mm deep. The mounting plate measures 699 mm by 571 mm. The unit includes a single door and a 52.5 kg pack weight. With these specs, plan for a stable footprint and confirm mounting points align with existing frames or rails before installation.
The AX lock plate provides a uniform exterior appearance across multiple enclosures, reducing cosmetic variability. Included two-part gland plates simplify initial cable routing, decreasing field modifications and commissioning time. For panel builders, this means faster wiring, cleaner interiors, and a professional, repeatable look across installations.
The sheet steel construction with a durable powder-coated exterior minimizes corrosion risk and maintenance needs, while IP55/NEMA 12 protection reduces the likelihood of ingress-related downtime. Standardized dimensions and included gland plates shorten installation time, lowering labor costs and enabling quicker project handoffs for OEMs and system integrators.
