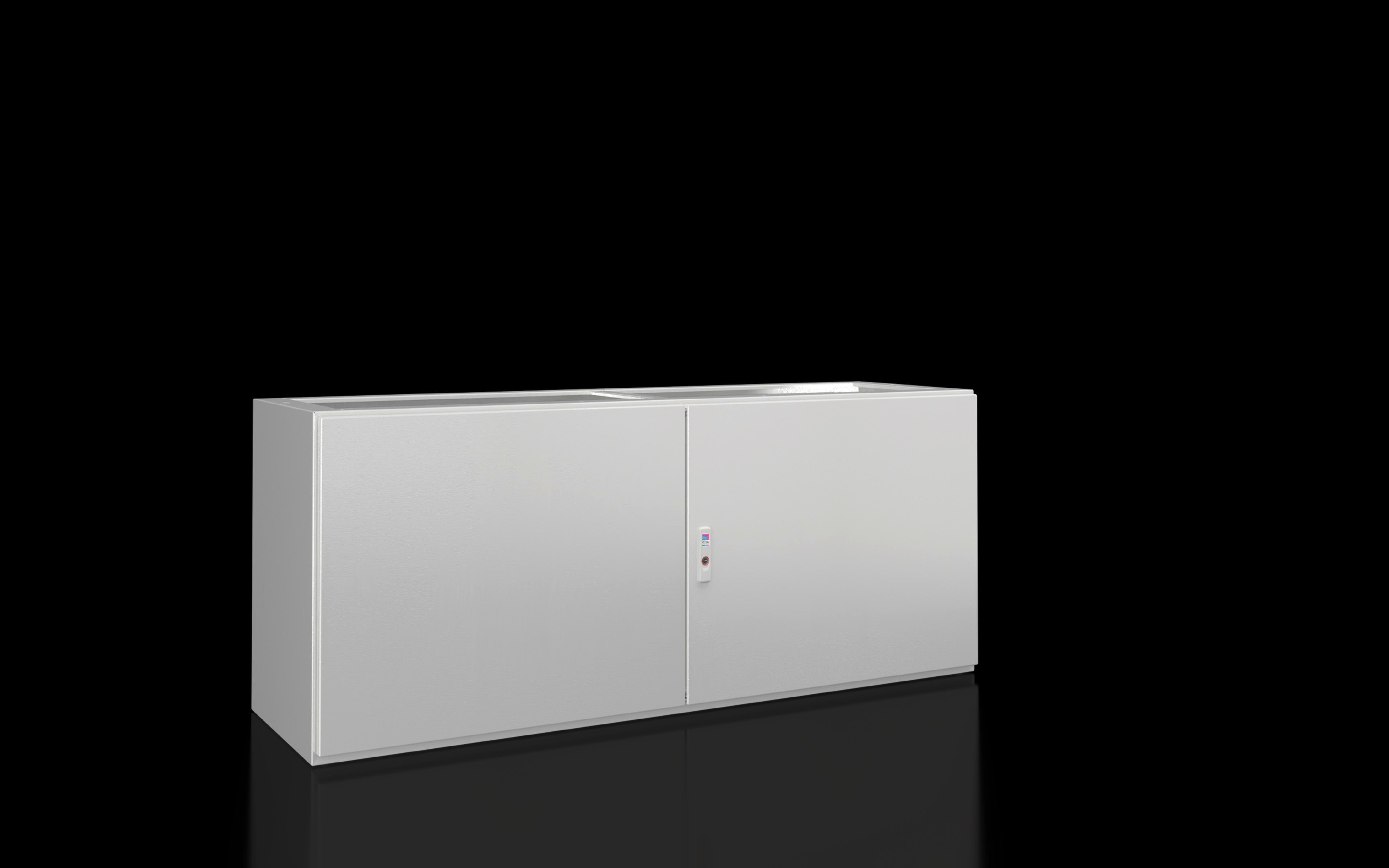

Rittal CX 6707.000 Pedestal Console System - IK10

Rugged sheet steel construction provides durable protection for sensitive electronics in harsh industrial environments. The enclosure uses 1.5 mm sheet steel for the body and 2.0 mm steel for the door, with a 2.5 mm mounting plate and a two-part PU seal to guard against dust and moisture. This combination translates into higher uptime and reduced field service on demanding manufacturing lines. Finish and appearance are designed for consistency across installations and long-term reliability. The enclosure exterior is dipcoat primed and powder-coated, while the mounting plate is zinc-plated, all in RAL 7035. This finish pairing supports standardized panel systems and reduces rework during upgrades or expansions. Security and access control are central to safe operation, provided by a three-point locking system with a 3 mm double-bit insert and a single locking point. The hardware design offers tamper resistance while enabling reliable tool-free access for authorized users. Operators experience predictable door operation and rapid maintenance cycles. Cable management and installation are streamlined by two-part gland plates included with the supply, top opening, and front doors that hinge to 130 degrees. The AX lock plate ensures a uniform appearance and helps maintain a professional, aligned look across the control panel ensemble. The pedestal is compatible with standard mounting accessories, simplifying integration with existing enclosures. Dimensions and mounting are defined: 1600 mm wide by 675 mm high by 500 mm deep, with a mounting plate measuring 1520 by 625 mm. It ships as a single-pack unit at 81 kg per pack, with clear notes that a cover plate is required for sealing. This combination supports scalable deployments and straightforward logistics across multiple lines. Operationally, CX 6707.000 supports reliable control housing for machine builders and integrators, enabling faster deployment and easier upgrades. Its robust protection, easy cable routing, and standardized components help meet industry norms while reducing total cost of ownership. In volatile manufacturing environments, this pedestal provides a resilient backbone for automation, HMI, and PLC installations.
