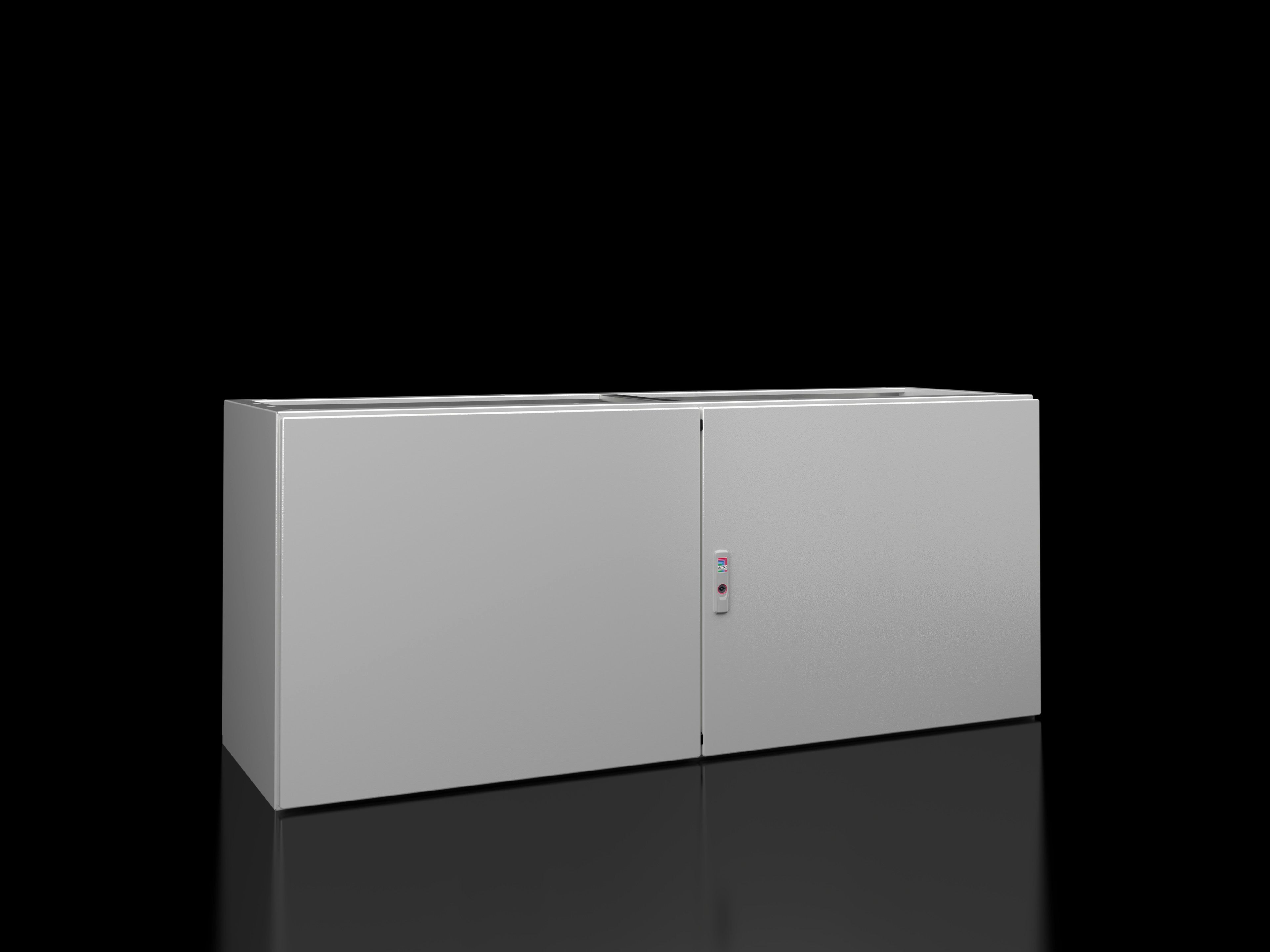

Rittal 6707600 TopConsole pedestal - IP55 enclosure
Part Number: 6707600
Manufacturer
Rittal
Part number
6707600
Alt Part Number
TP 6707.600
Quick Summary
Rittal 6707600 TopConsole pedestal is a rugged enclosure and work surface designed for control systems in industrial machinery. It combines a durable sheet-steel chassis with a 1600x675x500 mm footprint to keep wiring orderly and future-ready. Engineers often face challenges with cable routing, inconsistent appearances, and limited mounting options in tight spaces, which this solution directly addresses. With IP55 protection and NEMA 12 compliance, the TopConsole pedestal withstands dust, moisture, and harsh shop-floor conditions while maintaining a clean, uniform look thanks to the AX lock plate. The depth-variable mounting plate on a 25 mm pitch pattern simplifies customization, while included gland plates accelerate wiring and testing, delivering measurable reductions in installation time and total cost of ownership.
Product Information
Extended Description
6707600 Rittal: TP TopConsole system, pedestal, WHD: 1600x675x500 mm, Sheet steel
Article number
TP 6707.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure open at top | Door or double door with locking rod (with depth 400 mm at the front, with depth 500 mm at the front and rear) | Mounting plate | Gland plates
Dimensions mounting plate (W x H)
1,499 mm x 571 mm
Number of doors
2
Dimensions
Width:Â 1,600 mm | Height:Â 675 mm | Depth:Â 500 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Note
Mounting plate, depth-variable on a 25 mm pitch pattern
Packs of
1 pc(s).
Weight/pack
90 kg
Customs tariff number
94032080
EAN
4028177959910
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, pedestal, WHD: 1600x675x500 mm, Sheet steel
Feature: The enclosure uses sheet steel with 1.5 mm walls, and the door and console cover are 2.0 mm thick, with an all-round foamed-in PU seal. Business Impact: This rugged construction delivers durable protection for control electronics, reducing maintenance and downtime. Application: Ideal for machine builders and automation panels in demanding environments where clean cable routing matters. Feature: IP55 protection and NEMA 12 rating. Business Impact: Keeps dust, moisture, and particulates out, preserving reliability and extending service intervals. Application: Suitable for factory floors, conveyors, and enclosed workstations. Feature: Surface finish is dipcoat-primed with powder-coated exterior; mounting plate is zinc-plated. Business Impact: Enhanced corrosion resistance and long-term color stability support durable, compliant installations. Application: Environments requiring robust exterior finishes and easy brand-color matching. Feature: Dimensions 1600x675x500 mm with mounting plate 1499x571 mm; supply includes two doors and gland plates. Business Impact: Provides a flexible, top-open enclosure with straightforward cabling and quick access for maintenance. Application: Ideal for modular automation layouts and scalable control cabinets. Feature: Weight per pack 90 kg; depth-variable mounting on a 25 mm pitch; AX lock plate yields a uniform appearance. Business Impact: Simplifies procurement, alignment with existing racks, and fast installation with a professional, consistent look. Application: Best suited for multi-panel installations in production facilities.
Get a Quick Quote for a Rittal 6707600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6707600?
Enquire Now
FAQs
TP 6707.600 ships with a mounting plate sized 1,499 x 571 mm and gland plates; the mounting plate depth is variable on a 25 mm pitch, enabling flexible positioning. The unit features two doors and an open top, simplifying cable routing and panel integration. This makes it straightforward to align with existing racks and enclosure layouts, reducing commissioning time.
The enclosure is sheet steel with 1.5 mm walls, doors and console cover are 2.0 mm thick, and it includes an all-round PU seal. It is rated IP55 and NEMA 12, providing robust protection against dust and moisture. The surface is dipcoat-primed and powder-coated outside, with a zinc-plated mounting plate for durability in harsh environments.
Yes. The combination of IP55 protection, NEMA 12 rating, and a robust sheet-steel chassis makes it well-suited for factory floors, production lines, and demanding automation applications. The AX lock plate delivers a uniform appearance, while the depth-variable mounting and gland plates support reliable cabling and modular expansion.
Key classifications include ETIM 9 and ETIM 8 EC000784, and ECLASS 8.0 27180504. It is rated IP55 according to IEC 60529 and carries NEMA 12 protection. The product information also lists the EAN 4028177959910 and customs tariff 94032080, supporting accurate regulatory and logistics handling.
The depth-variable mounting on a 25 mm pitch, combined with the two-part gland plates and included mounting plate, reduces field modifications and enables quicker cable routing. The uniform AX lock plate improves front aesthetics and reduces rework for panel upgrades. Overall, expect shorter installation times, easier future expansions, and lower total cost of ownership in automated line projects.
