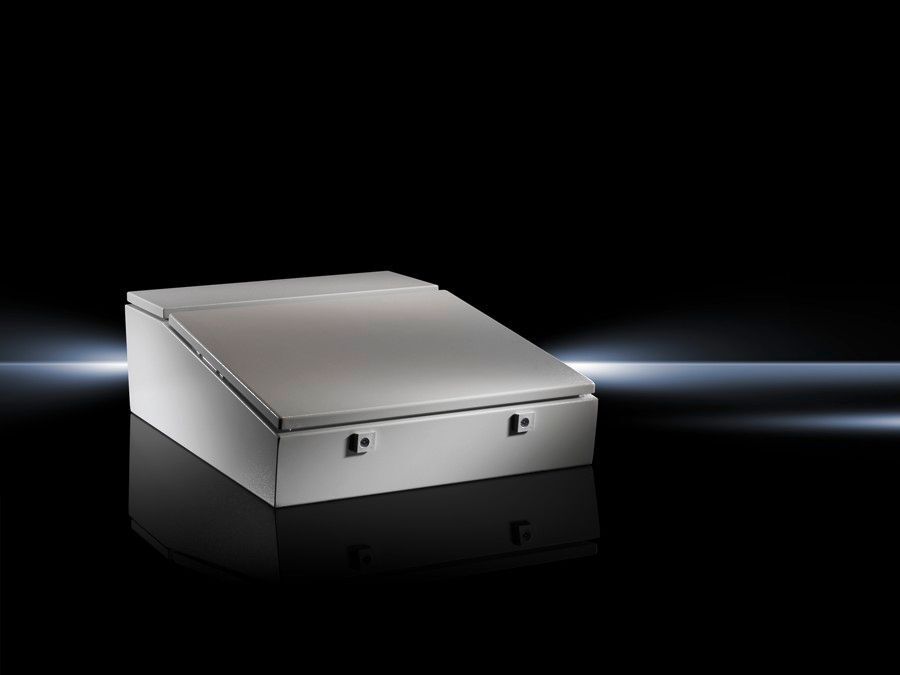

Rittal TP TopConsole 6710500 Desk Unit - IP55
Part Number: 6710500
Manufacturer
Rittal
Part number
6710500
Alt Part Number
TP 6710.500
Quick Summary
Rittal TP TopConsole 6710500 desk unit is a compact, 2-part assembly designed for control panels and workstation environments. It streamlines installation by offering a rear-hinged cover, a base cable opening, and a precise WHD 600x732 mm footprint, reducing field adjustments. Engineers often struggle with cable routing, access, and sealing in confined spaces; this system addresses those challenges with integrated opening for running cables into the enclosure base and a robust sheet-steel enclosure. The unit delivers reliable protection with IP 55, IK08 impact resistance, and NEMA 12 compatibility, helping you meet harsh industrial conditions. By combining a dip-coat prime and powder-coated exterior with a textured finish, it minimizes maintenance while delivering long-term durability. In practice, it supports scalable automation layouts and fast commissioning, aligning with modern production demands and cost control.
Product Information
Extended Description
6710500 Rittal: TP TopConsole system, desk unit for 2-part assembly, WHD 600x732 mm, sheet steel
Article number
TP 6710.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width:Â 600 mm | Height:Â 240 mm | Depth:Â 732 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
22 kg
Customs tariff number
94032080
EAN
4028177554184
ETIM 7.0
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 2-part assembly, WHD 600x732 mm, sheet steel
Feature → Business Impact → Application: The TP TopConsole uses durable sheet steel construction (enclosure 1.5 mm, door 2.0 mm) with a powder-coated, textured exterior that resists wear and corrosion, reducing lifecycle maintenance and downtime in harsh environments; this enhances reliability for automated control panels and workstations. Feature → Business Impact → Application: The 2-part desk unit design enables straightforward installation and modular expansion; it simplifies wiring and service access, shortening commissioning times and lowering labor costs for panel builders and integrators. Feature → Business Impact → Application: With IP55 protection, IK08 impact resistance, and NEMA 12 compatibility, it provides robust dust and moisture sealing and shock tolerance, ensuring continued operation in manufacturing floors and process lines. Feature → Business Impact → Application: A dedicated opening for running cables into the enclosure base streamlines cable routing and strain relief, improving maintainability and reducing installation errors in compact spaces. Feature → Business Impact → Application: The 600x732 mm footprint fits common automation layouts, supporting scalable configurations and faster system integration for turnkey projects in electrical infrastructure and enclosure ecosystems.
Get a Quick Quote for a Rittal 6710500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6710500?
Enquire Now
FAQs
The 6710500 TP TopConsole is a desk unit designed for 2-part assembly with a base opening for running cables into the enclosure base and a rear-hinged cover for easy access. Its 600x732 mm footprint fits standard panel layouts, facilitating straightforward mounting to compatible frames or cabinets. Installation benefits include simplified wiring, reduced field adjustments, and clear service access, which accelerates commissioning and minimizes field service time.
This unit carries IP55 protection, IK08 impact resistance, and NEMA 12 compatibility. IP55 guards against dust ingress and water spray, protecting sensitive electronics in dirty or damp environments. IK08 indicates robust mechanical protection against impact scenarios common on factory floors. NEMA 12 compatibility further assures enclosure performance for indoor process environments, reducing failure risk and supporting regulatory compliance.
Yes. The TopConsole 6710500 is built for compact installations with a base cable entry and a rear-hinged cover that improves service access. Its 600x732 mm footprint aligns with many standard control layouts, and the base cable opening simplifies routing without compromising protection. Its sheet-steel construction plus powder-coated finish maintains durability in confined industrial spaces.
The enclosure uses sheet steel with an external powder-coated textured finish and a dipcoat-primed base. The inner metal is 1.5 mm thick (enclosure) with 2.0 mm door/console cover. This combination delivers corrosion resistance, wear resistance, and long-term durability in harsh environments, reducing maintenance cycles and extending service life for automation panels and control desks.
Packs are sold as 1 piece per package, with a weight of 22 kg per pack. This packaging supports straightforward freight handling and enables easier integration into assembly lines or warehouse logistics without special handling equipment.
