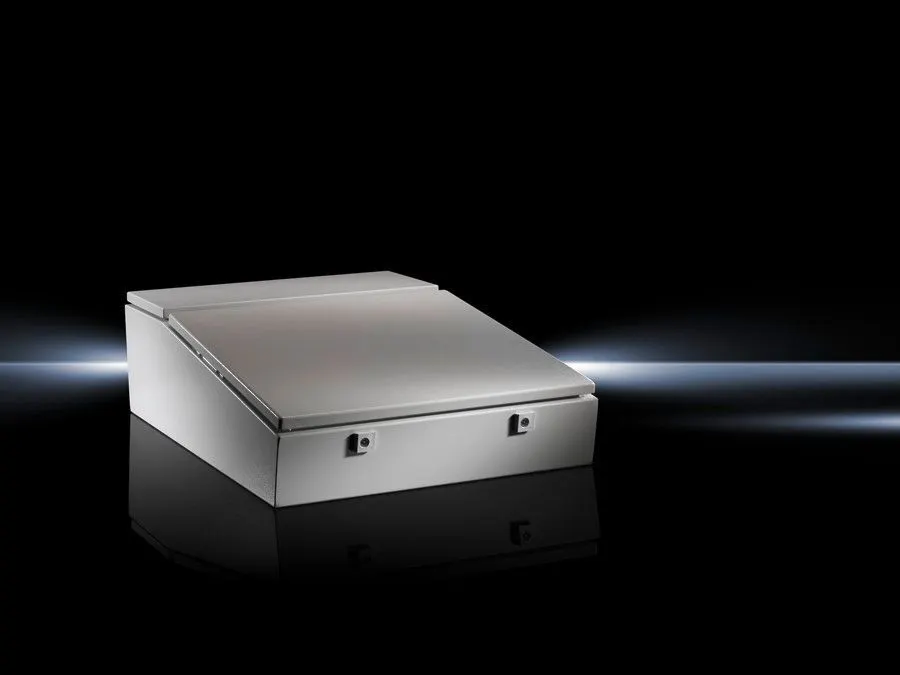

Rittal TP 6711.500 TopConsole System - IP55 Enclosure
Part Number: 6711500
Manufacturer
Rittal
Part number
6711500
Alt Part Number
TP 6711.500
Quick Summary
Rittal TP 6711.500 TopConsole System is a desk unit designed for two-part assembly in industrial enclosures. Operators and engineers often face tight spaces, complex cable routing, and slow service access in control rooms; this console addresses those pain points with a compact WHD 800x732 mm footprint. It achieves IP55 protection, IK08 impact resistance, and NEMA 12 compatibility, ensuring reliability across European and North American environments. The rugged sheet‑steel construction and textured powder coating deliver long-term durability in factory floors and harsh environments. By combining ease of installation with robust protection, it adds value to enclosure projects and aligns with your enclosures & electrical infrastructure strategy, while supporting efficient maintenance workflows.
Product Information
Extended Description
6711500 Rittal: TP TopConsole system, desk unit for 2-part assembly, WHD 800x732 mm, sheet steel
Article number
TP 6711.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width:Â 800 mm | Height:Â 240 mm | Depth:Â 732 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
25 kg
Customs tariff number
94032080
EAN
4028177554191
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 2-part assembly, WHD 800x732 mm, sheet steel
Feature: Sheet steel enclosure with 1.5 mm body and 2.0 mm door/console cover, all-round PU seal. Business Impact: Strong mechanical protection reduces downtime from minor impacts and wear, extending service intervals. Application: Ideal for control cabinets in manufacturing lines where frequent access is required. Feature: IP55 protection and IK08 impact resistance with NEMA 12 compatibility. Business Impact: Reliable operation in dusty or damp environments and across regional installations, decreasing risk of ingress-driven faults. Application: Suitable for packaging, automotive, and process industries. Feature: Dimensions 800 mm width, 240 mm height, 732 mm depth; weight 25 kg per pack. Business Impact: Clear space planning and portable enough to maneuver during installation without extensive lifting gear. Application: Retrofit and new-build panels where footprint consistency matters. Feature: Supply includes rear-hinged cover, two stays with automatic locking, left-side unlocking, and opening for base cable entry. Business Impact: Accelerates assembly and maintenance, reduces service time, and improves wiring organization. Application: Modular integration with existing enclosures and rapid upgrades. Feature: Finish and color—dip-primed, powder-coated outside in RAL 7035. Business Impact: Durable surface resistance to corrosion and wear, sustaining appearance and performance in factories. Application: Environments with frequent handling and cleaning; standardized color coding enhances visibility and compliance.
Get a Quick Quote for a Rittal 6711500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6711500?
Enquire Now
FAQs
Plan for an 800 mm wide unit, install the rear-hinged cover, and secure with the two automatic locking stays. Use the base cable entry to route cables neatly, then close the cover for a quick, service-friendly two-part assembly that integrates with current control panels and minimizes downtime.
Key specs include WHD 800x732 mm, height 240 mm, depth 732 mm, sheet steel construction with 1.5 mm enclosure and 2.0 mm door/console cover, powder-coated finish in RAL 7035, IP55 protection, IK08 impact resistance, and NEMA 12 compatibility. Weight per pack is 25 kg, with a single-pack supply.
Yes. The enclosure provides IP55 protection and IK08 impact resistance, plus NEMA 12 compatibility, making it suitable for both European and North American applications. The sheet steel construction and textured powder coating further enhance durability in dusty, humid, and mechanically demanding environments.
The package includes the enclosure with a rear-hinged cover, two stays with automatic locking, automatic unlocking on the left and manual unlocking on the right, and an opening for running cables into the enclosure base. This setup supports straightforward installation and easy future access.
The 2-part assembly, rear-hinged cover, and base cable entry streamline wiring and service access, reducing maintenance time. Durable IP55/IK08 protection and NEMA 12 compatibility minimize ingress-related faults, helping maintain higher uptime in manufacturing and process environments.
