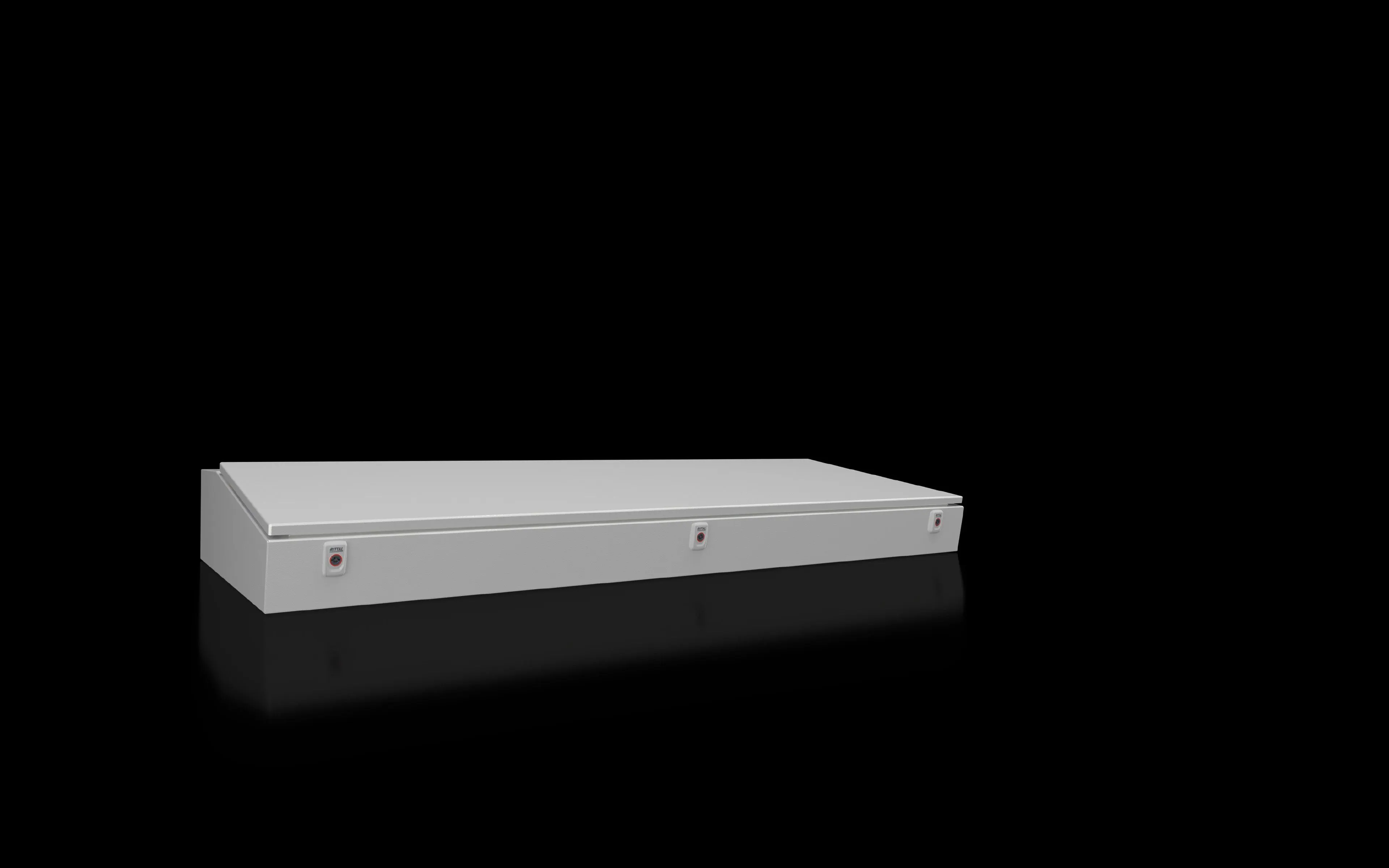

Rittal CX 6712.000 Desk Console - IP55 & IK10
Part Number: 6712000
Manufacturer
Rittal
Part number
6712000
Alt Part Number
CX 6712.000
Quick Summary
CX 6712.000 desk console from Rittal provides a robust workspace for control panels in compact industrial systems. Engineers often struggle with cable routing, access, and secure locking in tight installations. It offers IP55 ingress protection and IK10 impact resistance, with cam locking and rear-hinged cover features that simplify maintenance. By combining a durable enclosure with modular desk access, this unit reduces install time and maintenance costs while ensuring regulatory compliance. Designed for the CX console system, it supports scalable layouts and fast integration into existing automation architectures. For purchasing teams, its standardized dimensions help with cabinet planning and spare parts alignment, while its coated finish withstands factory conditions.
Product Information
Extended Description
6712000 Rittal: CX console system, desk unit, W: 1200 mm
Article number
CX 6712.000
Design
Desk section
Material
Enclosure: Sheet steel 1.5 mm | Console lid: Sheet steel 2.0 mm, all-round foamed-in PU seal
Surface finish
Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base | Lock: 3 mm double-bit
Dimensions
Width:Â 1,200 mm | Depth:Â 745 mm
Height, front
130 mm
Height rear
200 mm
Number of doors
2
IK Code
IK10
Note
A cover plate is required to seal the desk unit
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Dimensions
Width:Â 1,200 mm
Number of locks
3
Lock version
Cam
Lock insert
3 mm double-bit
Lock
Lock version:Â Cam | Number of locks:Â 3 | Lock insert:Â 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
36.5 kg
Customs tariff number
94032080
EAN
4028177983700
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
CX console system, desk unit, W: 1200 mm
Feature: Enclosure and desk lid are constructed from sheet steel 1.5 mm (enclosure) and 2.0 mm (console lid) with an all-round foamed-in PU seal. Business Impact: Delivers robust mechanical strength and reliable ingress protection, reducing field service calls and safeguarding sensitive control electronics. Application: Ideal for mid‑range automation panels in manufacturing lines.Feature: Surface finish consists of dipcoat priming with powder coating on the exterior and textured paint. Business Impact: Prolongs exterior lifecycles in harsh environments, minimizing repaint cycles and downtime. Application: Suitable for factory floors and external control stations where aesthetics and durability matter.Feature: Security and locking include 3 cam locks with a 3 mm double-bit insert. Business Impact: Improves access control and tamper resistance, enhancing plant security and reducing unauthorized access. Application: Critical control cabinets requiring robust key-based security.Feature: Two doors and a width of 1,200 mm provide balanced access to both sides of the console. Business Impact: Simplifies maintenance and component mounting, cutting service time during upgrades. Application: Controls housings for compact process lines and machine dashboards.Feature: Cable entry opening in the enclosure base plus rear-hinged cover with automatic locking and left-side manual unlock. Business Impact: Enables clean cable management and quick reconfiguration without disassembly. Application: New installations and retrofit projects where wiring routes must be adapted on the fly.Feature: Powder-coated finish in RAL 7035 and a weight of 36.5 kg per pack. Business Impact: Consistent appearance and predictable handling during installation, with durable resistance to wear. Application: Industrial environments requiring reliable aesthetics and sturdy handling during logistics.
Get a Quick Quote for a Rittal 6712000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6712000?
Enquire Now
FAQs
CX 6712.000 is designed as a desk unit within the CX console system. It features a 1,200 mm width, two doors, rear-hinged cover, and automatic locking stays, enabling seamless integration with CX components. The unit also supports two-piece assembly, allowing flexible configuration for evolving automation layouts and easy mounting alongside existing enclosures.
The desk console provides IP55 ingress protection and IK10 impact resistance. It includes cam locks with a 3 mm double-bit insert (three locks total) to ensure secure access. The combination of environmental protection and secure locking makes it suitable for harsh factory environments and high-security control cabinets.
This unit is ideal for control panels, operator workstations, and dashboard consoles in manufacturing and process automation. Its 1,200 mm width supports standard 19-inch equipment layouts, while the cable-entry capability and rear-hinged lid simplify installation and routine servicing in line-side or panel-room installations.
Key certifications reflected in the datasheet include IP 55 rating for enclosure protection and IK10 impact resistance, aligning with standard industrial enclosure practices. The unit adheres to general IEC/EN guidelines for protective enclosures and secure access, supporting safe operation in regulated manufacturing environments.
The powder-coated exterior and durable sheet-steel construction minimize repainting and corrosion risk, reducing maintenance costs over time. The solid locking system, cable-entry options, and modular two-piece assembly shorten upgrade cycles and facilitate future reconfigurations, delivering a favorable return on investment in evolving automation projects.
