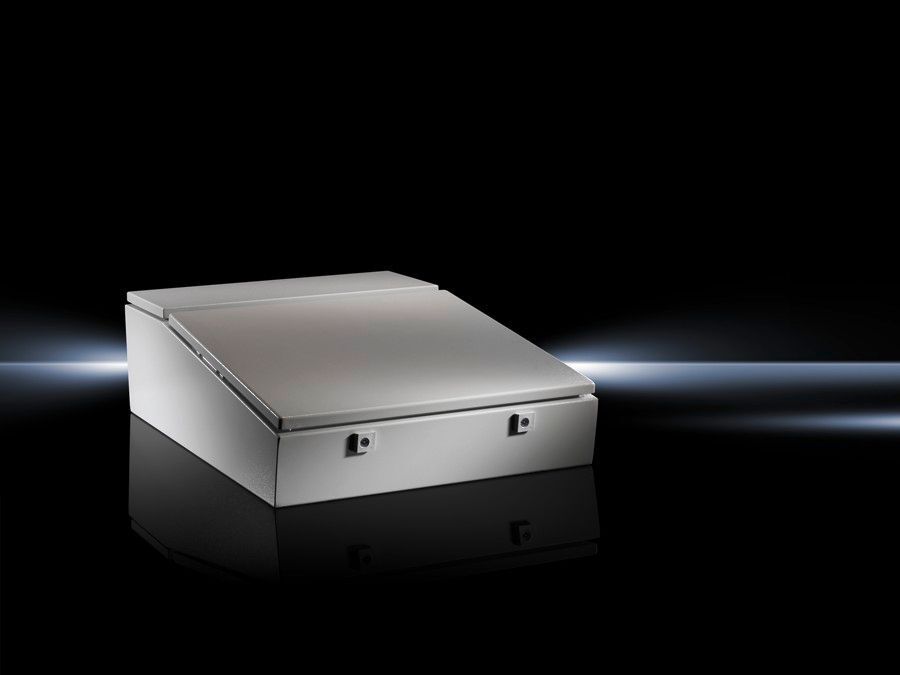

Rittal TP 6712.500 TopConsole Desk Unit - IP55
Part Number: 6712500
Manufacturer
Rittal
Part number
6712500
Alt Part Number
TP 6712.500
Quick Summary
Rittal TP 6712.500 TopConsole desk unit provides a modular enclosure for 2‑part assembly in control panels. Engineers often struggle with cramped layouts, complex cable routing, and seal integrity; this system streamlines mounting and entry points while protecting sensitive electronics. It’s built to withstand demanding environments with IP55 protection, IK08 impact resistance, and NEMA 12 enclosure class, keeping components safe from dust, water splash, and mechanical shocks. Combined with a durable sheet-steel construction and a RAL 7035 finish, it offers scalable widths and fast installation, delivering predictable performance and lower lifecycle costs.
Product Information
Extended Description
6712500 Rittal: TP TopConsole system, desk unit for 2-part assembly, WHD 1200x732 mm, sheet steel
Article number
TP 6712.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width: 1,200 mm | Height: 240 mm | Depth: 732 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
46 kg
Customs tariff number
94032080
EAN
4028177554207
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 2-part assembly, WHD 1200x732 mm, sheet steel
Feature → Four widths complete the TopConsole system, allowing you to tailor the desk unit to exact mounting envelopes. Business Impact → Improves space utilization and enables scalable layouts across multiple machines without redesigns. Application → Ideal for line-side control desks in manufacturing and process automation where space efficiency matters. Feature → Robust sheet steel construction with enclosure 1.5 mm and door/console cover 2.0 mm, plus all-round PU seal. Business Impact → Delivers durable protection against dust, splashes, and impact, extending component life in harsh environments. Application → Suitable for factory floors and automation cabinets demanding reliable mechanical protection. Feature → IP55 protection, IK08, and NEMA 12; Business Impact → Regulatory-compliant shielding against dust and water ingress and mechanical shocks; Application → Critical for equipment cabinets used in dusty or splash-prone production areas. Feature → Powder-coated exterior in textured RAL 7035; Business Impact → Long-term aesthetics and easier maintenance, reducing repainting and corrosion concerns; Application → Color-coded installations across plant areas for quick identification. Feature → Openings for running cables into the enclosure base; Business Impact → Simplifies cable management and lowers wiring errors; Application → Supports clean routing of power, control, and IO cables during panel assembly. Feature → Rear-hinged cover with automatic locking and left-side automatic unlocking; Business Impact → Safer, faster access during maintenance and commissioning; Application → Service-friendly top-console desks in automated lines.
Get a Quick Quote for a Rittal 6712500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6712500?
Enquire Now
FAQs
TP 6712.500 supports a 2-part assembly with a rear-hinged cover and two stays that lock automatically, plus automatic unlocking on the left and manual unlocking on the right. The design includes an opening for running cables into the enclosure base, enabling clean, secure routing and quick service access during maintenance or upgrades.
This TopConsole desk unit is rated IP55 for dust and water protection, IK08 for impact resistance, and conforms to NEMA 12 enclosure standards. These specifications provide reliable protection for control electronics in dusty, wash-down, or splash-prone factory settings, helping maintain uptime and repeatable performance.
Yes. The TP TopConsole system offers multiple widths, including the 1,200 mm wide option described here, enabling modular expansion and consistent aesthetics across different control rooms. This compatibility supports scalable layouts, easier standardization, and reduced engineering time when adding new lines or upgrading existing panels.
Installers should use the enclosed opening for running cables into the enclosure base and plan for the 1.5 mm enclosure shell with a 2.0 mm door/console cover. Plan for the textured powder-coated finish in RAL 7035 to maintain access, insulation, and sealing integrity, reducing ingress risk and simplifying future cable management.
The combination of sheet steel construction, protective powder coating, IP55/NEMA 12 protection, and durable locking mechanisms minimizes corrosion, ingress, and wear over time. This translates to longer service intervals, lower maintenance costs, and dependable performance in demanding automation environments, improving total cost of ownership for machine builders.
