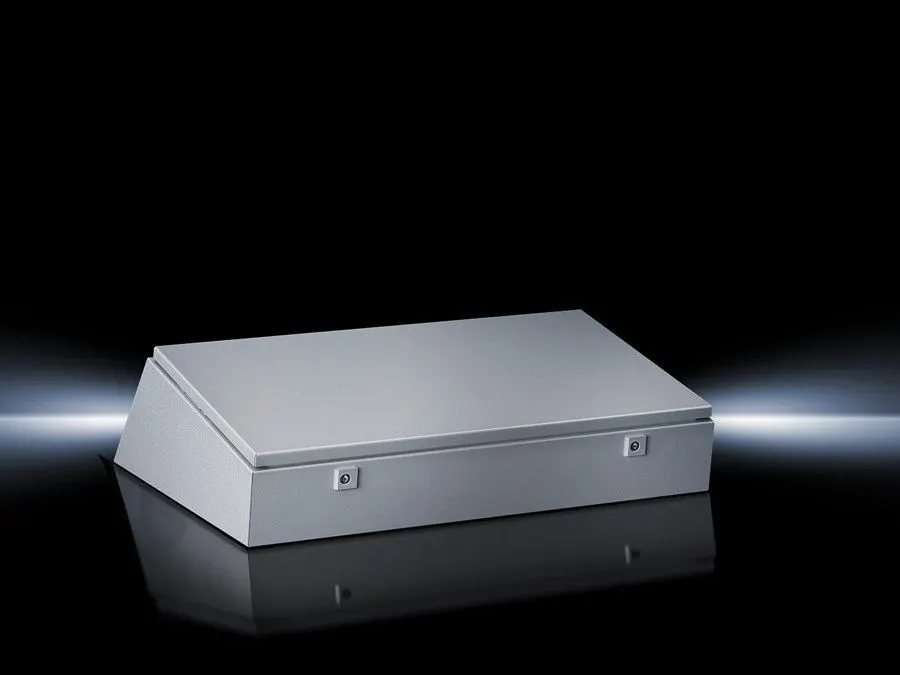

Rittal 6714500 TopConsole System Desk Unit - IP55
Part Number: 6714500
Manufacturer
Rittal
Part number
6714500
Alt Part Number
TP 6714.500
Quick Summary
Rittal 6714500 TopConsole System desk unit provides a rugged, modular enclosure for compact control panels. When space is tight or frequent access is required, traditional cabinets can slow maintenance and increase downtime. With IP55, IK08, and NEMA 12 protection, this enclosure resists dust, impact, and moisture, making it suitable for harsh environments. The 600x730 mm WHD footprint and three-part assembly deliver predictable serviceability and scalable upgrades. Color and surface finish—RAL 7035 with a dipcoat-primed, powder-coated exterior—enhance durability while preserving professional aesthetics in control rooms and industrial cabinets. Designed for reliable integration with standard mounting schemes, it supports efficient wiring, cable management, and long-term total cost of ownership improvements.
Product Information
Extended Description
6714500 Rittal: TP TopConsole system, desk unit for 3-part assembly, WHD 600x730 mm, sheet steel
Article number
TP 6714.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width:Â 600 mm | Height:Â 235 mm | Depth:Â 730 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
18.3 kg
Customs tariff number
94032080
EAN
4028177554221
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 3-part assembly, WHD 600x730 mm, sheet steel
Feature: Three-part TopConsole design with 600x730 mm WHD. Business Impact: Enables compact, modular control panels that are easier to assemble and upgrade, reducing lead times for changes in automation layouts. Application: Suitable for space-constrained control cabinets in manufacturing lines. Feature: Sheet steel construction with door and console cover in 2.0 mm sheet steel and PU seal. Business Impact: Delivers robust mechanical protection and improved ingress sealing to minimize downtime due to environmental exposure. Application: Harsh factory floors and outdoor-adjacent enclosures. Feature: IP 55 and IK08 protection with NEMA 12 classification. Business Impact: Ensures reliable performance in dusty, humid, and mildly impact-prone environments, supporting compliance and extended service intervals. Application: Industrial automation desks and control housings for electronics racks. Feature: Cover hinged at rear with two stays and automatic locking, plus automatic unlock on the left and manual unlock on the right. Business Impact: Simplifies daily operation and maintenance, enhancing serviceability and reducing maintenance crew time. Application: Frequent access scenarios where quick opening and secure closure matter. Feature: Built-in opening for running cables into the enclosure base. Business Impact: Improves cable management and reduces installation complexity, leading to shorter commissioning times. Application: Wiring-heavy control panels and power distribution enclosures. Feature: Dipcoat-primed, powder-coated exterior in textured finish and color RAL 7035. Business Impact: Delivers corrosion resistance and an attractive, standardized appearance across plant cabinets. Application: Office-to-factory transitions and environments demanding consistent appearance and protection.
Get a Quick Quote for a Rittal 6714500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6714500?
Enquire Now
FAQs
Yes. The TP 6714.500 is designed as a 600x730 mm WHD TopConsole desk unit, aligning with common 600x730 mm openings and providing a rear-hinged cover for easy integration with existing mounting rails and cable routes.
The enclosure is IP55 certified, IK08 impact resistant, and NEMA 12 rated, delivering dust and moisture resistance, durable impact protection, and suitable protection for indoor, harsh-environment installations.
Yes. The cover is hinged at the rear with two stays that lock automatically; unlocking is automatic on the left and manual on the right, simplifying routine access and security.
Enclosure is sheet steel 1.5 mm; door and console cover are sheet steel 2.0 mm with a full PU seal. Exterior is dipcoat-primed and powder-coated with a textured finish in RAL 7035 for durability and corrosion resistance.
Ideal for compact, modular control panels in automation and electrical infrastructure projects, where 3-part assembly supports scalable layouts, efficient cable management, and predictable lifecycle costs in harsh or dusty environments.
