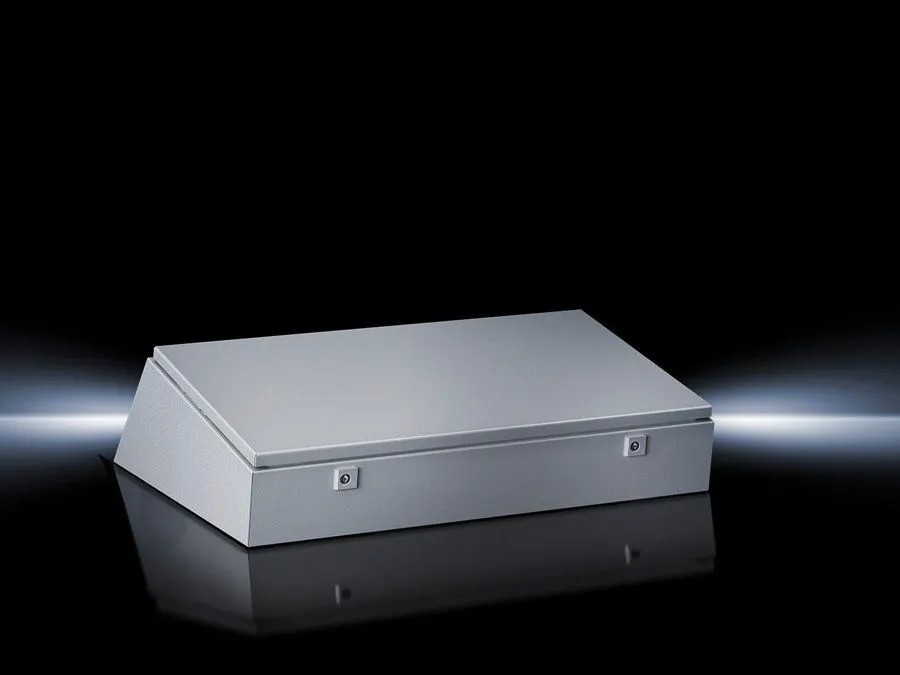

Rittal TP 6715.500 TopConsole Desk Unit - IP55 IK08
Part Number: 6715500
Manufacturer
Rittal
Part number
6715500
Alt Part Number
TP 6715.500
Quick Summary
Rittal TP 6715.500 TopConsole desk unit is designed to streamline three-part assembly for control panels in industrial workstations. Engineers often struggle with cable routing, space constraints, and slow installation when configuring multi-part enclosures. This TopConsole module delivers IP 55 protection and IK08 robustness, with NEMA 12 compatibility, helping you meet harsh environment requirements. Built from sheet steel with a durable powder-coated exterior, it pairs a fixed enclosure with a rear-hinged door and a console cover for clean, accessible work surfaces. Incorporating an 800x730 mm footprint and 1.5–2.0 mm steel construction, it reduces install time and improves serviceability while supporting scalable automation layouts for plant-wide deployments.
Product Information
Extended Description
6715500 Rittal: TP TopConsole system, desk unit for 3-part assembly, WHD 800x730 mm, sheet steel
Article number
TP 6715.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width:Â 800 mm | Height:Â 235 mm | Depth:Â 730 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
27 kg
Customs tariff number
94032080
EAN
4028177554238
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 3-part assembly, WHD 800x730 mm, sheet steel
Feature: Robust sheet steel construction with 1.5 mm enclosure and 2.0 mm door/console cover plus PU seal. Business Impact: Enhanced durability and reliable sealing in demanding environments, reducing field service and replacement costs. Application: Control cabinets on busy production lines. Feature: IP 55 protection and IK08 shock resistance. Business Impact: Protected electronics from dust, water ingress, and impacts, extending component life and uptime. Application: Machines and panels in semi-enclosed factory spaces. Feature: 800x730 mm footprint with 235 mm height and 730 mm depth. Business Impact: Space-efficient footprint enabling compact control desks and better line layout. Application: Modern automation cells with limited wall/desk space. Feature: Rear-hinged cover with two stays and automatic locking; left-side unlocking; cable-entry opening. Business Impact: Faster maintenance, safer wiring, and simpler servicing in both new builds and upgrades. Application: Routine diagnostics and panel access. Feature: Powder-coated exterior in RAL 7035. Business Impact: Consistent appearance and corrosion resistance across harsh environments. Application: Indoor and semi-outdoor industrial settings. Feature: Three-part TopConsole compatibility. Business Impact: Modularity and scalability for evolving control systems, reducing future rework. Application: Plant-wide automation upgrades and expansion projects.
Get a Quick Quote for a Rittal 6715500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6715500?
Enquire Now
FAQs
The TP 6715.500 is a desk unit designed for three-part TopConsole assembly with a WHD of 800x730 mm and overall dimensions of 800 mm width, 235 mm height, and 730 mm depth. It uses sheet steel construction, a rear-hinged cover, and a console plate with cable-entry access to simplify installation and future upgrades.
The enclosure offers IP 55 ingress protection and IK08 impact resistance, along with NEMA 12 compatibility. Constructed from sheet steel with a powder-coated finish in RAL 7035, it is designed for robust operation in demanding industrial environments while meeting common regulatory expectations.
Installation benefits include a hinged rear cover with two stays and automatic locking, left-side unlocking for quick access, and an opening for running cables into the enclosure base. The 800x730 mm footprint and three-part TopConsole compatibility shorten setup times and simplify future reconfigurations.
Ideal for machine control panels, automation cabinets, and testing benches in manufacturing facilities, the TP 6715.500 supports modular control layouts, clean cable management, and durable protection in busy production lines. It pairs with other TopConsole components to enable scalable solutions across evolving automation projects.
Each pack contains one desk unit weighing 27 kg. The GTIN is 4028177554238, EAN 4028177554238, and customs tariff number 94032080. It is classified under ETIM EC000784 and ECLASS 27180504, with easy procurement via standard supply channels.
