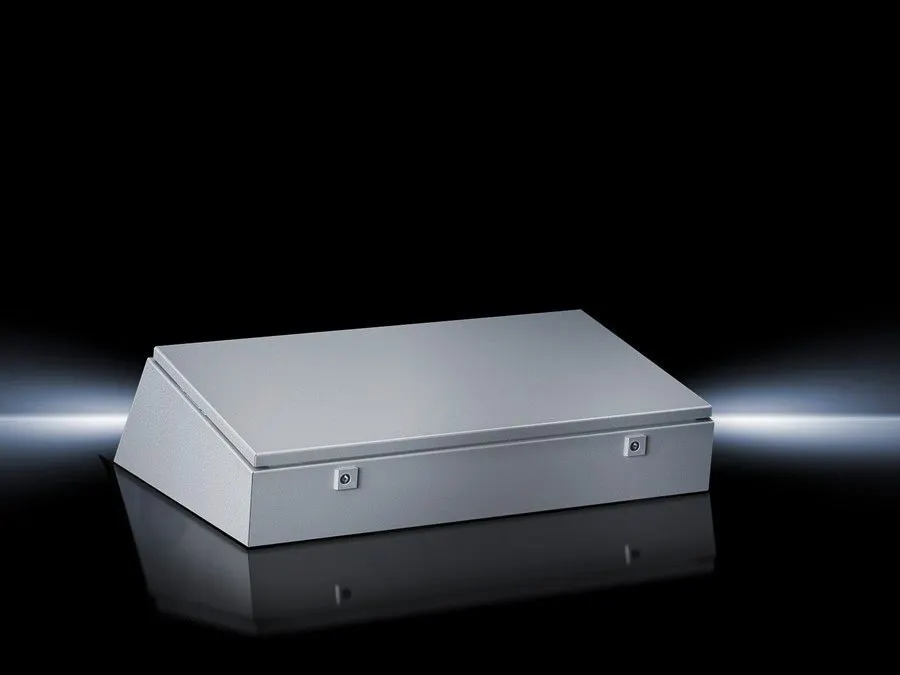

Rittal TP 6717.500 TopConsole Desk Unit - IP55 IK08
Part Number: 6717500
Manufacturer
Rittal
Part number
6717500
Alt Part Number
TP 6717.500
Quick Summary
Rittal TP 6717.500 TopConsole desk unit enables compact 3‑part control desks for industrial automation. In practice, engineers grapple with limited footprints, cable routing complexity, and restricted service access in crowded control rooms. This desk unit delivers IP55 protection, IK08 impact resistance, and NEMA 12 suitability, ensuring robust protection for harsh environments. At WHD 1600x730 mm, with sheet-steel construction and a textured powder finish in RAL 7035, it integrates seamlessly with the TopConsole system, delivering modularity, easy installation, and long-term lifecycle efficiency for growing factory needs.
Product Information
Extended Description
6717500 Rittal: TP TopConsole system, desk unit for 3-part assembly, WHD 1600x730 mm, sheet steel
Article number
TP 6717.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Opening for running cables into the enclosure base
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width: 1,600 mm | Height: 235 mm | Depth: 730 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
48 kg
Customs tariff number
94032080
EAN
4028177554252
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, desk unit for 3-part assembly, WHD 1600x730 mm, sheet steel
Feature → Business Impact → Application: The 3‑part TopConsole desk unit enables a scalable, modular assembly, dramatically shortening project design and integration time while allowing future upgrades without replacing entire enclosures. This supports flexible layouts for evolving workflows in control rooms and mid-to-large scale automation cells. Application: Ideal for office-adjacent control desks and modular manufacturing lines where adaptability matters. Feature → Business Impact → Application: IP55 protection, IK08 impact resistance, and NEMA 12 suitability provide reliable enclosure protection against dust, moisture, and mechanical shocks, reducing unplanned downtime and service intervals. Application: Harsh industrial environments such as packaging, processing, and assembly lines where critical electronics require rugged housing. Feature → Business Impact → Application: Sheet steel construction with 1.5 mm enclosure walls and 2.0 mm door/console cover plus all-round PU seal deliver structural integrity and superior sealing, extending component life and maintaining environmental separation. Application: Control electronics and power electronics in demanding environments demanding durability. Feature → Business Impact → Application: WHD 1600x730 mm footprint with a base cable-entry opening simplifies wiring, reduces installation time, and minimizes post-install rework. Application: Medium-to-large control desks needing tidy cable management and scalable layouts. Feature → Business Impact → Application: Dipcoat-primed, powder-coated exterior in textured RAL 7035 ensures durable aesthetics, corrosion resistance, and easier maintenance; includes hinged back cover with automatic locking for secure access. Application: Office-adjacent or production-floor enclosures requiring reliable access control and long-term appearance maintenance. Feature → Business Impact → Application: Weighing 48 kg per pack with a 1-piece pack simplifies handling and transport while providing robust installation stability. Application: Projects prioritizing safety during installation and secure mounting in industrial settings.
Get a Quick Quote for a Rittal 6717500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6717500?
Enquire Now
FAQs
The TP 6717.500 TopConsole is designed for 3‑part assembly within the TopConsole system, enabling seamless integration with existing Rittal enclosures. Its 1600 mm width and mounting interfaces support standard assembly patterns, making it straightforward to extend or reconfigure layouts without replacing entire cabinets. Installation favors common fasteners, cable-entry practices, and alignment with established mounting rails for predictable, repeatable results.
This desk unit carries IP55 protection for dust and water ingress, IK08 impact resistance for mechanical shocks, and NEMA 12 compatibility for dust and oil protection. Together, these ratings reduce exposure to contaminants and physical damage in typical manufacturing and processing environments, lowering maintenance needs and extending uptime for critical control electronics.
Yes. The unit includes an opening for running cables into the enclosure base, coupled with a hinged rear cover and automatic locking stays for secure, quick access. Its dedicated cable-entry provision, combined with the 1600x730 mm footprint, supports clean, organized wiring and minimizes post-install rework during changes in layout or upgrades.
Plan for a 1600x730 mm workspace with a 235 mm height and 730 mm depth, using the sheet-steel construction and RAL 7035 finish for durability and visibility. The enclosure weighs about 48 kg per pack, includes a rear-hinged cover and locking/stays system, and is compatible with typical mounting rails and cabling standards used in industrial panels, facilitating straightforward installation and service access.
The modular 3‑part TopConsole design reduces design cycles and enables scalable upgrades, lowering lifecycle costs. Rugged IP55/IK08/NEMA 12 protection minimizes downtime due to environmental or mechanical stress, while the durable sheet-steel construction and powder-coated finish reduce maintenance needs and rework. Overall, expect faster deployments, easier maintenance, and better long-term total cost of ownership in automation projects.
