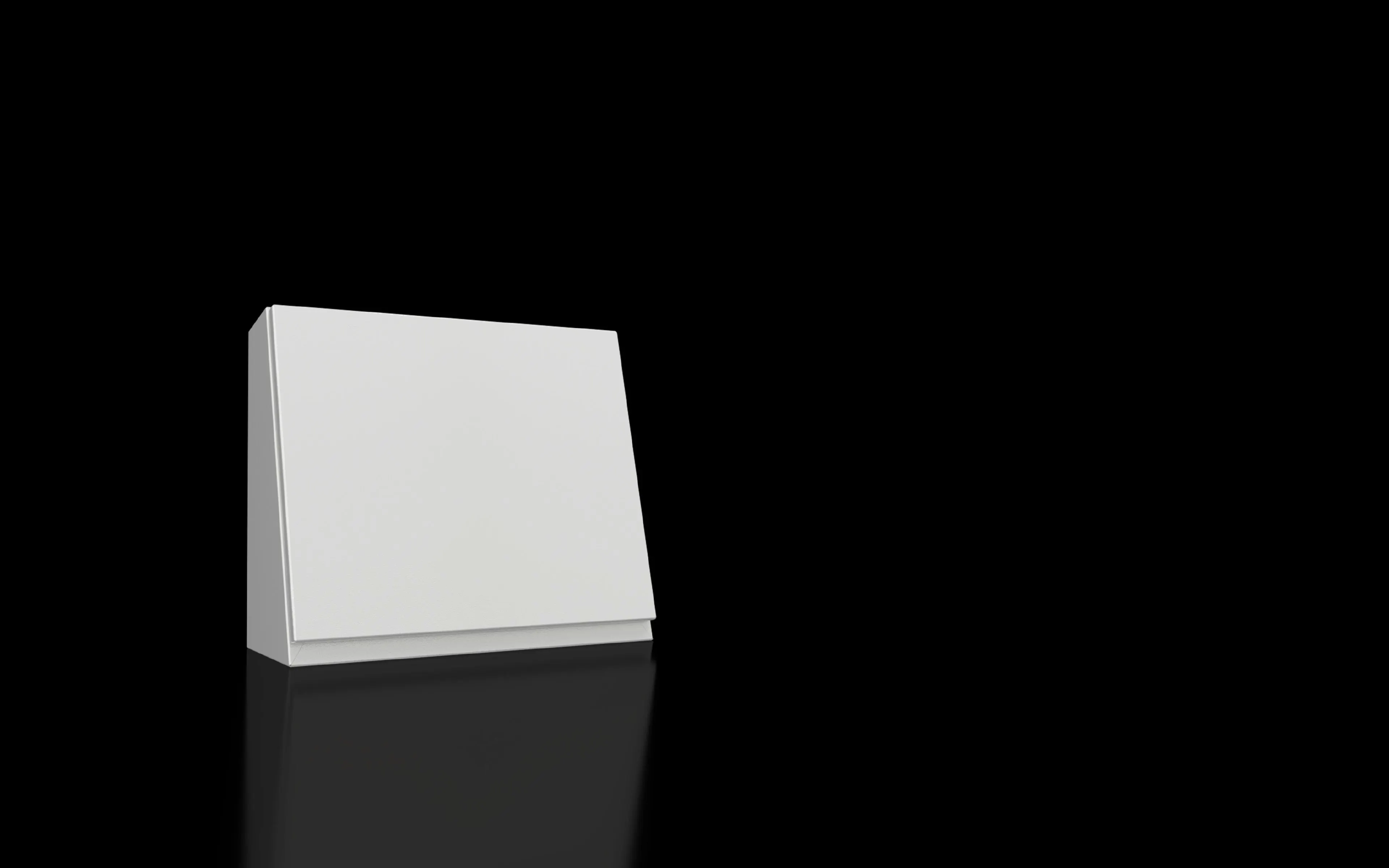

Rittal CX 6720.000 Console System - IP55 IK10
Part Number: 6720000
Manufacturer
Rittal
Part number
6720000
Alt Part Number
CX 6720.000
Quick Summary
Rittal CX 6720.000 Console System provides a modular enclosure solution for three-part control assemblies in industrial cabinets. Engineers often struggle with flexible cable routing and secure access while maintaining IP protection in tight spaces. This CX console combines IP 55 and IK10 ratings with a robust 1.5–2.0 mm sheet steel build, cam locks, and a bottom-hinged cover for reliable operation. Designed to integrate with desk units and pedestals, it supports scalable automation panels while reducing installation time and lifecycle costs. Its powder-coated finish and textured surface help withstand harsh industrial environments, while the open base enables straightforward cable entry. With a compact 600 mm width and 515 mm height, it fits standard cabinet footprints and supports quick reconfiguration for capital efficiency.
Product Information
Extended Description
6720000 Rittal: CX console system, console for 3-part assembly, W: 600 mm, sheet steel
Article number
CX 6720.000
Design
Console
Product description
Four widths create the ideal conditions for individual monitoring and three-piece assembly of the CX console system.
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at bottom, including cover retainer | Open base for individual cable entry | Lock: 3 mm double-bit
Dimensions
Width:Â 600 mm | Height:Â 515 mm
Depth (top)
125 mm
Depth (bottom)
245 mm
IK Code
IK10
Note
A desk unit and pedestal are required for a 3-part console assembly.
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Dimensions
Width:Â 600 mm | Height:Â 515 mm | Depth (top):Â 125 mm | Depth (bottom):Â 245 mm
Number of locks
2
Lock version
Cam
Lock insert
3 mm double-bit
Lock
Lock version:Â Cam | Number of locks:Â 2 | Lock insert:Â 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
16.8 kg
Customs tariff number
94032080
EAN
4028177983687
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
CX console system, console for 3-part assembly, W: 600 mm, sheet steel
Four widths create flexible mounting options for the CX console system, supporting individual monitoring and three-part assembly. This modularity reduces rework and enables fast reconfiguration in evolving control rooms, translating to shorter commissioning times and better space utilization in busy automation cabinets. Material and protection include a sheet steel enclosure of 1.5 mm with a 2.0 mm door and a comprehensive PU seal, delivering robust ingress protection and long-term durability in dusty or damp environments, which minimizes maintenance cycles and downtime. The durable finish uses dipcoat priming with powder coating and textured paint, providing corrosion resistance and scratch protection for front panels in production facilities. Open base for cable entry and a bottom-hinged cover, combined with two cam locks and a 3 mm double-bit lock insert, enhances secure access while simplifying cabling and field service. Dimensions of 600 mm width and 515 mm height align with common enclosure footprints, and the supply includes the enclosure, cover, and base features to speed installation. A note highlights that a desk unit and pedestal are required for a 3-part assembly, guiding project planning and reducing last-minute design changes. Overall, the CX 6720.000 supports standardized layouts, repeatable mounting, and faster deployment across multiple lines, delivering measurable capital efficiency for electrical infrastructure projects.
Get a Quick Quote for a Rittal 6720000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6720000?
Enquire Now
FAQs
The CX 6720.000 is designed for 3-part assembly and requires a desk unit and pedestal to complete the configuration. This compatibility enables precise alignment with existing workstations and cabinet ecosystems, reducing integration time and enabling seamless 3-part assembly workflows in automation projects.
The console features IP 55 protection and IK10 impact resistance. It uses a sheet steel enclosure of 1.5 mm and a 2.0 mm steel door with a full PU seal, delivering durable ingress protection and robust physical protection in demanding industrial environments.
Dimensions are width 600 mm, height 515 mm, with depths of 125 mm (top) and 245 mm (bottom). The unit includes two cam locks with 3 mm double-bit inserts, providing secure access while maintaining a compact footprint suitable for standard control cabinet layouts.
With four widths, modular construction, and open base for cable entry, installation and field cabling become faster and more predictable. The bottom-hinged cover and two-lock system reduce service time, while the durable coating minimizes repaint or maintenance needs during plant upgrades.
Yes. The combination of IP 55 protection, IK10 impact resistance, a textured powder-coated finish, and open base access supports easy maintenance, stays reliable under dust and moisture exposure, and reduces downtime in continuous operation environments.
