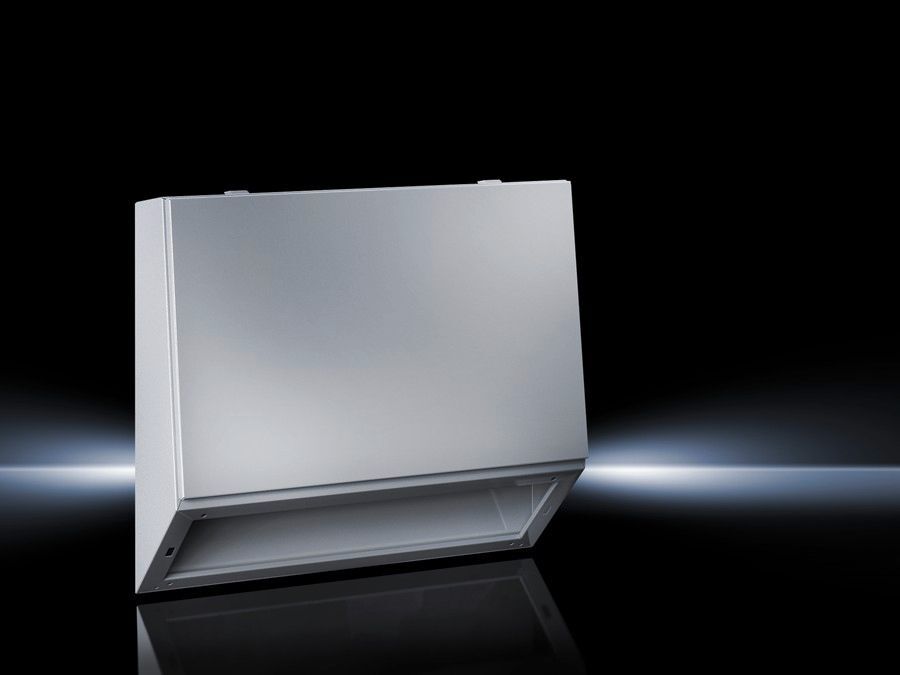

Rittal TP 6720.500 TopConsole System - IP55 IK08
Part Number: 6720500
Manufacturer
Rittal
Part number
6720500
Alt Part Number
TP 6720.500
Quick Summary
Rittal TP 6720.500 TopConsole System is a modular console for 3-part assembly in control enclosures. This design helps you optimize space and simplify cable routing in compact cabinets. It delivers IP 55 protection, IK08 impact resistance, and a NEMA 12 classification, ensuring reliable operation in demanding manufacturing environments. By combining a sheet steel enclosure with a powder-coated, textured exterior (RAL 7035) and a bottom-hinged cover, the solution supports faster installation, easier maintenance, and improved lifecycle cost. For engineers and procurement teams, it provides a robust, scalable platform that aligns with industrial infrastructure needs and 3-part modular assembly strategies. This enables predictable deployment across multiple lines and reduces changeover risk.
Product Information
Extended Description
6720500 Rittal: TP TopConsole system, console for 3-part assembly, WHD 600x720 mm, sheet steel
Article number
TP 6720.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at bottom, including cover retainer | Open base for individual cable entry
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width: 600 mm | Height: 720 mm | Depth: 240 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
11.7 kg
Customs tariff number
94032080
EAN
4028177554269
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, console for 3-part assembly, WHD 600x720 mm, sheet steel
Feature: Three-part TopConsole assembly enables a flexible layout and straightforward upgrades as production lines evolve. Business Impact: Modular construction reduces changeover time and minimizes spare parts, delivering predictable deployments across multiple lines. Application: Ideal for machine control cabinets and enclosure housings where staged wiring and service access are required. Feature: Robust protection ratings IP55, IK08, and NEMA 12. Business Impact: Provides reliable operation in dusty, wet, and impact-prone environments, lowering field failures. Application: Applicable to indoor industrial environments and general purpose control panels. Feature: Sheet steel construction with 1.5 mm enclosure walls and 2.0 mm doors and console cover, plus PU seal. Business Impact: Delivers high rigidity, thermal stability, and enduring sealing performance. Application: Suitable for harsh environments in automation and electrical infrastructure. Feature: Open base for individual cable entry and bottom-hinged cover with cover retainer. Business Impact: Enables flexible cable routing and simplifies maintenance during servicing. Application: Great for retrofit projects and new builds needing adaptable wiring paths. Feature: Dipcoat-primed, powder-coated exterior in textured paint; colour RAL 7035. Business Impact: Improves resistance to corrosion and simplifies surface maintenance while retaining a professional appearance. Application: Ideal for internal factory cabinets and service-friendly enclosures. Feature: 600x720 mm footprint (W x H) with 240 mm depth. Business Impact: Fits standard enclosure bays and supports modular rack design. Application: Enclosures and control panels requiring precise sizing for space-constrained plants.
Get a Quick Quote for a Rittal 6720500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6720500?
Enquire Now
FAQs
The TP 6720.500 TopConsole System is designed for 600x720 mm bays and uses a three-part assembly for modular installation. It ships with an enclosure, a bottom-hinged cover, a cover retainer, and an open base for cable entry, enabling straightforward mounting, wire routing, and quick field upgrades without partial disassembly.
This TopConsole uses sheet steel construction with 1.5 mm enclosure walls and 2.0 mm doors with a PU seal. It carries IP 55 protection and IK08 impact resistance, along with a NEMA 12 rating, ensuring dust and splash protection and robust mechanical durability in demanding environments.
Yes. The IP 55 and IK08 ratings, combined with a powder-coated textured exterior (RAL 7035), make it well-suited for indoor factory floors. The open base for cable entry and bottom-hinged cover simplify routine maintenance, inspections, and component upgrades without compromising enclosure integrity.
Key certifications and standards reflected in this model include IP 55 per IEC 60529, IK08 impact resistance, and NEMA 12 enclosure rating. Additional datasheet references show ETIM EC000784 and ECLASS 27180504 alignment, supporting procurement and technical validation processes.
The modular three-part design reduces changeover time and simplifies upgrades, lowering downtime during servicing. Durable sheet steel with a textured powder finish extends service intervals and minimizes repaint or cosmetic maintenance, contributing to lower lifecycle costs and faster return on investment in automated lines.
