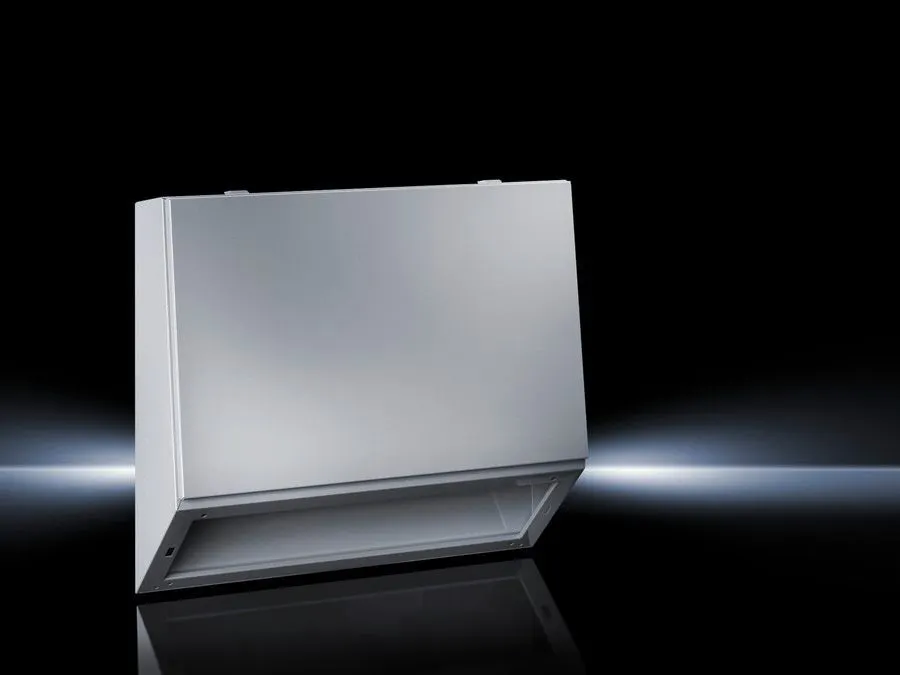

Rittal TP 6722.500 TopConsole System - IP55 rating
Part Number: 6722500
Manufacturer
Rittal
Part number
6722500
Alt Part Number
TP 6722.500
Quick Summary
Rittal TP 6722.500 TopConsole system is a modular console for 3‑part assembly in control cabinets. This design reduces integration time and minimizes wiring mistakes during panel assembly, accelerating commissioning in automation projects. The system offers IP55 protection, IK08 impact resistance, and NEMA 12 compatibility to meet harsh industrial requirements. As part of enclosures and electrical infrastructure, it accelerates installation, reduces field rework, and supports scalable automation strategies. By offering four widths and a bottom-hinged cover, it simplifies cable entry and service access in retrofit projects. Manufactured from sheet steel with a powder-coated exterior in RAL 7035, the unit combines durability with a professional finish for demanding environments.
Product Information
Extended Description
6722500 Rittal: TP TopConsole system, console for 3-part assembly, WHD 1200x720 mm, sheet steel
Article number
TP 6722.500
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Dipcoat-primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at bottom, including cover retainer | Open base for individual cable entry
IK Code
IK08
Basic material
Sheet steel
Dimensions
Width:Â 1,200 mm | Height:Â 720 mm | Depth:Â 240 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
38 kg
Customs tariff number
94032080
EAN
4028177554283
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP TopConsole system, console for 3-part assembly, WHD 1200x720 mm, sheet steel
The TopConsole system is a modular console for 3‑part assembly, enabling precise alignment of sensors, controllers, and displays within a single enclosure. In practice this reduces configuration time and minimizes wiring mistakes during panel assembly, accelerating commissioning in automation projects. The system's flexible widths and modularity support quick adaptation to changing requirements. Rugged construction uses sheet steel with a 1.5 mm enclosure and 2.0 mm door/console covers, delivering mechanical strength and reliable service life. All surfaces are dipcoat-primed and powder-coated in a textured finish, providing corrosion resistance and a professional appearance in plant environments. Protection ratings IP55, IK08 and NEMA 12 guard against dust and moisture, supporting ongoing uptime in demanding applications. Open base enables individual cable entry for clean routing and future expansion. The bottom-hinged cover and integrated cover retainer simplify service access without removing the entire enclosure. These design features reduce maintenance time and minimize downtime in critical production lines. Finish and aesthetics are ensured by a textured powder-coated exterior in RAL 7035, balancing durability with a professional look in factory floors. Dimensions match common control cabinet footprints: Width 1,200 mm, Height 720 mm, Depth 240 mm, enabling straightforward integration. Compatibility with TP TopConsole system ensures quick mounting and alignment with panel doors and interior components. One-pack packaging supports streamlined logistics for procurement and installation in both new builds and retrofits. By offering four widths and a bottom-hinged cover, it simplifies cable entry and service access in retrofit projects. Overall, the TP 6722.500 TopConsole system delivers measurable efficiency gains and improved uptime by combining robust construction with flexible mounting options. Warranty, service plans, or extended support specifics can be coordinated through Rittal distributors for long-term ROI.
Get a Quick Quote for a Rittal 6722500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6722500?
Enquire Now
FAQs
Select the correct width from the four available options to fit your enclosure footprint, then mount the enclosure on a level base. Use the bottom-hinged cover and cover retainer for secure access, and route cables via the open base during initial wiring. Verify seals after assembly to ensure IP55 protection.
Key specs include width 1200 mm, height 720 mm, depth 240 mm; enclosure material sheet steel 1.5 mm with door/console cover at 2.0 mm; IP 55 protection; IK08 impact resistance; NEMA 12 protection; weight 38 kg per pack; and supplied as an enclosure with bottom-hinged cover and open base for cable entry.
Yes. It provides IP55 dust and water ingress protection, IK08 impact resistance, and NEMA 12 protection, all supported by a durable sheet steel construction and textured powder-coated finish. These features help maintain uptime in factory floors, warehouses, and automated production lines.
Its modular 3‑part assembly enables quick component access and straightforward reconfiguration as monitoring needs evolve. The bottom-hinged cover and open base simplify wiring changes, while the robust exterior reduces cleaning and corrosion-related maintenance, contributing to lower downtime and faster fault isolation.
The enclosure meets IP55 protection and IK08 impact resistance with NEMA 12 compatibility. It uses sheet steel and a textured exterior suitable for industrial environments. The product data also references MT-related identifiers such as ETIM EC000784 and ECLASS 27180504 for interoperability with procurement systems.
