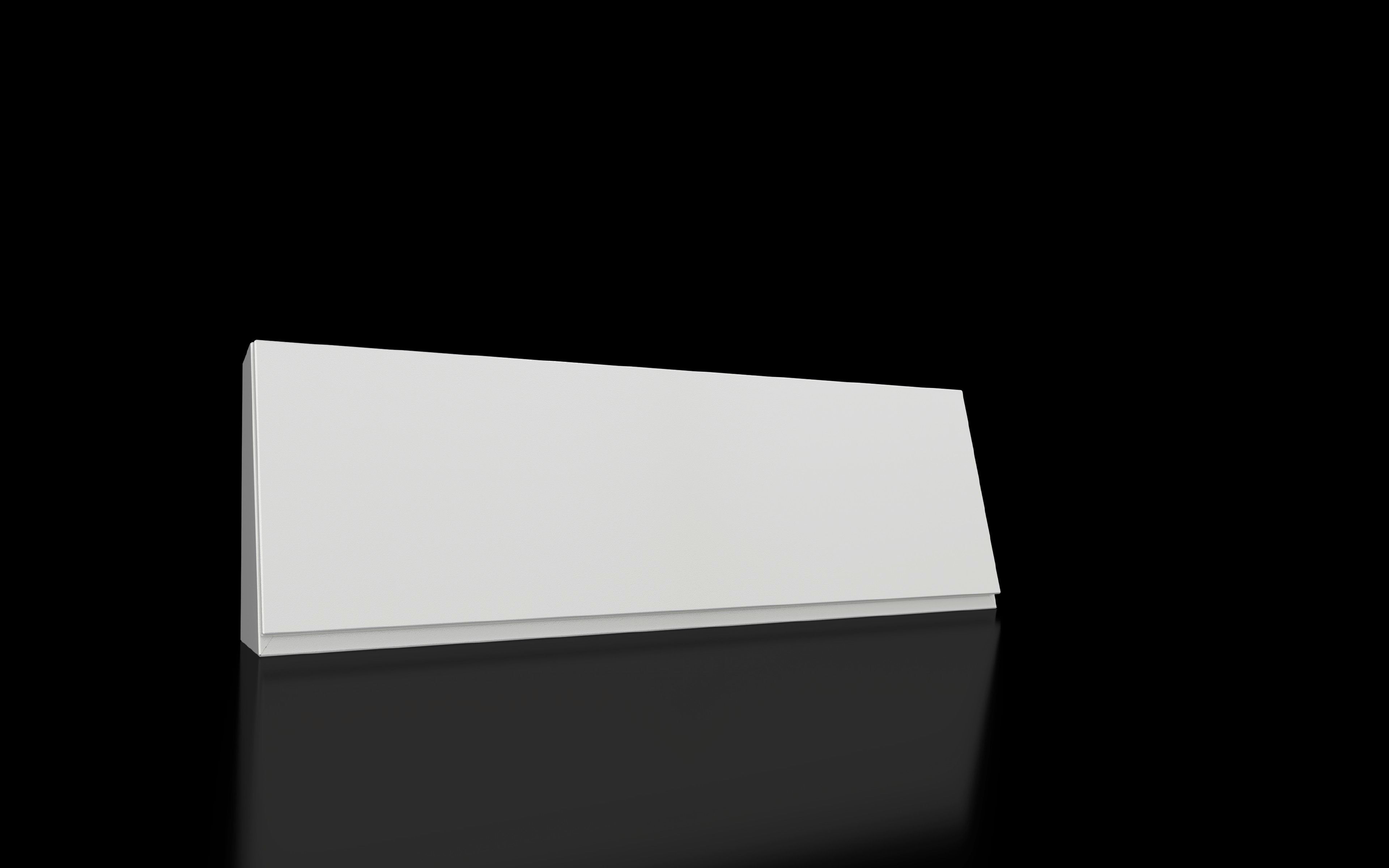

Rittal CX 6723.000 Console - IP55 IK10, 3-part assembly
Part Number: 6723000
Manufacturer
Rittal
Part number
6723000
Alt Part Number
CX 6723.000
Quick Summary
Rittal CX 6723.000 Console is a modular enclosure console designed for scalable 3‑part assembly in control cabinets. This approach helps engineers organize components and wiring without compromising access during servicing. The design supports reliable operation in demanding environments, with IP55 protection and IK10 impact resistance providing robust enclosure performance. Built from sheet steel with a durable textured powder-coated finish, it delivers long-term protection and predictable maintainability. For projects requiring flexible widths and quick upgrades, the CX console system reduces downtime and accelerates deployment while maintaining security and compliance across the facility.
Product Information
Extended Description
6723000 Rittal: CX console system, console for 3-part assembly, W: 1600 mm, sheet steel
Article number
CX 6723.000
Design
Console
Product description
Four widths create the ideal conditions for individual monitoring and three-piece assembly of the CX console system.
Material
Enclosure: Sheet steel 1.5 mm | Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
Colour
RAL 7035
Supply includes
Enclosure | Cover hinged at bottom, including cover retainer | Open base for individual cable entry | Lock: 3 mm double-bit
Dimensions
Width:Â 1,600 mm | Height:Â 515 mm
Depth (top)
125 mm
Depth (bottom)
245 mm
IK Code
IK10
Note
A desk unit and pedestal are required for a 3-part console assembly.
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Dimensions
Width:Â 1,600 mm | Height:Â 515 mm | Depth (top):Â 125 mm | Depth (bottom):Â 245 mm
Number of locks
3
Lock version
Cam
Lock insert
3 mm double-bit
Lock
Lock version:Â Cam | Number of locks:Â 3 | Lock insert:Â 3 mm double-bit
Packs of
1 pc(s).
Weight/pack
40 kg
Customs tariff number
94032080
EAN
4028177983649
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
CX console system, console for 3-part assembly, W: 1600 mm, sheet steel
Feature → Business Impact → Application: Four widths enable tailored monitoring layouts and modular three‑part assembly, accelerating project scoping and installation in large control cabinets. This flexibility translates to faster deployment, easier future upgrades, and reduced engineering effort across multiple SKUs and line configurations. Application: process automation cabinets, machine dashboards, and control rooms that demand scalable enclosure solutions. Feature → Business Impact → Application: Enclosure built from sheet steel 1.5 mm with a 2.0 mm door and a PU seal provides structural rigidity and environmental protection, extending service life in factory floors with dust and moisture exposure. Application: harsh manufacturing environments requiring durable protection. Feature → Business Impact → Application: Dipcoat primed, powder-coated exterior in textured finish delivers a low-maintenance surface that withstands cleaning and frequent handling. Application: high-traffic control enclosures and areas with rigorous cosmetic and corrosion considerations. Feature → Business Impact → Application: Three cam locks with 3 mm double-bit inserts deliver secure access control without compromising serviceability. Application: secure, multi-user access to critical panels. Feature → Business Impact → Application: Open base for cable entry and bottom-hinged cover simplify cable management and serviceability, reducing installation time and field downtime. Application: wiring, testing, and commissioning phases. Feature → Business Impact → Application: Overall dimensions of 1,600 mm width and 515 mm height balance space efficiency with internal room for components; weight per pack at 40 kg provides stable, manageable handling. Application: large-format consoles in industrial control panels with frequent reconfiguration. Feature → Business Impact → Application: The CX 6723.000 design supports 3‑part assembly including desk unit and pedestal, enabling modular ecosystems and scalable upgrades. Application: modular automation installations requiring phased deployment and future expansion.
Get a Quick Quote for a Rittal 6723000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6723000?
Enquire Now
FAQs
CX 6723.000 is designed for three‑part assembly within Rittal CX consoles. It ships with an open base for cable entry and a bottom-hinged cover, facilitating straightforward installation and future reconfigurations. The unit supports desk‑and pedestal integration, making it ideal for modular panel layouts in large control cabinets.
The CX 6723.000 features IP55 protection and IK10 impact resistance, built from sheet steel (enclosure 1.5 mm, door 2.0 mm) with an all‑round PU seal. The surface is primed with dipcoat and powder‑coated outside in a textured finish, offering durable protection in industrial environments.
This console is ideal for process automation, factory floor control cabinets, and machine dashboards where modular, scalable enclosure solutions are required. Its 1600 mm width and 3‑part assembly capability support large panels and phased upgrades common in manufacturing, food and beverage, and automotive sectors.
The product specifies IP55 and IK10 ratings, with a robust sheet‑steel construction and standardized locking. CE conformity depends on regional compliance and installation context; confirm with your supplier or local distributor to ensure full regulatory alignment for your market.
Modularity and open cable entries reduce commissioning time and upgrade costs, while the three‑lock security and durable finish lower maintenance and replacement needs. The combination of robust protection and flexible assembly translates to reduced downtime and a faster return on investment in evolving automation environments.
