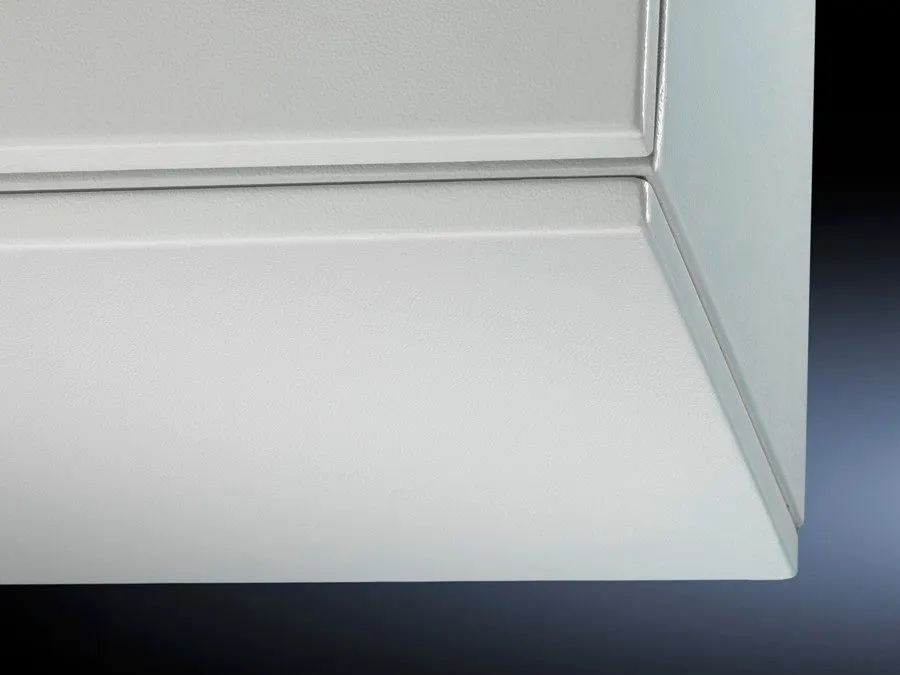

Rittal 6730110 TP Cover Plate for TP Pedestals - IP55
Part Number: 6730110
Quick Summary
Rittal 6730110 TP Cover Plate provides a robust cover for TP pedestal bases and tops. It helps prevent dust ingress and simplifies maintenance by concealing base openings and the top opening when pedestals are used. The product carries IP55 protection and NEMA 12 enclosure compatibility, signaling rugged performance in challenging industrial environments. Built from sheet steel with a textured finish in RAL 7035, it combines durability with a professional appearance. The included assembly parts expedite installation and ensure a secure fit, reducing commissioning time. For procurement teams, this cover plate translates to lower lifecycle costs and fewer unplanned service interruptions by protecting critical base infrastructure in standard TP pedestal configurations.
Product Information
Extended Description
6730110 Rittal: TP Cover plate, for TP, for WD: 800x500 mm
Article number
CM 6730.110
Product description
To conceal the entire base opening with CM or for covering the complete top opening when using the pedestals on their own.
Material
Sheet steel
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 24.5 mm
To fit
Enclosure type: TP pedestals | Width: = 800 mm | Depth: = 500 mm
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Packs of
1 pc(s).
Weight/pack
7 kg
Customs tariff number
94039910
EAN
4028177554405
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
TP Cover plate, for TP, for WD: 800x500 mm
Feature: Construction from sheet steel with a textured paint finish. Business impact: Delivers durable protection against mechanical wear and environmental exposure while maintaining a professional look in automation cabinets. Application: Ideal for TP pedestal enclosures in industrial automation and electrical installations. Feature: IP55 protection and NEMA 12 enclosure compatibility. Business impact: Reduces dust and water ingress risk, supports compliant installations in factory floors and machinery rooms. Application: Indoor and semi-enclosed environments where rugged protection is required. Feature: Fits 800x500 mm TP pedestals and 24.5 mm height; includes assembly parts. Business impact: Ensures precise fit and fast retrofit with minimal downtime. Application: Quick upgrades on existing TP pedestal setups. Feature: Material color and finish; weight; packaging. Business impact: Predictable logistics and consistent aesthetics with RAL 7035 finish; 7 kg per pack simplifies handling and inventory. Application: Module-ready for procurement in standard TP pedestal configurations; assembly parts included help streamline rollout.
Get a Quick Quote for a Rittal 6730110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6730110?
Enquire Now
FAQs
The cover plate is designed for TP pedestals with an 800x500 mm footprint. It ships with assembly parts that align to the pedestal bases and top openings; secure the plate using the provided hardware to achieve a flush, protective finish without modifying the enclosure.
Key specs include sheet steel construction, textured paint surface, color RAL 7035, IP55 protection, and NEMA 12 enclosure compatibility. It weighs 7 kg per pack and fits TP pedestals sized 800x500 mm, with a mounting height of 24.5 mm and included assembly parts.
Yes. With IP55 protection and NEMA 12 compatibility, the plate protects openings from dust and moisture in factory floors, control rooms, and other semi-enclosed industrial settings, while maintaining a professional appearance and easy maintenance.
The product aligns with IP55 and NEMA 12 protection standards; it is cataloged under ETIM EC002620 and ECLASS 27189261, with the EAN 4028177554405 providing unique identification for procurement and catalog systems.
By sealing base openings and top openings, the cover plate reduces ingress, lowers cleaning and maintenance needs, and minimizes unplanned downtime. Its included assembly parts shorten installation time, supporting faster project rollouts and longer base infrastructure life.
