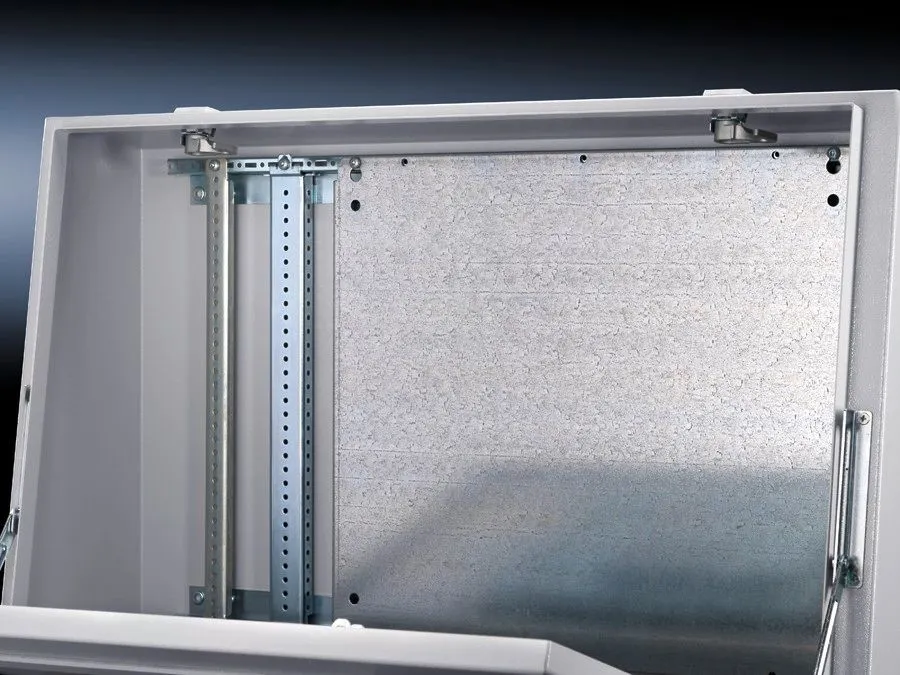

Rittal 6730330 Partial mounting plates - Zinc-plated
Part Number: 6730330
Quick Summary
Rittal 6730330 TP Partial mounting plates enable easy locatable mounting on TS, TP, and WD interior installation rails. For engineers and procurement teams, misalignment and fiddly assembly steps slow projects and drive up labor costs. This accessory uses sheet-steel construction with a zinc-plated finish, designed to fit enclosure types TP, TS, and VX SE, providing durable, repeatable mounting in demanding environments. By offering bayable side-fastening and ready-made assembly parts, the plates streamline rework and future reconfigurations. The result is faster commissioning, lower field adjustments, and a consistent internal mounting footprint across multiple enclosures, supporting standardized rack layouts and improved cable management in control panels and desk-unit interiors.
Product Information
Extended Description
6730330 Rittal: TP Partial mounting plates, locatable, for TS, SE, TP, WD: 500x437 mm
Article number
TP 6730.330
Product description
For easy mounting on pre-fitted assembly screws.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Console and desk unit on the interior installation system rails
Note
Bayable by screw-fastening at the sides
Dimensions
Width: 500 mm | Height: 437 mm
To fit
Enclosure type: TP | TS | VX SE
Packs of
1 pc(s).
Weight/pack
4.8 kg
PCF per pack (cradle-to-gate)
18.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177554481
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP Partial mounting plates, locatable, for TS, SE, TP, WD: 500x437 mm
Locatable mounting design keeps alignment precise and reduces rework by ensuring the plate seats correctly against pre-fitted screws, cutting installation time in half for typical panel upgrades. This yields tangible business impact: faster project turnover, fewer field adjustments, and lower labor costs on busy plant floors. The plate's sheet steel construction with zinc plating delivers robust durability and corrosion resistance in demanding environments, translating to longer service life and lower maintenance overhead. Flexible installation options—console and desk unit on interior installation system rails—mean a single accessory supports multiple workspace configurations, simplifying procurement and inventory. Bayable by screw-fastening at the sides enables rapid reconfiguration without full disassembly, reducing downtime during layout changes. Pack details (one plate per pack, 4.8 kg) support predictable logistics and stocking for multi-line installations, while compatibility with TP, TS, and VX SE enclosures minimizes the need for part diversity and streamlines project planning.
Get a Quick Quote for a Rittal 6730330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6730330?
Enquire Now
FAQs
Yes. The TP 6730.330 is designed to fit enclosure types TP, TS, and VX SE, providing 500 mm width and 437 mm height compatibility for interior installation rails. This ensures a uniform mounting footprint across multiple Rittal families, reducing the need for separate mounting kits and simplifying on-site configuration.
Begin by locating the plate against the interior installation rails and align with pre-fitted assembly screws. Bay the plate at the sides using screw-fastening to secure positioning. Attach any required ancillary parts included in the pack, then verify alignment and cable routing. This approach minimizes misalignment and speeds commissioning while preserving panel integrity.
Absolutely. The product is specified for console and desk unit installations on interior installation system rails, enabling secure, space-efficient mounting within control panels and workstation enclosures. The design supports flexible layouts and helps maintain consistent mounting dimensions across different workstation configurations.
The provided dataset details material (sheet steel) and finish (zinc-plated) along with dimensional and packaging data, but does not explicitly list CE, SIL, or IP ratings. Users should refer to the official datasheet for any regulatory markings or project-specific compliance requirements and verify current certifications with Rittal if needed.
The plates provide a consistent mounting footprint across multiple enclosure families, reducing part diversity and inventory needs. They support faster commissioning, easier reconfigurations, and diminished downtime, delivering a clear return on investment through lower labor costs, streamlined logistics, and durable, corrosion-resistant mounting suitable for industrial environments.
