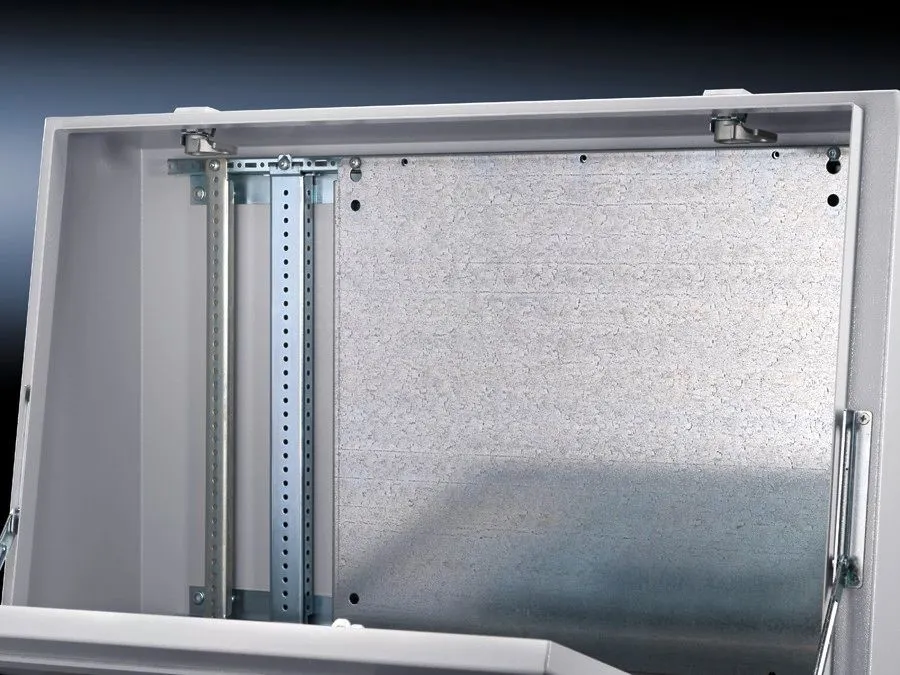

Rittal TP 6730.340 Partial mounting plates - 700x437 mm
Part Number: 6730340
Quick Summary
Rittal TP 6730.340 Partial mounting plates are locatable mounting components designed for TS, TP, and VX SE enclosures to simplify interior installation on system rails. When mounting in confined spaces, traditional methods slow projects and increase error rates; these plates reduce setup time with pre-fitted assembly screws and side-fastening baying. They align with ETIM EC000784 and ECLASS 27180504 standards, providing clear, industry-recognized classification. The 700x437 mm footprint, zinc-plated sheet steel construction, and included installation parts deliver reliable performance in harsh environments, while maintaining compatibility with console and desk-unit configurations on interior rails for flexible, scalable installations.
Product Information
Extended Description
6730340 Rittal: TP Partial mounting plates, locatable, for TS, SE, TP, WD: 700x437 mm
Article number
TP 6730.340
Product description
For easy mounting on pre-fitted assembly screws.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Console and desk unit on the interior installation system rails
Note
Bayable by screw-fastening at the sides
Dimensions
Width: 700 mm | Height: 437 mm
To fit
Enclosure type: TP | TS | VX SE
Packs of
1 pc(s).
Weight/pack
6.7 kg
PCF per pack (cradle-to-gate)
25.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177559417
ETIM 9
EC000784
ECLASS 8.0
27180504
Product description
TP Partial mounting plates, locatable, for TS, SE, TP, WD: 700x437 mm
Feature: Locatable, bayable mounting plates allow precise positioning and easy side-fastening. Business Impact: Reduces alignment errors and installation time, lowering field labor costs. Application: Ideal for rapid deployment in TS, TP, and VX SE enclosures on interior rails. Feature: Large 700x437 mm footprint standardizes space planning and inventory, improving project predictability. Business Impact: Simplifies enclosure layout across multiple systems, enabling faster quoting and procurement. Application: Fits a wide range of Rittal configurations for console and desk-unit installations. Feature: Sheet steel with zinc-plated surface delivers durable corrosion resistance. Business Impact: Extends service life in challenging electrical environments, lowering maintenance intervals. Application: Suitable for high-traffic control panels and telecom racks. Feature: Assembly parts included streamline initial fitment. Business Impact: Reduces onsite parts sourcing and downtime; accelerates commissioning. Application: Installers can complete mounting with minimal additional components. Feature: Weight of 6.7 kg per pack and cradle-to-gate PCF of 25.5 kg CO2 eq (Cat B). Business Impact: Clear environmental profiling supports sustainability reporting and lifecycle decisions. Application: Aligns with green procurement practices and regulator-friendly product footprints.
Get a Quick Quote for a Rittal 6730340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6730340?
Enquire Now
FAQs
TP 6730.340 plates are locatable and bayable on the interior installation rails, designed to mount directly to pre-fitted assembly screws. They support console and desk-unit configurations, enabling precise alignment and quick deployment without additional custom hardware. This reduces field adjustment time and speeds up panel assembly.
The plates measure 700 mm wide by 437 mm high and are manufactured from sheet steel with a zinc-plated finish. Each pack weighs 6.7 kg and includes assembly parts for straightforward installation on TS, TP, and VX SE enclosures. Material choice provides durability and corrosion resistance in typical electrical cabinet environments.
Yes, TP 6730.340 aligns with ETIM EC000784 and ECLASS 8.0 27180504 classifications, supporting standard B2B data and procurement workflows. While not listed with a specific CE mark in the data, the product specifications and material choices meet common industry requirements for interior mounting components used in commercial enclosures.
Installation options include console and desk-unit mounting on interior rails, with baying achievable by side-fastening screws. The plates are designed for enclosure types TP, TS, and VX SE, ensuring broad compatibility across Rittal systems. This compatibility simplifies stock management and helps ensure a uniform mounting approach across product families.
The product carries a cradle-to-gate PCF of 25.5 kg CO2 eq (Category B) and weighs 6.7 kg per pack, illustrating a transparent environmental profile. The durable zinc-plated steel extends service life, reducing replacement costs and downtime, while time saved on installation translates into faster project completion and improved total cost of ownership.
