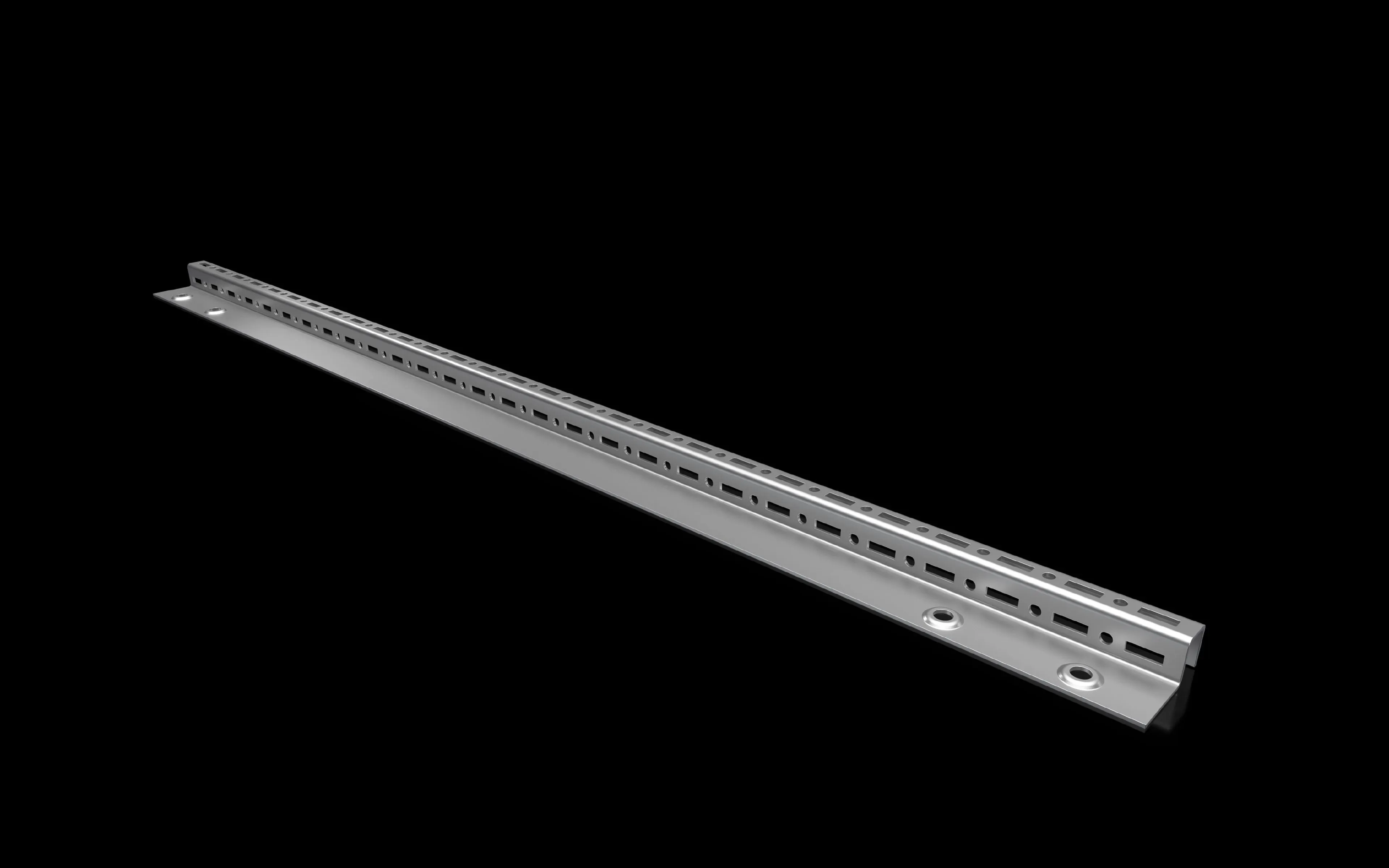

Rittal SZ 6730.710 Rail - Interior Installation Zinc-Plated
Part Number: 6730710
Quick Summary
SZ 6730.710 rail for interior installation mounts securely inside CX enclosures for CX consoles and WH configurations. Engineers often struggle with misalignment and slow assembly when upgrading interior rails. This rail uses sheet steel with a zinc-plated finish for durability and is designed to fit 800 mm CX configurations with a 700 mm length. For regulatory alignment, verify CE conformity and any IP or SIL considerations in the official datasheet, and reference the enclosure system brochure for compatibility. Selecting these rails can reduce installation time, standardize interior mounting across CX modules, and improve serviceability during ongoing maintenance.
Product Information
Extended Description
6730710 Rittal: SZ rail for interior installation, for CX, for WH: 800 mm
Article number
SZ 6730.710
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
700 mm
Assembly instruction
To configure the 1600 mm wide CX console and desk units and lid, you will need 2x CX interior installation rails, each 800 mm in length.
Note
Please observe the assembly instructions or PE conductor brochure for the relevant enclosure or case system.
To fit
Enclosure type: CX one-piece console | CX desk unit | CX pedestal | Width: = 800 mm | Height: = 970 mm
Packs of
4 pc(s).
Customs tariff number
94039910
EAN
4028177983564
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
SZ rail for interior installation, for CX, for WH: 800 mm
Feature: Zinc-plated sheet steel construction delivers corrosion resistance and long-term durability in industrial environments. Benefit: Extends service life in cabinets and enclosures, reducing maintenance costs and downtime when configuring CX interiors. Application: Ideal for CX interior installations in harsh manufacturing settings where reliability matters.Feature: 700 mm rail length and 800 mm fitment guidance enable precise alignment within CX systems. Benefit: Improves mounting accuracy and reduces iterative adjustments during assembly, boosting installation efficiency. Application: Use when configuring CX one-piece consoles, desks, or pedestals within the 800 mm width category.Feature: Supplied assembly parts and packaged in packs of four. Benefit: Simplifies stocking, procurement, and on-site turnkey installation with predictable inventory needs. Application: Stock for multi-unit CX installations or upgrades to multiple enclosures.Feature: Compatibility with CX interior rails for 1600 mm wide consoles (requires two 800 mm rails). Benefit: Enables scalable configurations without custom fabrication, lowering project lead times. Application: Fast-track larger CX console setups in control rooms or panel areas.Feature: Clear installation instructions and note to follow relevant brochures. Benefit: Reduces risk of misassembly and ensures proper conductor routing and safety compliance. Application: Refer to assembly instructions for accurate installation of CX systems and PE conductor guidance.
Get a Quick Quote for a Rittal 6730710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6730710?
Enquire Now
FAQs
The SZ 6730.710 rail is designed for interior installation in CX enclosures, supporting CX one-piece consoles, CX desk units, and CX pedestals. It aligns with an 800 mm wide configuration and is suitable for use in WH setups as part of CX interior mounting schemes, providing secure, modular support for interior components.
Each pack includes assembly parts necessary for mounting, and rails are supplied in packs of four pieces. This packaging supports multi-unit CX installations and streamlines procurement by providing a standard, repeatable kit for interior rails.
To configure a 1600 mm CX console, you will need two 800 mm interior installation rails (the SZ 6730.710 corresponds to the 700 mm rail length, while the assembly instructions indicate using two 800 mm rails in this wider setup). Follow the CX enclosure assembly instructions for accurate alignment, bolt positions, and wiring clearance to ensure a robust, code-compliant installation.
The SZ 6730.710 rail utilizes sheet steel with a zinc-plated finish, delivering good corrosion resistance and mechanical strength. This combination is well-suited for demanding industrial settings, helping maintain structural integrity and appearance over time, while minimizing maintenance needs during routine enclosure upgrades or reconfigurations.
Always verify the exact regulatory certifications in the official datasheet and enclosure brochure. Look for CE conformity and any applicable IP or functional safety considerations, as these details may vary by region and system. When in doubt, consult Rittal documentation or support to ensure the rail meets your installation’s compliance requirements.
