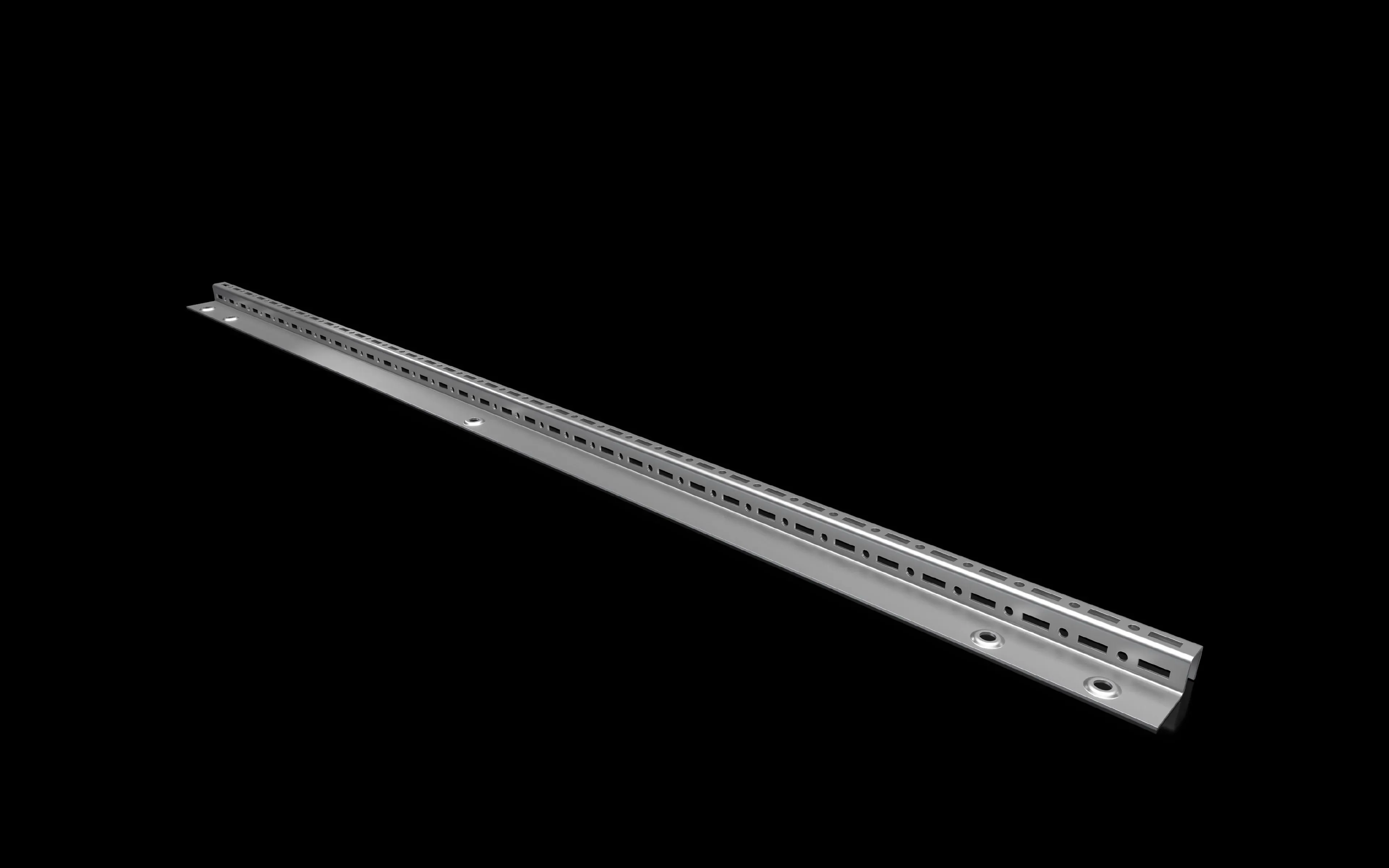

Rittal SZ 6730.720 Rail - for CX interior, Zinc-plated
Part Number: 6730720
Quick Summary
SZ 6730.720 rail serves as a reliable interior mounting solution for CX enclosures in control rooms and switchgear assemblies. Engineers struggle with misaligned components and time-consuming setup; this rail streamlines attachment and helps maintain precise spacing. Typical industrial standards such as CE compliance and IP-rated accessories guide safe, durable installations; verify certifications during procurement. With zinc-plated sheet steel and a 900 mm length, it delivers robust support and easy compatibility with CX one-piece consoles for scalable architectures. This product ships in packs of four, along with assembly parts, enabling efficient rollout across multiple panels and growing automation needs.
Product Information
Extended Description
6730720 Rittal: SZ rail for interior installation, for CX, for WH: 1000 mm
Article number
SZ 6730.720
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Length
900 mm
Note
Please observe the assembly instructions or PE conductor brochure for the relevant enclosure or case system.
To fit
Enclosure type: CX one-piece console | Width: = 1,000 mm
Packs of
4 pc(s).
Customs tariff number
94039910
EAN
4028177983557
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
SZ rail for interior installation, for CX, for WH: 1000 mm
Feature: Interior mounting rail for CX enclosures and WH variants. Business impact: Provides secure, repeatable mounting that reduces misalignment and assembly time in panel builds. Application: Ideal for 1000 mm width CX enclosures in control rooms and machine cells, supporting scalable panel architectures. Feature: 900 mm length with three-sided system punchings. Business impact: Allows quick alignment with existing threaded bolts, minimizing field drilling and rework. Application: Saves commissioning time during cabinet upgrades and retrofits. Feature: Sheet steel with zinc-plated surface finish. Business impact: Delivers corrosion resistance and long-term reliability in harsh industrial environments. Application: Suitable for switchgear cabinets and interior installations exposed to humidity or cleaning processes. Feature: Includes assembly parts. Business impact: Reduces procurement delays and part mismatches, accelerating project timelines. Application: Streamlines stocking and installation across multi-panel deployments. Feature: Compatibility with CX one-piece console (width 1000 mm). Business impact: Ensures seamless integration and uniform mounting standards across installations. Application: Supports standardized factory layouts and easy scalability. Feature: Clear installation note and guidance. Business impact: Helps technicians follow best practices, improving safety and compliance. Application: Important for consistent assembly in complex enclosures. Insight: ETIM EC002620 and ECLASS 27189234 mappings support data-driven procurement and cataloging, aligning with industry data standards.
Get a Quick Quote for a Rittal 6730720
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6730720?
Enquire Now
FAQs
The SZ 6730.720 rail serves as an interior mounting solution for CX enclosures, enabling secure attachment to the existing threaded bolts and providing a stable 900 mm mounting medium for devices and components within the cabinet. It’s ideal for CX one-piece consoles and helps standardize interior layouts across control panels.
The rail is designed with system punchings on three sides to align with existing bolt patterns, while the 900 mm length provides ample support. It ships with assembly parts, reducing the need for additional hardware and minimizing field adjustments during installation.
Yes. The product is specified to fit enclosure type CX one-piece consoles with a width of 1,000 mm, ensuring a cohesive mounting framework within established CX-based layouts and enabling scalable integration across multiple panels.
Follow the included assembly parts and the relevant enclosure or PE conductor brochure. Observing the recommended assembly instructions ensures correct alignment, safe torque on fasteners, and optimal clearance for cable management and accessory fitment.
Choosing SZ 6730.720 offers efficiency through included assembly parts, packs of four for multi-panel deployments, and a standard 900 mm dimension that fits CX systems. This reduces procurement complexity, accelerates rollout, and minimizes field modification time, delivering a lower total cost of ownership in automation cabinets.
