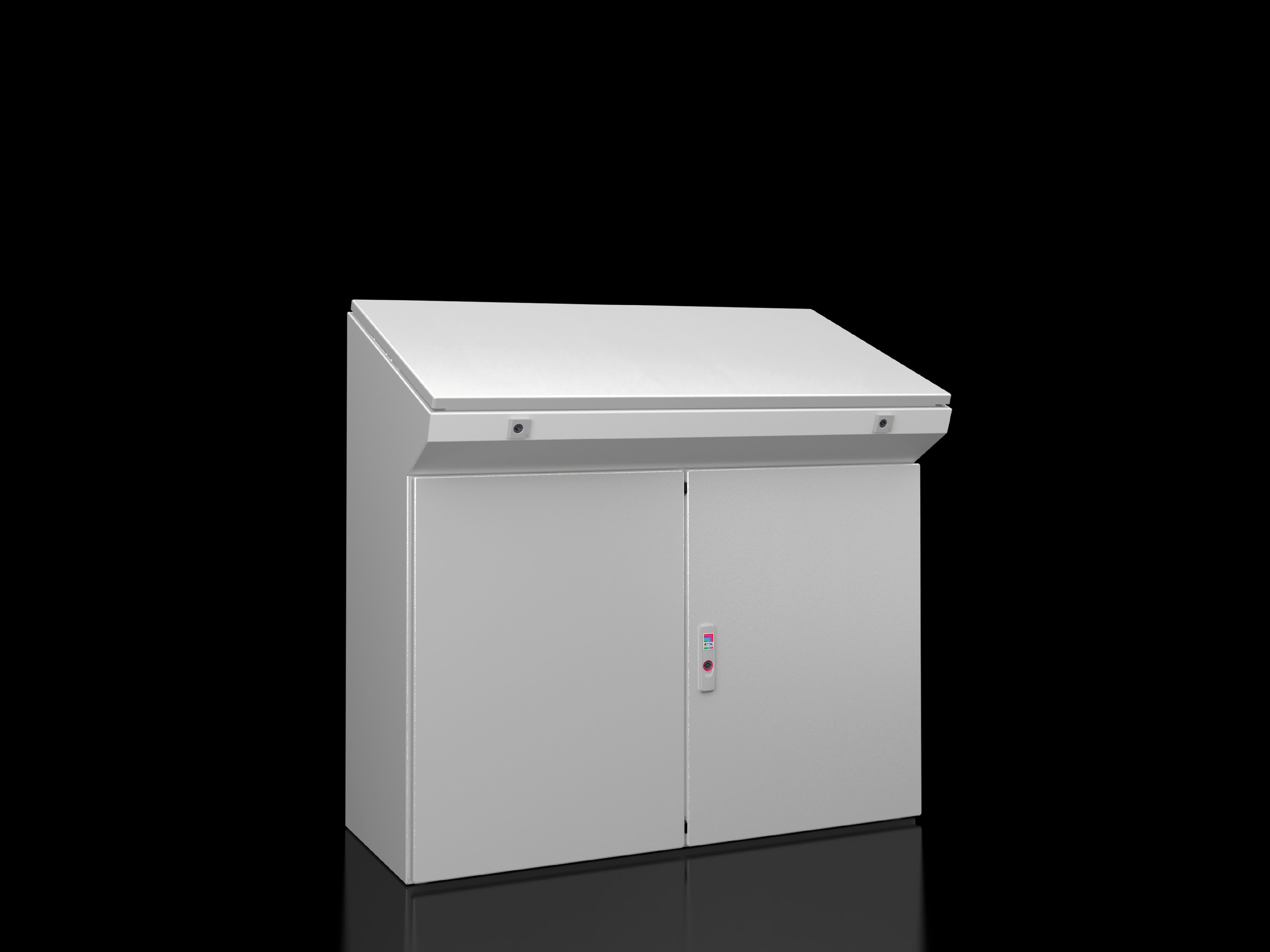

Rittal 6740600 TP 6740.600 One-piece Console - IP55
Part Number: 6740600
Manufacturer
Rittal
Part number
6740600
Alt Part Number
TP 6740.600
Quick Summary
Rittal 6740600 TP 6740.600 One-piece Console is a reliable control and monitoring console for industrial enclosures. It helps engineers simplify panel layouts and reduce installation time with a large mounting plate and included gland plates for straightforward cable routing. The design targets protection and durability, with IP55, IK08 and NEMA 12 compatibility ensuring robust performance in harsh environments. This solution also supports scalable infrastructure through a standardized mounting plate and compatible enclosure accessories, delivering value across automation projects and facility upgrades. For buyers, the unit combines rugged construction with installation efficiency, aligning with enclosure and electrical infrastructure needs.
Product Information
Extended Description
6740600 Rittal: TP one-piece console, WHD1: 1000x975x400/D2: 500 mm, sheet steel
Article number
TP 6740.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double door at front, with locking rod | Mounting plate | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Gland plates
Dimensions
Width:Â 1,000 mm | Height:Â 975 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
930 mm x 900 mm
Depth (top)
500 mm
Depth (bottom)
400 mm
Number of doors
2
IK Code
IK08
Note
Positioning slide VX 5051.172 can be used as a mounting aid for base/plinth system VX in its new design
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Sheet steel
Dimensions
Width:Â 1,000 mm | Height:Â 975 mm | Depth (top):Â 500 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
85 kg
Customs tariff number
94032080
EAN
4028177959941
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP one-piece console, WHD1: 1000x975x400/D2: 500 mm, sheet steel
Feature → Business Impact → Application: Large mounting plate (930 x 900 mm) enables direct mounting of HMI, controllers and power components, shortening assembly time and reducing need for additional adapters; Application: control panels in machine rooms and production lines. Feature → Business Impact → Application: IP55 protection and IK08 impact resistance safeguard critical electronics from dust, moisture and mechanical shocks; Application: factory floors, outdoor-adjacent equipment, and high-traffic environments. Feature → Business Impact → Application: Supplied with enclosure, solid back and sides, front doors with locking rod, rear-hinged cover and automatic locking; Application: plug-and-play installation with secure access and consistent sealing. Feature → Business Impact → Application: Included two-part gland plates allow clean, compliant cable routing from the outset; Application: reduces wire routing complexity in control cabinets. Feature → Business Impact → Application: Powder-coated exterior and zinc-plated mounting plate extend service life and maintain appearance; Application: long-term reliability in process industries and equipment halls. Feature → Business Impact → Application: Two-door configuration (front) with VX positioning aid compatibility supports modular expansion and base/plinth systems; Application: scalable installations with VX mounting aids in evolving automation environments.
Get a Quick Quote for a Rittal 6740600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6740600?
Enquire Now
FAQs
Begin by preparing the enclosure opening and mounting the plate to the cabinet frame using the provided hardware. Align the console, secure through the mounting points, and connect the gland plates for cable entry. The VX mounting aid can simplify alignment for base/plinth systems, while the rear-hinged cover facilitates tool-free access during wiring and commissioning.
The console measures 1000 mm wide, 975 mm high, with a top depth of 500 mm and bottom depth of 400 mm, plus a mounting plate of 930x900 mm. These dimensions fit standard 1000 mm wide enclosures and support typical control panels, ensuring straightforward replacement or upgrade without major rework.
Yes. It features IP55 protection for dust and water ingress, IK08 impact resistance, and NEMA 12 compatibility, making it suitable for demanding factory floors and process environments. The sheet steel construction and textured powder coating further enhance durability in harsh settings.
The package includes the enclosure with solid back and sides, a front door set with locking rod, mounting plate, a rear-hinged cover with two stays, automatic locking, and gland plates. This reduces additional hardware sourcing and speeds up deployment in new builds or retrofits.
The integrated mounting plate and gland plates streamline wiring and reduce labor costs during installation. Durable build and protective ratings minimize downtime from dust, moisture, or impacts. The compatibility with VX mounting aids and the sturdy, long-lasting finish lower total cost of ownership over the product lifecycle.
