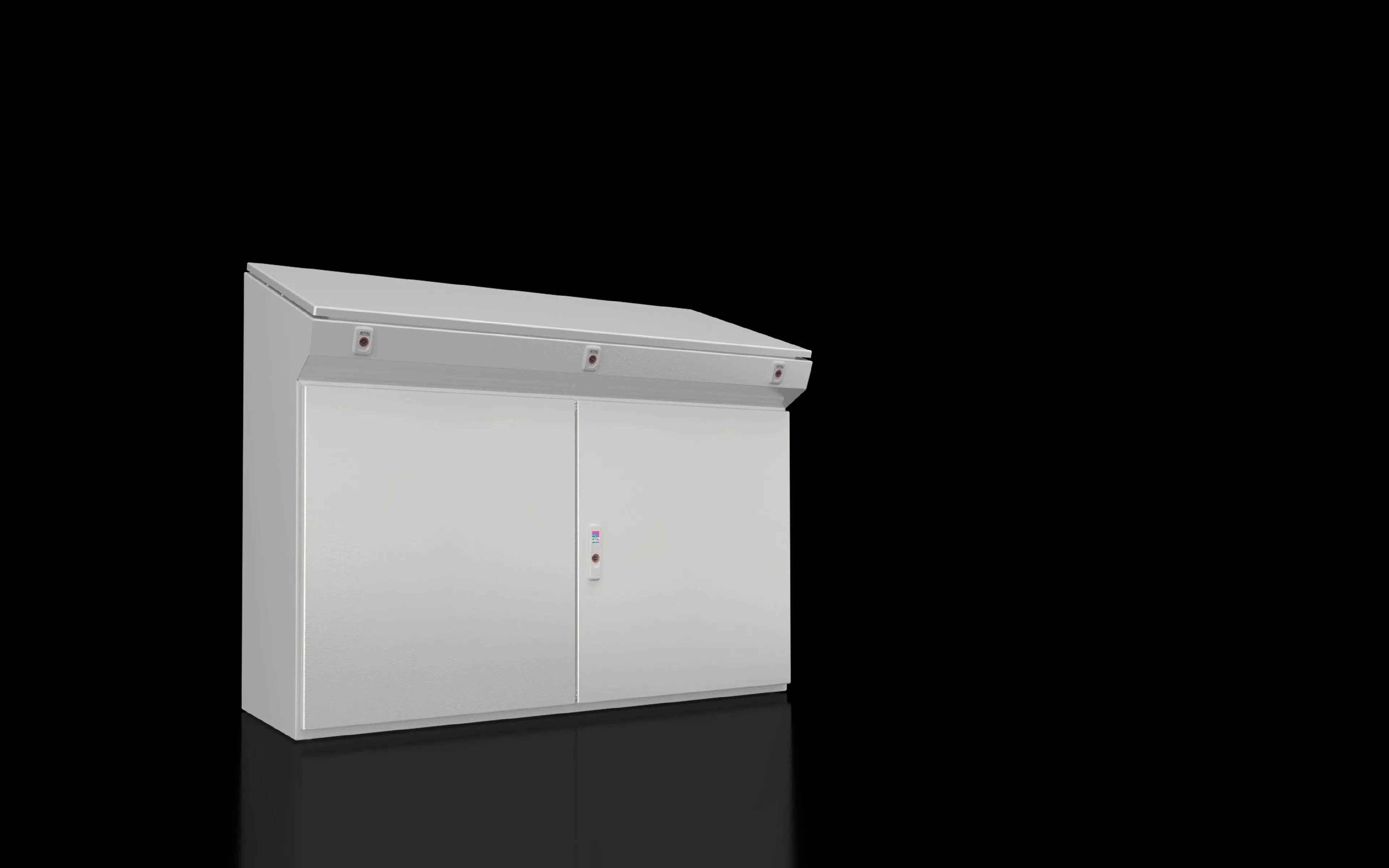

Rittal CX 6742.000 One-piece console - IP 55 protection
Part Number: 6742000
Manufacturer
Rittal
Part number
6742000
Alt Part Number
CX 6742.000
Quick Summary
CX 6742.000 is a one-piece console designed for operator control and monitoring in industrial enclosures. It supports a wide mounting plate and provides accessible, secure operation in demanding environments. Many users struggle with durable protection without sacrificing serviceability; this console addresses that by delivering IP 55 protection, IK10 impact resistance, and a robust sheet steel construction. The design integrates a 3-point locking system, cam locks, and a rear-hinged cover for reliable closure and easy maintenance. With a powder-coated exterior and a zinc-plated mounting plate, it combines durability with corrosion resistance. This solution fits into standard enclosure ecosystems while meeting ETIM and ECLASS classifications, ensuring procurement alignment. Secondary benefits include predictable installation timing and reduced custom fabrication, enabling faster project delivery and lower lifecycle costs.
Product Information
Extended Description
6742000 Rittal: CX one-piece console, WxHxD: 1200x970x400 mm, sheet steel
Article number
CX 6742.000
Design
One-piece consoles
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 2.5 mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double-door at front, with 3-point locking system | Mounting plate | Cover with cam locks, hinged at the rear, 2 stays with automatic latching. Automatic unlatching on the left, manual on the right. | Gland plate | Lock: 3 mm double-bit
Dimensions
Width:Â 1,200 mm | Height:Â 970 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
1,120 mm x 900 mm
Depth (top)
495 mm
Depth (bottom)
400 mm
Number of doors
2
IK Code
IK10
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Dimensions
Width:Â 1,200 mm | Height:Â 970 mm | Depth (top):Â 495 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
86.8 kg
Customs tariff number
94032080
EAN
4028177983625
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
CX one-piece console, WxHxD: 1200x970x400 mm, sheet steel
Feature: One-piece CX console with a large mounting plate simplifies installation and cable management. Business impact: accelerates cabinet integration, reduces field wiring time, and minimizes assembly errors. Application: ideal for operator control and monitoring in automated production lines. Feature: IP 55 protection and IK10 impact resistance safeguard critical electronics from dust, water exposure, and mechanical shocks. Business impact: reduces unplanned downtime and extends component life in harsh environments. Application: suitable for machine guard enclosures and process equipment in moderate washdown areas. Feature: Durable materials and textured powder-coated exterior with a zinc-plated mounting plate provide long-term corrosion resistance. Business impact: lowers maintenance costs and extends service intervals. Application: suitable for outdoor or warehouse environments where exposure to moisture and handling occurs. Feature: Included mounting plate (1120 x 900 mm) and a substantial overall size (WxHxD 1200 x 970 x 400 mm) enable flexible layout planning and pathway routing. Business impact: enables standardization across multiple stations, reducing design and fabrication time. Application: supports consistent fit within Rittal enclosure families and modular systems. Feature: Locking and security features, including a 3-point locking system, cam locks, and automatic latch concepts, provide secure access control. Business impact: improves asset protection, simplifies maintenance scheduling, and streamlines door service. Application: ideal for high-traffic control panels in manufacturing and process industries. Feature: Supplied components such as a solid back and sides, gland plate, and door arrangement with front access streamline procurement and maintenance planning. Business impact: reduces the need for separate accessories and accelerates project delivery. Application: supports fast retrofit projects and upgrades within existing enclosures. Industry insight: The CX series aligns with ETIM 9/ETIM 8 and ECLASS 8.0 classifications, enabling consistent supplier data and smoother procurement workflows across automation projects.
Get a Quick Quote for a Rittal 6742000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6742000?
Enquire Now
FAQs
Install the console using the included mounting plate (1120 x 900 mm) and secure the front with the 3-point locking system and cam locks. The rear-hinged cover allows easy access during commissioning, while the gland plate simplifies cable entry. Ensure IP 55 seals are intact for protection in humid or dusty environments.
The enclosure features an IP 55 rating with gasket-sealed doors and all-round PU seals, along with robust sheet steel construction and corrosion-resistant finishes. IK10 provides impact protection, reducing risk from incidental knocks in busy control areas.
Yes. The mounting plate is 1,120 x 900 mm, designed to fit standard CX mounting footprints and to integrate smoothly with other CX-series components, enabling consistent layouts across multiple stations.
Leverage the rear-hinged door and automatic unlatching on the left to access internal components quickly. The 3-point locking system and cam locks improve security, while the galvanized mounting plate and powder-coated finish reduce corrosion and maintenance frequency.
Manufacturing, process industries, and machine builders who require robust operator control surfaces in harsh environments. The combination of IP 55/IK10 protection, easy service access, and standard ETIM/ECLASS classifications supports efficient procurement and reliable operation in automation projects.
