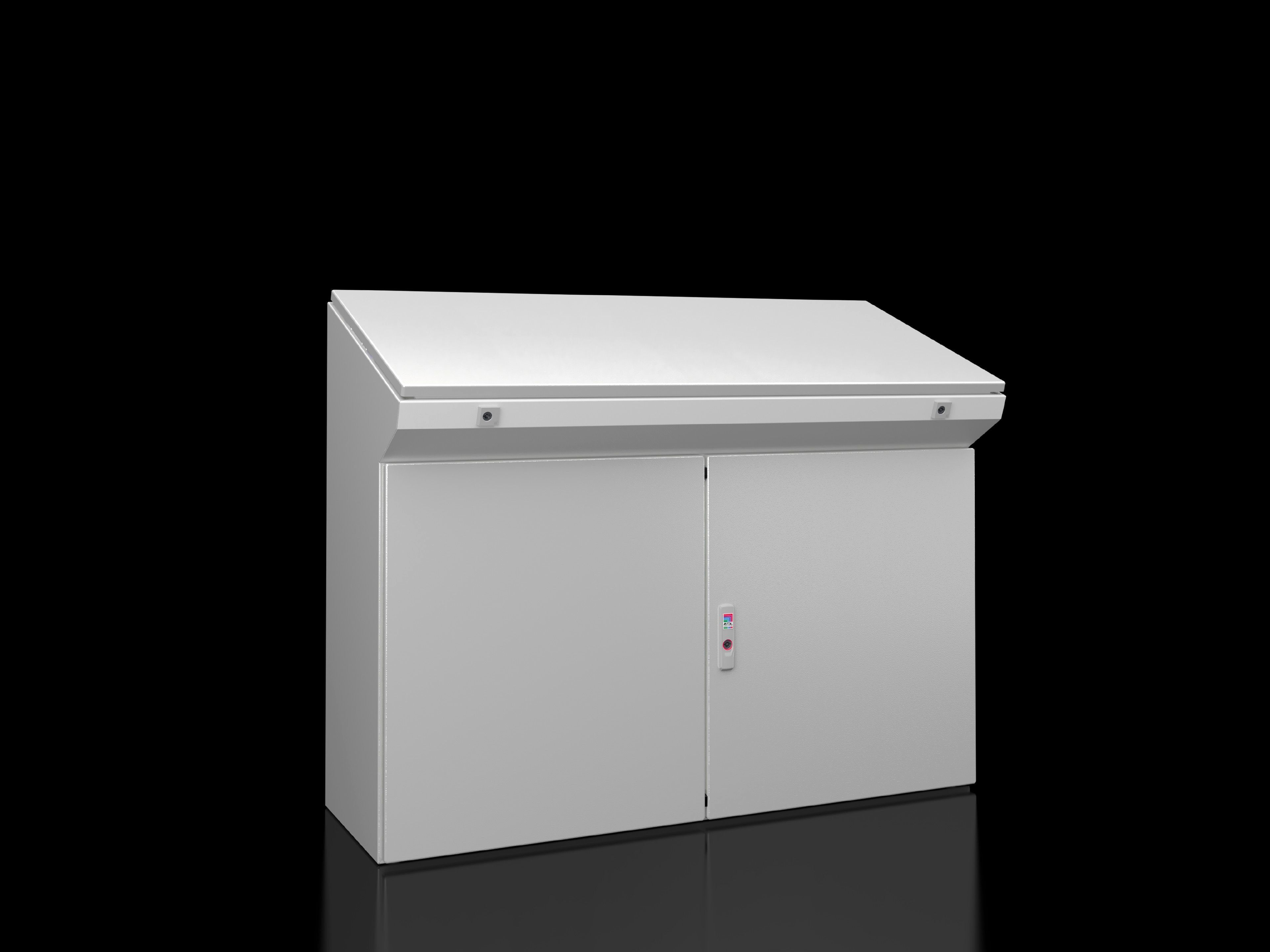

Rittal 6742600 One-piece Console WHD1 1200x975 - IP55
Part Number: 6742600
Manufacturer
Rittal
Part number
6742600
Alt Part Number
TP 6742.600
Quick Summary
Rittal 6742600 one-piece console is designed to streamline operator access and monitoring inside industrial control cabinets. For engineers wrestling with crowded panels and tangled cabling, the large mounting plate and included gland plates reduce installation time and errors. This enclosure meets IP55 protection and IK08 impact resistance, with NEMA 12 compatibility providing resilience in demanding environments. The combination of a robust sheet-steel build and AX lock plate delivers a uniform, professional appearance while supporting scalable automation projects. In addition, the mounting plate and cable routing options enhance efficiency, helping you meet project timelines and reduce field commissioning costs.
Product Information
Extended Description
6742600 Rittal: TP one-piece console, WHD1: 1200x975x400/D2: 500 mm, sheet steel
Article number
TP 6742.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double door at front, with locking rod | Mounting plate | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Gland plates
Dimensions
Width:Â 1,200 mm | Height:Â 975 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
1,130 mm x 900 mm
Depth (top)
500 mm
Depth (bottom)
400 mm
Number of doors
2
IK Code
IK08
Note
Positioning slide VX 5051.172 can be used as a mounting aid for base/plinth system VX in its new design
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Sheet steel
Dimensions
Width:Â 1,200 mm | Height:Â 975 mm | Depth (top):Â 500 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
95 kg
Customs tariff number
94032080
EAN
4028177959958
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP one-piece console, WHD1: 1200x975x400/D2: 500 mm, sheet steel
The TP 6742.600 uses a sheet steel enclosure with reinforced doors, delivering a durable barrier against dust, moisture, and incidental impact; this reduces maintenance costs and downtime in active facilities. The large mounting plate (1130 x 900 mm) enables straightforward internal layout and cable routing, which shortens installation time and improves serviceability in complex automation cabinets. The supplied two-part gland plates simplify entry management for multiple cables, enabling compliant, tidy wiring and easier future upgrades. With IP55 protection and IK08 impact resistance, the console performs reliably in harsh factory floors and outdoor-adjacent locations without special enclosures, supporting compliance with industrial safety standards. The AX lock plate ensures a consistent external appearance across assemblies, reducing rework during panel commissioning and maintenance. Compatibility with VX mounting aids, such as the VX 5051.172 positioning slide, offers flexible plinth-based mounting for modular electrical infrastructure, streamlining installation in scalable automation systems. The front dual-door design provides secure access for routine maintenance while preserving inner security, and the included back and side panels improve backplane isolation for sensitive electronics. Overall, the TP 6742.600 delivers a robust, adaptable enclosure solution that minimizes installation variance and accelerates project delivery in electrical infrastructure environments.
Get a Quick Quote for a Rittal 6742600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6742600?
Enquire Now
FAQs
For optimal installation, plan the 1130 x 900 mm mounting plate footprint, accommodate front-door access with two doors, and leverage the supplied gland plates for tidy cable entry. The rear cover remains hinged with automatic locking for maintenance access, while the VX mounting aid (VX 5051.172) can simplify mounting on plinth systems.
Yes. The positioning slide VX 5051.172 is designed as a mounting aid for VX base/plinth systems in its new design, enabling quick integration of the console into modular enclosures and ensuring stable, vibration-resistant mounting in busy automation environments.
The console uses sheet steel construction with 1.5 mm body, 2.0 mm doors, and 3.0 mm mounting plate. It achieves IP55 protection per IEC 60529 and IK08 impact resistance, delivering reliable operation in dusty, damp, and moderately rugged environments.
Two-part gland plates are included with the enclosure, enabling straightforward, clean cable routing right from the start. The large mounting plate also supports organized internal layouts, reducing cable congestion and facilitating future upgrades without rework.
Ideal for control panels and electrical infrastructure in manufacturing, process automation, and machine building. The dual-door design, robust sheet-steel construction, and protective ratings support reliable operation in harsh factory floors, while the included gland plates and mounting plate enable scalable, compliant installations with efficient maintenance access.
