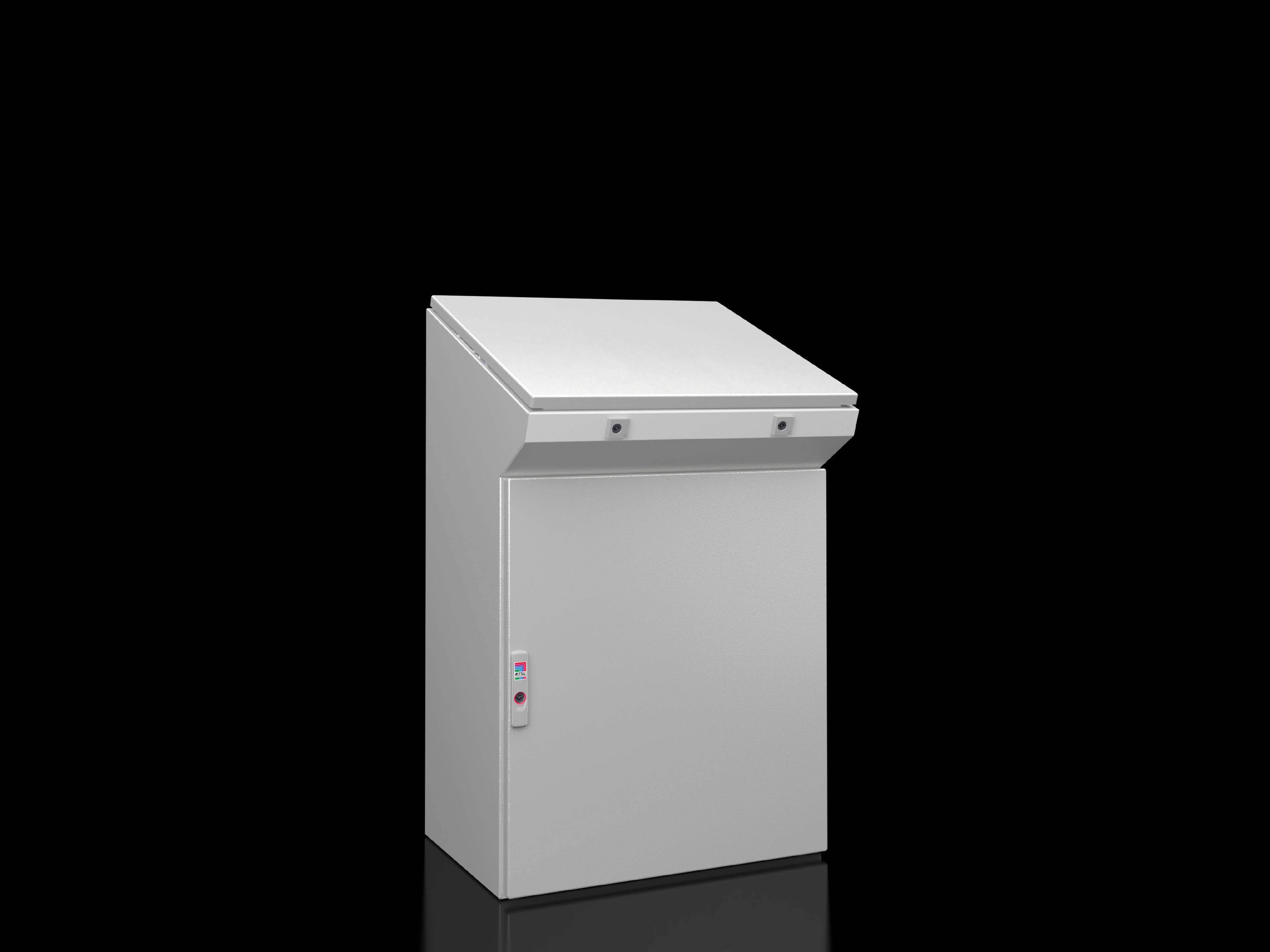

Rittal TP 6746.600 Console - IP55 Enclosure
Part Number: 6746600
Manufacturer
Rittal
Part number
6746600
Alt Part Number
TP 6746.600
Quick Summary
Rittal TP 6746.600 console provides a robust one-piece mounting solution for control panels and monitoring stations. Engineers often battle limited cable routing space and inadequate protection in compact enclosures. It offers IP55 protection, IK08 impact resistance, and NEMA 12 compliance, ensuring safe operation in damp, dusty environments. This enclosure also delivers a reliable mounting plate and gland plates for easy installation, translating to reduced wiring errors and faster commissioning, which supports industrial automation and electrical infrastructure projects while improving uptime and total cost of ownership.
Product Information
Extended Description
6746600 Rittal: TP one-piece console, WHD1: 600x975x400/D2: 500 mm, sheet steel
Article number
TP 6746.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double door at front, with locking rod | Mounting plate | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Gland plates
Dimensions
Width:Â 600 mm | Height:Â 975 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
530 mm x 900 mm
Depth (top)
500 mm
Depth (bottom)
400 mm
Number of doors
1
IK Code
IK08
Note
Positioning slide VX 5051.172 can be used as a mounting aid for base/plinth system VX in its new design
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Sheet steel
Dimensions
Width:Â 600 mm | Height:Â 975 mm | Depth (top):Â 500 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
51.6 kg
Customs tariff number
94032080
EAN
4028177959927
ETIM 8
EC000784
ETIM 7.0
EC000784
ECLASS 8.0
27180504
Product description
TP one-piece console, WHD1: 600x975x400/D2: 500 mm, sheet steel
The TP 6746.600 one-piece console combines a WHD1 footprint (600x975x400 mm) with a sturdy sheet steel construction, enabling quick assembly and precise mounting. This reduces installation time while delivering consistent alignment of front-door access and internal components, which translates to lower commissioning costs and fewer field rework issues for panel builders. The durable surface finish—dip coat primed, powder-coated exterior, textured paint—along with a zinc-plated mounting plate, improves corrosion resistance and extends service life in harsh environments, supporting long-term reliability for automated production lines. Supplied with solid back and sides, a front door with locking rod, and two-part gland plates for straightforward cable routing, the setup minimizes wiring complexities and enables clean, compliant terminations. Compatibility with VX base systems (Positioning slide VX 5051.172) offers flexible mounting for plinths, improving upgrade paths and facility-standardization. Overall, these features reduce downtime, ensure regulatory compliance, and streamline maintenance planning in industrial automation projects.
Get a Quick Quote for a Rittal 6746600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6746600?
Enquire Now
FAQs
Yes. The TP 6746.600 supports VX mounting solutions, and note VX 5051.172 can be used as a mounting aid for base/plinth VX systems. This compatibility enables flexible, scalable installations and simplifies upgrading or expanding existing cabinet layouts without rework.
The console has a width of 600 mm, height of 975 mm, and depth of 500 mm at the top (400 mm bottom). It ships as a single unit with a weight of 51.6 kg per pack, requiring appropriate lifting and mounting hardware. The mounting plate measures 530x900 mm for internal component layout.
Ideal for industrial automation, process control, and electrical infrastructure projects. It accommodates control panels, operator terminals, and monitoring stations in damp, dusty, or challenging environments thanks to IP55 protection and IK08 impact resistance, while the solid sheet steel construction provides long-term durability in manufacturing and energy sectors.
The TP 6746.600 offers IP55 protection per IEC 60529, IK08 impact resistance, and NEMA 12 protection. It uses a sheet steel body with a powder-coated exterior and a zinc-plated mounting plate, delivering robust compliance for harsh environments and contributing to safer, regulated installations.
With included gland plates, a rear-hinged cover with automatic locking, and durable finishes, maintenance is simplified and downtime minimized. The rugged steel construction and standard mounting compatibility reduce replacement frequency and simplify spares management, yielding lower total cost of ownership over the equipment lifecycle in demanding industrial settings.
