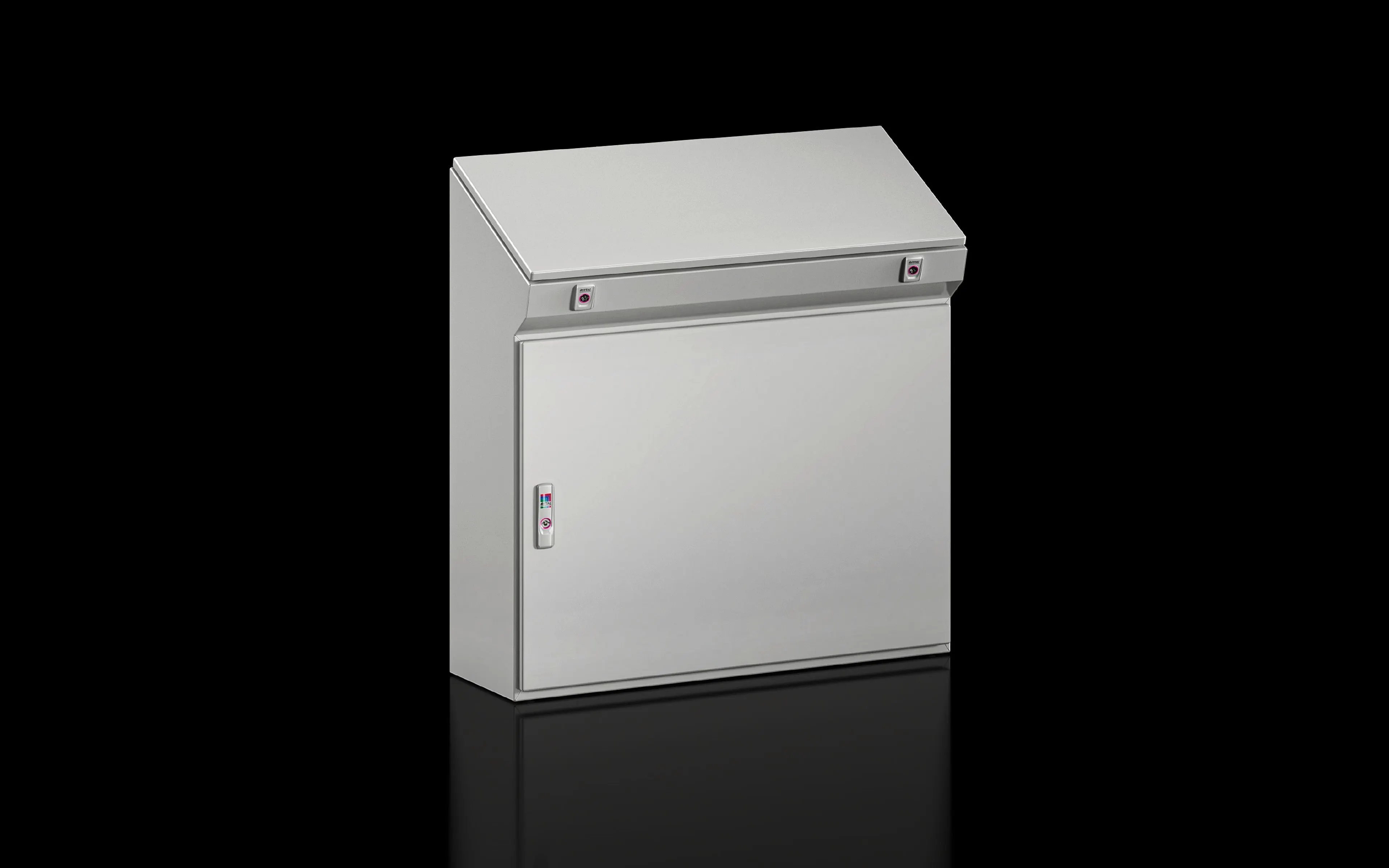

Rittal CX 6748.000 One-piece Console - IP55 IK10
Part Number: 6748000
Manufacturer
Rittal
Part number
6748000
Alt Part Number
CX 6748.000
Quick Summary
Rittal CX 6748.000 one-piece console provides a rugged operating and monitoring station for industrial cabinets. Customers often struggle with dust, moisture, and limited access, which leads to maintenance delays and elevated downtime. The unit delivers IP55 protection to IEC 60529 and IK10 impact resistance, aligning with harsh-environment requirements. With a scalable mounting plate and clean front access, it supports efficient, compliant installations in Enclosures & Electrical Infrastructure projects, driving uptime, predictable maintenance costs, and streamlined procurement for engineered control solutions.
Product Information
Extended Description
6748000 Rittal: CX one-piece console, WxHxD: 800x970x400 mm, sheet steel
Article number
CX 6748.000
Design
One-piece consoles
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 2.5 mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double-door at front, with 3-point locking system | Mounting plate | Cover with cam locks, hinged at the rear, 2 stays with automatic latching. Automatic unlatching on the left, manual on the right. | Gland plate | Lock: 3 mm double-bit
Dimensions
Width:Â 800 mm | Height:Â 970 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
720 mm x 900 mm
Depth (top)
495 mm
Depth (bottom)
400 mm
Number of doors
1
IK Code
IK10
IP protection category to IEC 60 529
IP 55
Basic material
Sheet steel
Dimensions
Width:Â 800 mm | Height:Â 970 mm | Depth (top):Â 495 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
58 kg
Customs tariff number
94032080
EAN
4028177983601
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
CX one-piece console, WxHxD: 800x970x400 mm, sheet steel
Feature: One-piece console with a sheet steel enclosure and mounting plate. Business Impact: Reduces installation time, ensures precise alignment, and improves long-term rigidity, enhancing protection for sensitive control components. Application: Ideal for machine enclosures and control panels on factory floors. Feature: IP55 protection and IK10 impact resistance with foam seals and textured coating. Business Impact: Maintains protective integrity against dust, water ingress, and incidental impacts, lowering maintenance cycles. Application: Harsh industrial environments, including manufacturing lines and outdoor installations. Feature: Front door with 3-point locking and cam locks, plus automatic unlatching on the left. Business Impact: Improves security and quick access for maintenance crews, reducing downtime. Application: Routine servicing and operator interventions in high-value control cabinets. Feature: Dimensions and mounting plate (800x970x400 mm; plate 720x900 mm). Business Impact: Standardized footprint enables fleet-wide compatibility and easier retrofits. Application: Panel design with consistent mounting practices across products. Feature: Inclusive supply includes back/side panels, gland plate, cover with locks, and automatic latch system. Business Impact: Out-of-the-box readiness reduces procurement steps and commissioning time. Application: New builds and retrofits needing rapid deployment. Feature: Finish and material (sheet steel with powder-coated exterior; mounting plate zinc-plated). Business Impact: Corrosion resistance and durable aesthetics lower lifecycle costs. Application: Harsh environments requiring robust, low-maintenance enclosures.
Get a Quick Quote for a Rittal 6748000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6748000?
Enquire Now
FAQs
CX 6748.000 uses a single front-facing door with a mounting plate of 720x900 mm. It includes solid back and sides, a gland plate, and a cover with cam locks. Installation is simplified by the integrated mounting plate and rear-latching mechanism, enabling quick alignment and secure fitting in standard enclosure frames.
The console delivers IP55 protection against dust and water ingress and IK10 impact resistance. These ratings are crucial for industrial environments where control gear is exposed to dust, moisture, and potential impacts, helping to prevent equipment failure and extend service intervals.
Yes. Built from sheet steel with a textured, powder-coated exterior and a foamed-in PU seal, the enclosure resists dust and moisture while maintaining a durable finish. Its robust locking system and gasket design support reliable operation in demanding production facilities.
Overall dimensions are 800 mm (W) x 970 mm (H) x 400 mm (D), with a top depth of 495 mm and bottom depth of 400 mm. The mounting plate measures 720x900 mm, enabling standardized installation across similar enclosures and simplifying panel integration.
The package includes the enclosure with solid back and sides, a front door with a 3-point locking system, a mounting plate, a cover with cam locks, automatic unlatching on the left, two stays, a gland plate, and a 3 mm double-bit lock, ensuring turnkey readiness for installation.
