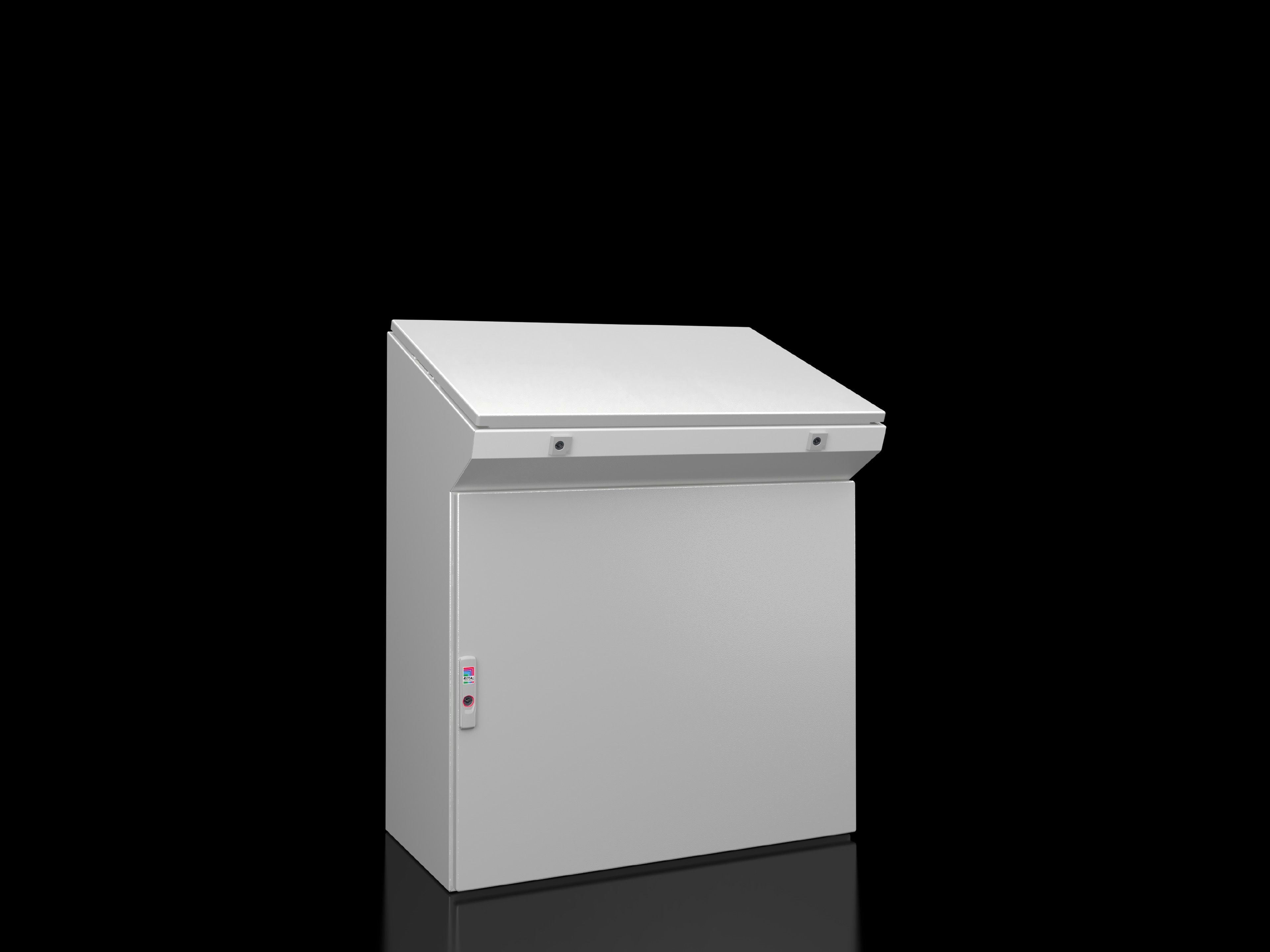

Rittal 6748600 TP console IP55
Part Number: 6748600
Manufacturer
Rittal
Part number
6748600
Alt Part Number
TP 6748.600
Quick Summary
TP one-piece console from Rittal enables operator interfaces in compact control panels. Many engineers struggle with clean cable routing and reliable IP-rated protection in harsh environments. The console delivers IP 55 sealing, IK08 impact resistance, and NEMA 12 compatibility, enabling durable operation across industrial settings. With a strong mounting plate and included gland plates, installation is faster and more flexible, reducing commissioning time. By combining rugged sheet steel construction with a textured powder coating (RAL 7035), this solution supports long service life in demanding environments while maintaining a professional appearance. The design also aligns with VX base system options for scalable enclosure infrastructures and streamlined maintenance workflows.
Product Information
Extended Description
6748600 Rittal: TP one-piece console, WHD1: 800x975x400/D2: 500 mm, sheet steel
Article number
TP 6748.600
Material
Enclosure: Sheet steel 1.5 mm | Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal | Mounting plate: Sheet steel, 3.0Â mm
Surface finish
Enclosure, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure, solid back and sides | Door or double door at front, with locking rod | Mounting plate | Cover hinged at rear, 2 stays with automatic locking. Automatic unlocking on the left, manual unlocking on the right | Gland plates
Dimensions
Width:Â 800 mm | Height:Â 975 mm | Depth:Â 400 mm
Dimensions mounting plate (W x H)
730 mm x 900 mm
Depth (top)
500 mm
Depth (bottom)
400 mm
Number of doors
1
IK Code
IK08
Note
Positioning slide VX 5051.172 can be used as a mounting aid for base/plinth system VX in its new design
IP protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 12
Basic material
Sheet steel
Dimensions
Width:Â 800 mm | Height:Â 975 mm | Depth (top):Â 500 mm | Depth (bottom):Â 400 mm
Packs of
1 pc(s).
Weight/pack
63.7 kg
Customs tariff number
94032080
EAN
4028177959934
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
TP one-piece console, WHD1: 800x975x400/D2: 500 mm, sheet steel
Feature IP55 sealing and NEMA 12 compatibility → Protects sensitive electronics from dust and moisture, reducing downtime in production environments; Application ideal for process automation control panels in dusty or damp facilities. Business Impact gives you higher uptime and compliance with industrial hygiene standards. Feature IK08 impact resistance → Improves reliability under vibration and accidental contact, lowering replacement costs and field service tickets; Application in manufacturing lines and robotics cells. Feature Dimensions and mounting plate 730x900 mm → Enables precise fit within standard enclosure footprints and easy integration with VX mounting systems; Application across modular enclosure configurations to support scalable control architectures. Feature Supplied gland plates and two-part gland plates included → Simplifies cable routing, shortens assembly time, and minimizes field cabling errors; Application during initial panel build and subsequent maintenance. Feature Powder-coated finish in RAL 7035 and sheet steel construction → Combines corrosion resistance with a professional exterior and easy cleaning in harsh environments; Application in production floors, switchgear rooms, and outdoor-rated installations. Feature Front-hinged cover with automatic locking and VX positioning aid → Enhances access control and enables fast maintenance while preserving enclosure integrity; Application in high-availability control rooms and machine centers.
Get a Quick Quote for a Rittal 6748600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6748600?
Enquire Now
FAQs
The TP 6748.600 serves with a mounting plate sized at 730 mm x 900 mm and is designed to align with VX base system concepts. This enables straightforward alignment with compatible enclosures and supports modular expansion. When planning installations, verify clearance for the 800 mm width, 975 mm height, and 500 mm top depth to ensure proper fit and service access.
Key ratings include IP55 protection for dust and water ingress resistance, IK08 impact resistance for mechanical durability, and NEMA 12 suitability for industrial environments. These ratings translate to longer service life, reduced unplanned downtime, and easier compliance with industry standards in manufacturing and process automation.
Yes. The TP 6748.600 includes two-part gland plates and gland plates in the supply, facilitating clean, organized cable routing. The robust mounting plate and roomy internal geometry support multiple terminal blocks and cabling runs, while the textured powder-coated surface simplifies labeling and maintenance in busy control rooms.
Consider the 800 mm width, 975 mm height, and 400—500 mm depth dimensions to plan door access and service space. Use the IP55 and IK08 capabilities as design constraints for location selection (dusty, damp, or vibration-prone areas). The enclosure’s sheet steel construction and PU sealed joints aid long-term performance and ease of cleaning.
The packed weight is 63.7 kg, reflecting robust sheet steel construction that supports durable installations with fewer field replacements. ROI is driven by reduced downtime from superior protection, lower maintenance costs due to reliable sealing, and faster commissioning thanks to included gland plates and a ready-to-install mounting plate.
