Rittal 6900730 Enclosure & Electrical Infrastructure - IP54
Part Number: 6900730
Manufacturer
Rittal
Part number
6900730
Alt Part Number
IW 6900.730
Quick Summary
Rittal 6900730 enclosure for industrial workstations provides compact control housing for electronics and peripherals. The design addresses cramped layouts, cable management gaps, and inconsistent protection on busy shop floors. It delivers IP 54 protection for demanding environments and is CE-ready for EU applications, combining a sheet-steel body with powder-coated finishes. The drawer section for keyboard and mouse, plus a designer front door and rear access, supports ergonomic setup and efficient workflows. For designers and procurement teams, this enclosure offers predictable performance, easy integration with standard gland plates, and a clear path to compliant installations while keeping total cost of ownership down.
Product Information
Extended Description

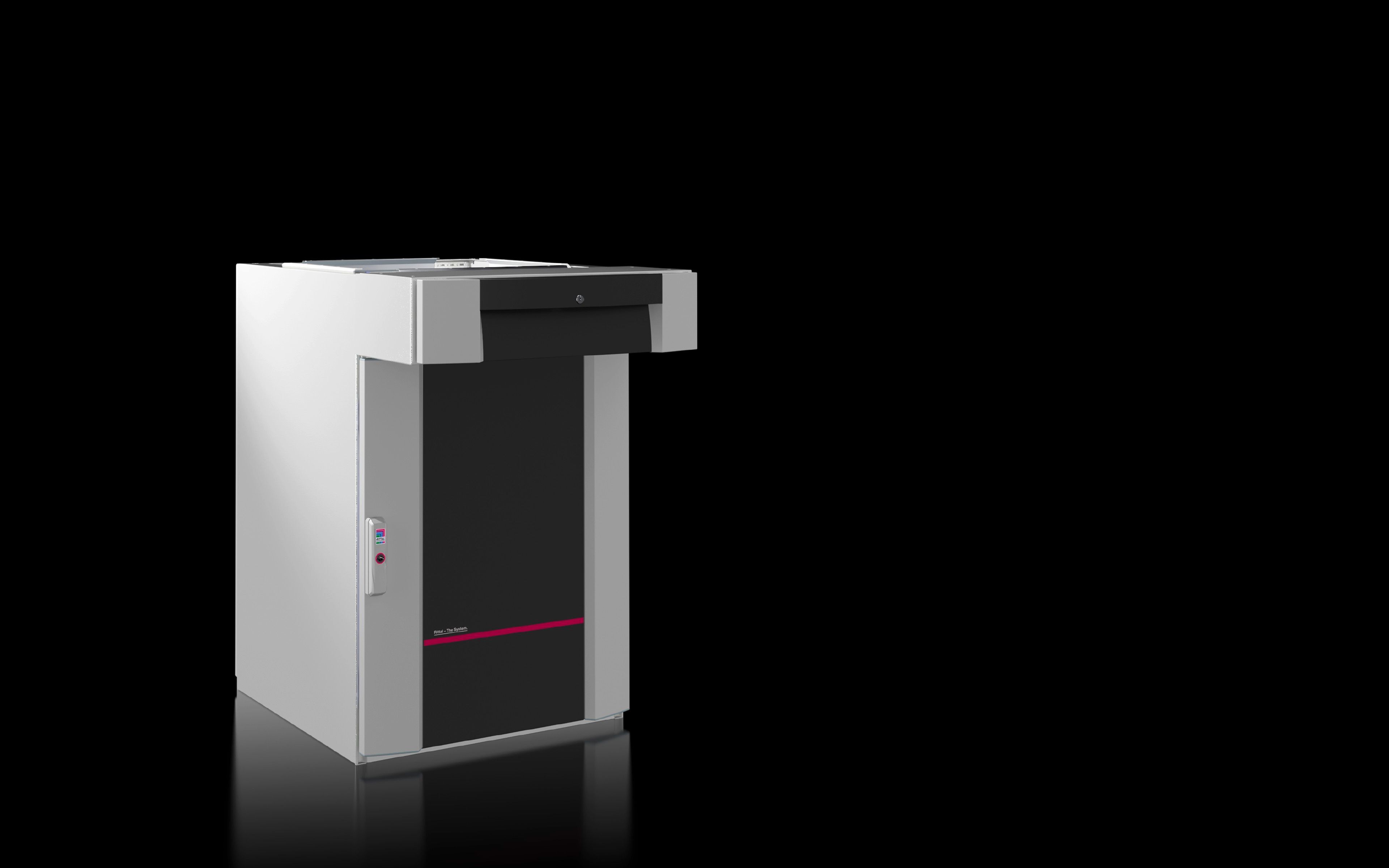

6900730 Rittal: IW Industrial Workstation, enclosure width x height x depth: 600x900x600 mm, with for drawer section for keyboard and mouse, designer door at the front, rear door
Article number
IW 6900.730
Design
Drawer section for keyboard and mouse, designer door, rear door
Material
Enclosure, drawer section for keyboard and mouse, designer door, rear door: Sheet steel
Surface finish
Enclosure: Dipcoat-primed, powder-coated on the outside, textured paint
Colour
Decorative trim panels: RAL 7015
Supply includes
Enclosure sealed at the sides | Three-piece gland plates | Levelling feet | Drawer section for keyboard and mouse, designer door, rear door
Depth with drawer section
890 mm
Dimensions
Width:Â 600 mm | Height:Â 900 mm | Depth:Â 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
66 kg
PCF per pack (cradle-to-gate)
251.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177968530
ETIM 9
EC002502
ETIM 8
EC002502
ECLASS 8.0
27180501
Product description
IW Industrial Workstation, enclosure width x height x depth: 600x900x600 mm, with for drawer section for keyboard and mouse, designer door at the front, rear door
The drawer section for keyboard and mouse improves operator ergonomics and space efficiency, enabling faster data input and reduced fatigue; this directly improves operator throughput on automation benches. The solid sheet steel enclosure with powder coating delivers robust protection against daily wear and corrosion, extending service life in manufacturing environments. The IP 54 rating provides reliable protection from dust and splashes, minimizing unplanned downtime and safeguarding sensitive electronics. Supplied with three-piece gland plates and levelling feet, installation is quicker and more precise, reducing setup time and enabling level mounting on irregular floors. With dimensions 600x900x600 mm and a 890 mm depth when combined with the drawer, the enclosure supports straightforward integration into existing line layouts and supports scalable control panel designs. The cradle-to-gate PCF of 251.5 kg CO2 eq (Cat B) demonstrates a responsible lifecycle footprint and aligns with sustainability goals.
Get a Quick Quote for a Rittal 6900730
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6900730?
Enquire Now
FAQs
The IW 6900.730 ships with levelling feet for stable support on varied floor surfaces and three-piece gland plates for flexible cable ingress. The enclosure is designed to be mounted on level floors and can be integrated with standard gland entry points, ensuring clean cable management and quick commissioning on automation benches.
Key specs include enclosure dimensions 600x900x600 mm, depth with drawer 890 mm, IP protection IP 54, material sheet steel with a powder-coated exterior, decorative trim panels in RAL 7015, and a packed weight of 66 kg per pack. The product carries GTIN 4028177968530 and ETIM 9 EC002502.
Yes. The IP54 rating protects against dust ingress and water splashes in industrial environments, while the sheet steel construction and powder-coated exterior provide durability under daily shop-floor conditions. The rear door and designer front door offer flexible access for maintenance and cable routing in demanding applications.
The cradle-to-gate PCF is 251.5 kg CO2 eq (Category B), reflecting a quantified environmental impact. Its robust construction reduces maintenance frequency, supports long service life in automation settings, and minimizes replacement cycles. The integrated drawer and door design streamline operator workflows, contributing to lower total cost of ownership over the system’s life.
Download options include View PDF, DE and EN further information pages. Access the PDF at the Rittal portal variant page for 6900730, and the DE/EN documents at the respective further information links to obtain installation guidelines, dimensions, and accessory compatibility.
