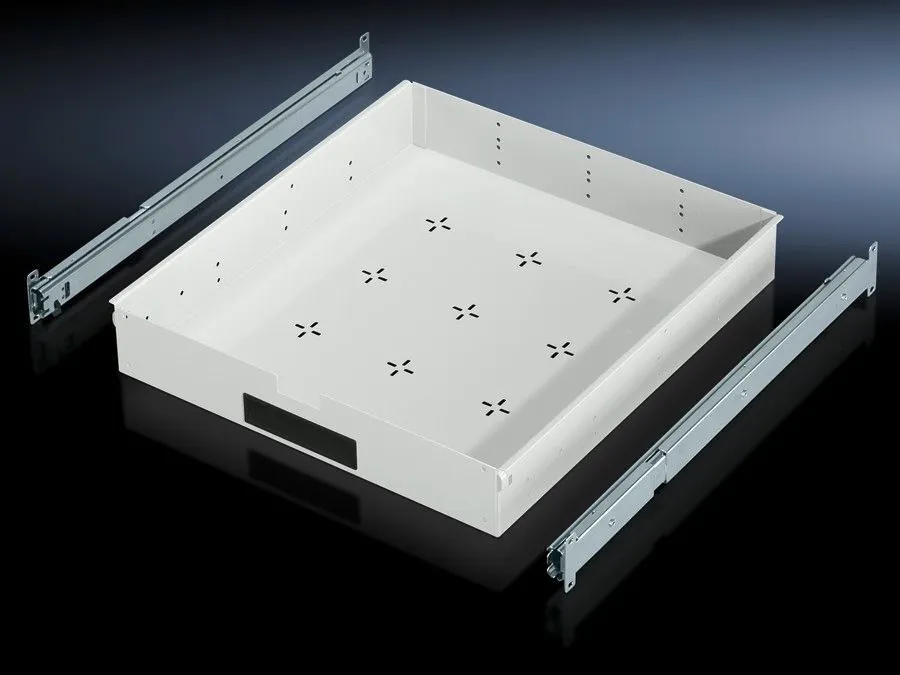

Rittal IW 6902.700 Drawer Tray - 40 kg static load
Part Number: 6902700
Quick Summary
Rittal IW 6902.700 Drawer Tray is a pull-out tray for IW and PC enclosures. It enables quick access to internal components and easier maintenance in compact TS frame cabinets. Maintaining neat cable routing and fast service in tight panels has long been a challenge for control engineers. The product aligns with ETIM EC002620 and ECLASS 27189261 classifications, supporting standardized procurement and interoperability. It also carries a cradle-to-gate PCF of 32.8 kg CO2 eq (Cat B), aiding sustainability reporting. Built from sheet steel in RAL 7035, this tray delivers robust durability while simplifying installation and reducing downtime in automation panels.
Product Information
Extended Description
6902700 Rittal: IW Drawer tray, pull-out, for enclosure types IW and PC
Article number
IW 6902.700
Material
Sheet steel
Colour
RAL 7035
Supply includes
2 telescopic slides
Installation options
For enclosures with TS frame construction in series IW, PC.
Load capacity
40 kg surface load, static
Dimensions
Width: 484.5 mm | Height: 83 mm | Depth: 519 mm
To fit
Enclosure type: IW | PC | Width: = 600 mm | Depth: ≥ 600 mm | ≤ 800 mm
Packs of
1 pc(s).
Weight/pack
8.6 kg
PCF per pack (cradle-to-gate)
32.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177289857
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
IW Drawer tray, pull-out, for enclosure types IW and PC
Feature → Business Impact → Application: The 2 telescopic slides and pull-out design provide effortless access to mounted components, reducing service time and minimizing disruption to surrounding equipment in IW and PC enclosures. This directly translates to lower maintenance costs and faster diagnostics in production lines and automation cabinets. The 40 kg static load capacity supports substantial equipment while preserving cabinet integrity, enabling reliable mounts for drivers, controllers, and wiring harnesses in rugged industrial environments. Dimensions of width 484.5 mm, height 83 mm, and depth 519 mm ensure a precise fit within TS frame systems, with compatibility for enclosure widths of 600 mm and depths of 600–800 mm—ideal for standardized panel layouts. The sheet steel construction with a RAL 7035 finish ensures long-term durability and visual consistency in control rooms and machine bays. The PCF value of 32.8 kg CO2 eq (Cat B) supports sustainability reporting and responsible sourcing. Finally, this accessory ships as a complete kit with 2 telescopic slides, streamlining installation and reducing parts management.
Get a Quick Quote for a Rittal 6902700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6902700?
Enquire Now
FAQs
The drawer tray is designed for enclosures with TS frame construction in series IW and PC. It includes two telescopic slides for smooth extension. Ensure the enclosure width is 600 mm and depth falls within 600–800 mm, then mount the tray per the provided installation options to align with the TS frame.
The tray supports a static load of up to 40 kg, allowing reliable mounting of heavy components while maintaining cabinet integrity during operation and service.
Dimensions are Width 484.5 mm, Height 83 mm, Depth 519 mm. It fits IW and PC enclosure types with a 600 mm width and a 600–800 mm depth range, designed for TS frame configurations.
The tray is made from sheet steel and finished in RAL 7035, providing durable, industrial-grade construction with a light-grey appearance suitable for control panels.
The cradle-to-gate PCF is 32.8 kg CO2 eq (Category B), reflecting the product’s measured environmental impact and supporting sustainability reporting.
