Rittal 6902960 Component shelf pull-out - 30 kg load
Part Number: 6902960
Quick Summary
Rittal component shelf pull-out for TS enclosures enables direct mounting and fast access to equipment. This design addresses cramped layouts and maintenance headaches by delivering smooth, guided extension and a stable work surface. It aligns with ETIM EC002620 and ECLASS 27189261 standards, with color RAL 7015 for durability and easy coordination in control panels. In business terms, the package includes two telescopic slides and a 30 kg static load capacity, boosting maintenance efficiency and minimizing downtime. It fits TS, VX SE, PC, and IW enclosure sections at a 600 mm depth, delivering modularity, compatibility, and scalable storage for growing automation needs.
Product Information
Extended Description

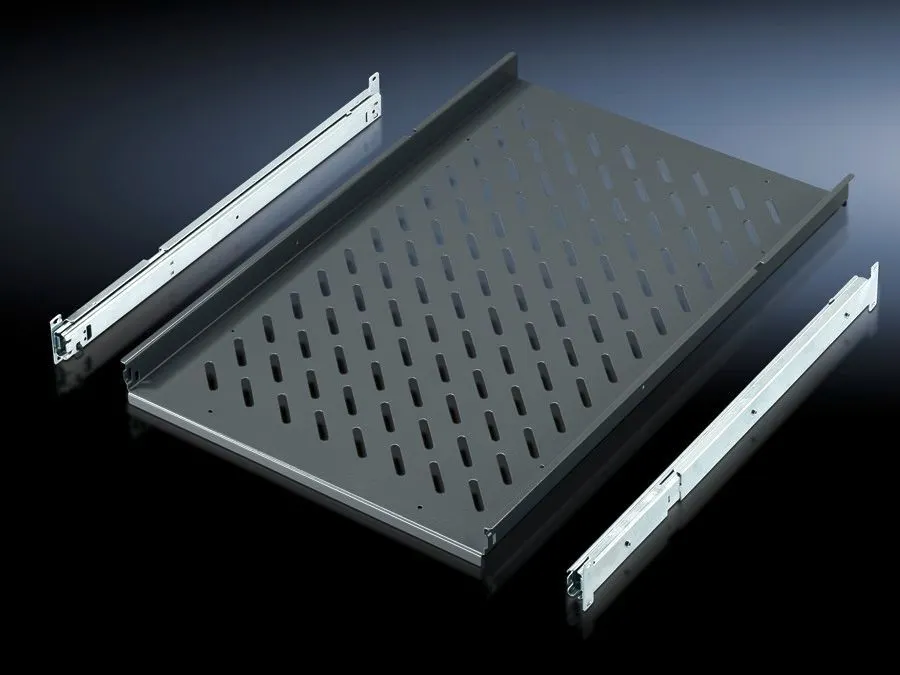

6902960 Rittal: IW Component shelf, pull-out, for TS, SE, PC, IW, for enclosure depth 600 mm
Article number
IW 6902.960
Product description
For direct mounting on the vertical TS enclosure section.
Applications
On the vertical TS, VX SE enclosure section
Material
Sheet steel
Colour
RAL 7015
Supply includes
2 telescopic slides
Load capacity
30 kg surface load, static
Note
For enclosures without mounting plate
Note on Model No.
May also be installed in 800 mm deep enclosures based on TS (pull-out rear attachment).
Support area
Width: 465 mm | Depth: 545 mm
To fit
Enclosure type: TS | PC | IW | Width: = 600 mm | Depth: = 600 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
7.8 kg
PCF per pack (cradle-to-gate)
29.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177289864
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
IW Component shelf, pull-out, for TS, SE, PC, IW, for enclosure depth 600 mm
Two robust telescopic slides enable smooth, controlled extension, so technicians reach mounted components quickly without wobbling or binding. This reduces maintenance time and minimizes the risk of dropped tools or components during service. The shelf is intended for direct mounting on vertical TS enclosure sections and is compatible with VX SE, PC, and IW variants, making it a versatile addition to 600 mm depth panels. The sheet steel construction delivers rigidity in harsh industrial environments, while the RAL 7015 finish offers durable color-coding and corrosion resistance, reducing rework and extending panel life. With a static load capacity of 30 kg on the enclosure surface, it supports instrument clusters, relays, and small drives without compromising stability. It fits TS, PC, IW at 600 mm depth, and can be retrofit into 800 mm deep enclosures via rear attachment, expanding retrofitting options. Packaging includes two telescopic slides and the shelf itself, with a 7.8 kg weight per pack to ease handling on the line. The solution aligns with standard classifications (ETIM EC002620; ECLASS 27189261) to streamline procurement and data consistency. In broader industry terms, this shelf supports preventive maintenance, better cable management, and faster changeovers, delivering tangible ROIs through higher uptime and lower service costs.
Get a Quick Quote for a Rittal 6902960
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 6902960?
Enquire Now
FAQs
The shelf provides a static load capacity of 30 kg on the enclosure surface, suitable for mounting control devices, relays, and small instrumentation. For heavier components, distribute weight across the shelf or use multiple shelves. Always observe enclosure weight limits and ensure even load distribution to maintain stability during operation.
The shelf is designed for TS, VX SE, PC, and IW enclosure sections with a standard 600 mm depth. It can also be installed in 800 mm deep enclosures via a rear attachment. Includes two telescopic slides to ensure smooth operation, making retrofit and expansion straightforward in existing installations.
Each kit includes two telescopic slides that provide guided extension and load support, enabling direct mounting on the vertical TS enclosure section. The assembly is designed without a mounting plate, simplifying installation. Pack weight is approximately 7.8 kg, aiding on-site handling and logistics efficiency.
The product references ETIM EC002620 and ECLASS 27189261 for standardization and procurement compatibility. No explicit CE or IP rating is listed in the provided data. For environments requiring specific protections, verify enclosure IP rating and ensure the TS cabinet configuration meets your safety and environmental requirements.
The pull-out design provides quick, unobstructed access to mounted components, reducing maintenance time and downtime. With two slides and a 600 mm depth, technicians can safely reach interior components without dismantling adjacent equipment. The design supports modular upgrades and faster changeovers, contributing to improved uptime and lower service costs over the product lifecycle.
