Rittal 7000672 Transport Castors - 3,000 N Load
Part Number: 7000672
Quick Summary
Rittal 7000672 transport castors enable easy mobility for FlatBox enclosures. Heavy enclosures move safely without floor damage thanks to simple screw-fastened mounting and 58 mm ground clearance. CE-compliance supports European deployment, while ETIM EC000721 and ECLASS 27182003 help ensure data consistency. This combination streamlines procurement and improves on-site efficiency by replacing fixed feet with mobile castors.
Product Information
Extended Description
7000672 Rittal: Transport castors, M10x20, max. 3000 N
Article number
TE 7000.672
Product description

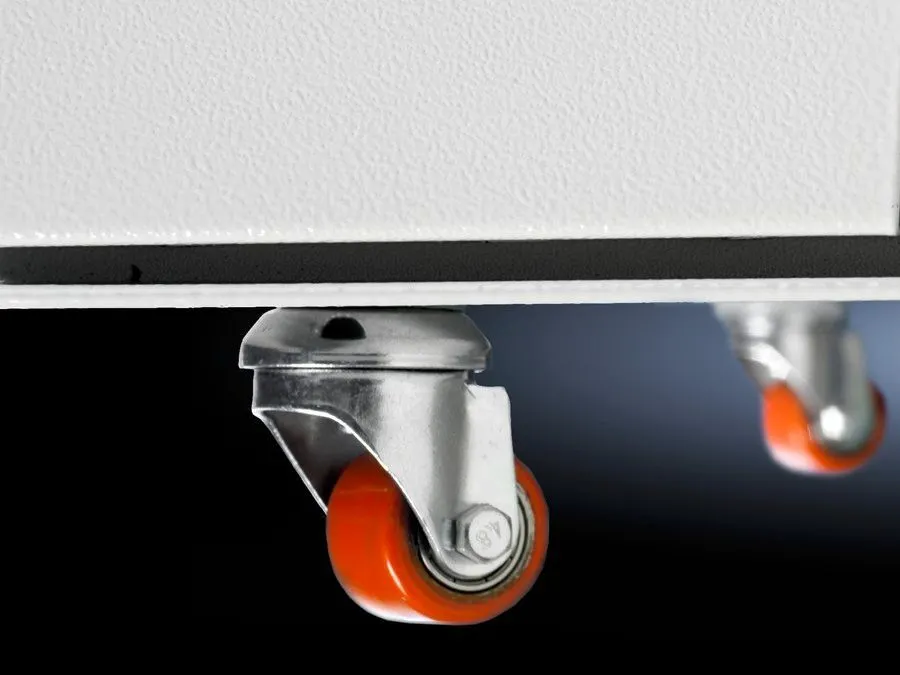

The castors may be screw-fastened in the corner areas within the base frame in place of the levelling feet. Ground clearance: 58 mm, mounting thread M10 x 20.
Supply includes
Assembly parts
Load capacity
3,000 N
Packs of
4 pc(s).
Weight/pack
1.068 kg
Customs tariff number
83024900
EAN
4028177437340
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
Transport castors, M10x20, max. 3000 N
Feature: Screw-fastened corner mounting replaces levelling feet. Business Impact: Faster retrofits with minimal frame modification and consistent load path. Application: Mounting in base-frame corners of FlatBox units for rapid mobility. Feature: 3,000 N load capacity. Business Impact: Supports heavy server cabinets and control panels without compromising stability. Application: Industrial environments where equipment weight and safety are critical. Feature: Ground clearance 58 mm. Business Impact: Improves ground clearance for easier movement over minor floor irregularities, reducing drag and misalignment. Application: Factory floors and workshop areas requiring reliable positioning. Feature: Pack of 4 with weight 1.068 kg per pack. Business Impact: Streamlined inventory, simplified replacements, and consistent handling across all corners. Application: Maintenance planning and standardization across multiple enclosures. Feature: Supply includes assembly parts. Business Impact: Reduces installation time and downtime with all required hardware on hand. Application: Quick retrofit projects and site upgrades for FlatBox enclosures.
Get a Quick Quote for a Rittal 7000672
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7000672?
Enquire Now
FAQs
TE 7000.672 castors are attached by screws into the corner areas of the base frame where leveling feet were located. You’ll receive assembly parts for fast installation; prepare surfaces, align the M10x20 mounting holes, and tighten screws securely. After mounting, verify ground clearance of 58 mm to ensure smooth mobility and even load distribution.
The set provides a load capacity of 3,000 N, supporting mid to heavy-duty FlatBox configurations without compromising stability. The 4-pack ensures uniform support on all corners, reducing tipping risk during repositioning. Use this rating when moving equipment such as control panels, server enclosures, or power distribution units in industrial settings.
Yes. TE 7000.672 castors are designed for screw-fastened installation in the base frame corners, replacing leveling feet, using the M10x20 mounting thread. The included assembly parts simplify retrofits, preserving frame geometry and alignment while enabling safe mobility on typical workshop floors.
The product is classified under ETIM EC000721 and ECLASS 27182003, aiding data consistency across systems. It also carries the EAN 4028177437340 and customs tariff number 83024900, supporting procurement and border processes. For regional regulatory requirements, verify local CE marking and related certifications as needed.
Using TE 7000.672 castors reduces relocation downtime and minimizes floor damage risk during moves, contributing to lower maintenance costs. The four identical castors and included assembly parts streamline replacements and standardize upkeep, enhancing asset utilization, safety, and predictable relocation costs in production lines and labs.
