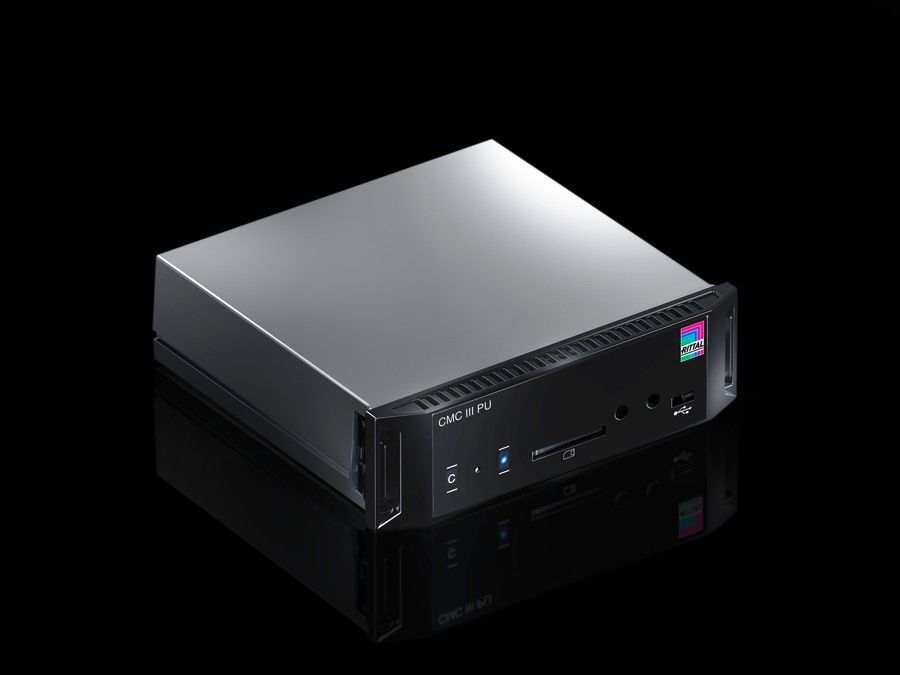

Rittal 7030000 Processing Unit - Central CMC III Monitoring System (max 32 sensors)
Part Number: 7030000
Manufacturer
Rittal
Part number
7030000
Category
Alt Part Number
DK 7030.000
Quick Summary
7030000 Processing Unit by Rittal is the central hub for CMC III enclosure monitoring in IT, industry, and facility management. Engineers often face challenges integrating multiple sensors and maintaining reliable network communications across changing site conditions. Key certifications to consider for this class of equipment include CE compliance, IP ratings for enclosure protection, and SIL readiness where safety-related monitoring is involved. This unit’s design emphasizes scalable sensor networking, robust web/USB configuration, and SNMP integration to reduce downtime and support IT and facility teams. Its environment tolerance of 0 to 45 C and humidity 5–95% non-condensing ensures dependable operation in data centers, industrial enclosures, and campus facilities. With integrated temperature sensing and infrared access sensing, it helps enforce safe access control and rapid fault detection.
Product Information
Extended Description
7030000 Rittal: DK CMC III Processing Unit, Central unit of the CMC III monitoring system, WHD: 138x40x132 mm, max. 32 sensors
Article number
DK 7030.000
Product description
Central unit of the CMC III monitoring system. In addition, up to 32/4 external sensors/CAN-Bus connection units may be connected additionally to the integral sensors.
Benefits
High redundancy due to redundant power supply.
Applications
Enclosure monitoring in IT, industry and facility management
Function principle
Central monitoring unit for the CMC III system.
Design
Piezo signal generator for acoustic information
Material
Plastic
Surface finish
Front: Smooth | Enclosure: Textured
Colour
Enclosure: RAL 7035 | Front: RAL 9005
Supply includes
Basic system | Temperature sensor including connection cable (supplied loose) | Infrared access sensor (integrated) | Assembly parts for mounting on surfaces
Infrared access sensor
Yes
Integral temperature sensor
Yes
Interface bus system
2 x RJ45 CAN bus
Alarm relay output
Terminal up to 1.5 mm² (max. 24 V DC/1 A)
Interfaces
Mini USB
Mobile website
For Android and Windows phones
Network interface
Ethernet to IEEE 802.3 via 10/100BaseT full-duplex, 10/100 Mbit/s, PoE
Interface UPS
Terminal
Serial interface
RJ12
Interface streaming
Axis network camera with VAPIX® version 3
Number of sensors (max.)
32
Note
Unencrypted protocols may be deactivated for enhanced network security
LED displays (rear)
Network status
LED displays (front)
Status
Protocols
TCP/IPv4
Dimensions
Width: 138 mm | Height: 40 mm | Depth: 132 mm
Operating temperature range
0 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.62 kg
Customs tariff number
85311095
EAN
4028177659322
ETIM 9
EC002627
ETIM 8
EC002627
ECLASS 8.0
27189253
Product description
DK CMC III Processing Unit, Central unit of the CMC III monitoring system, WHD: 138x40x132 mm, max. 32 sensors
Feature: Central processing unit supports up to 32 external sensors or CAN-bus connection units, enabling scalable enclosure monitoring. Business impact: This capacity reduces field-device sprawl and simplifies integration with IT and industrial networks. Application: Suitable for data centers, manufacturing enclosures, and facility management systems that require a unified sensor network. Feature: Ethernet 10/100BaseT with PoE and SNMP network management. Business impact: Streamlines remote monitoring, consolidates alerts, and lowers maintenance visits. Application: Integrates with existing NMS and monitoring platforms without adding extra switches or controllers. Feature: Integrated infrared access sensor and temperature sensor included in the supply. Business impact: Delivers immediate environmental awareness and reduces time-to-detect temperature anomalies. Application: Ideal for enclosure integrity checks in IT rooms and harsh industrial zones. Feature: Alarm relay output with 1.5 mm² terminal and email alarm delivery. Business impact: Improves incident response times and ensures critical alarms reach operators even during network issues. Application: Critical facilities where rapid notification is essential. Feature: Axis streaming interface for camera integration and Web/USB configuration. Business impact: Enables visual verification of events and rapid configuration without digressing to dedicated consoles. Application: Security monitoring, condition verification, and quick fault assessment in IT and industry environments. Feature: Compact enclosure and mounting options with surface-mount hardware. Business impact: Supports space-efficient installations in crowded control panels and cabinets. Application: Suitable for retrofits and new builds in IT racks and industrial enclosures.
Get a Quick Quote for a Rittal 7030000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030000?
Enquire Now
FAQs
The 7030000 uses two RJ45 CAN bus ports and a full 10/100BaseT Ethernet interface with PoE, simplifying integration with existing sensor networks. The unit ships as a basic system with a temperature sensor and an integrated infrared access sensor, plus mounting hardware. Configure via Web browser or USB, then enable SNMP for network management.
Designed as the central monitoring unit, it supports up to 32 external sensors or CAN-bus connection units, plus the unit’s own integrated sensors. It connects to the network via Ethernet with PoE, features a Mini USB and a RJ12 serial interface, and supports Axis streaming for camera integration, enabling scalable, monitored environments.
Yes. The 7030000 is designed as the central hub for CMC III enclosure monitoring across IT, industrial, and facility management domains. Its networked sensors, integrated temperature and infrared access sensors, and alerting features suit data center cabinets, manufacturing enclosures, and building management systems, while SNMP compatibility supports existing NMS workflows.
Certification details are not listed in the provided data; for regulatory compliance, verify CE marking and IP enclosure protection with the supplier and ensure firmware supports secure configurations by disabling unencrypted protocols as needed. In practice, plan for standard EU safety and data-security requirements when integrating this unit into critical systems.
Despite a lack of price data, the 7030000 enables lower operational risk through centralized monitoring, early alarm delivery by email, and remote management via SNMP. Its redundant power option improves uptime, while compatible Ethernet/USB interfaces simplify maintenance and firmware updates, delivering faster incident response and reduced manual checks across IT and industrial facilities.
