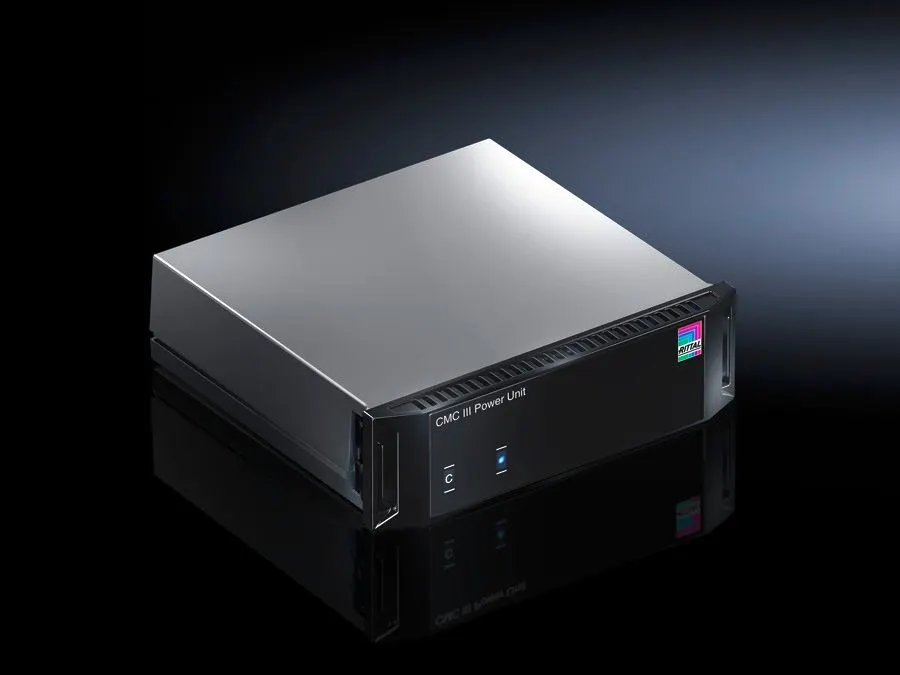

Rittal DK CMC III Power Unit 7030050 - 2x RJ45 CAN bus
Part Number: 7030050
Quick Summary
The DK CMC III Power Unit powers IT equipment and controls outputs in cabinet environments. Engineers often wrestle with wiring complexity and coordinating power alongside monitoring signals. While the data excerpt provided here doesn't list explicit SIL, CE, or IP ratings, Rittal products typically align with industry safety and environmental standards; please verify the exact certification for this SKU. This unit enables plug-and-play integration, scalable CAN bus monitoring via 2 x RJ45 CAN bus, and two switched outputs, supporting automatic load linking to measured values and fan regulation. In practice, it delivers straightforward cabinet power distribution with reliable remote visibility, improving uptime and energy management for IT infrastructure and industrial automation setups.
Product Information
Extended Description
7030050 Rittal: DK CMC III Power Unit, For power supply and controlling IT equipment via CMC III, Input: C14 100-230 V, 10 A 50/60 Hz, Output: 2x C13, 100-230 V, in total up to 10 A, 50/60 Hz
Article number
DK 7030.050
Product description
The input is switched to the outputs via two relays. In this way, the outputs can be linked to measured values for automatic switching. Fan regulation is one example of a potential application. Manual switching via the CMC III operating interface is likewise supported. Each output is monitored individually, and various values are measured. Cannot be operated with the Processing Unit Compact.
Benefits
Fast connection and automatic detection via plug & play
Function principle
Switches 2 outputs
Material
Plastic | Front: Smooth | Enclosure: Textured
Colour
Enclosure: RAL 7035 | Front: RAL 9005
Supply includes
CMC III Power Unit | Assembly parts for mounting on surfaces
Input connection
IEC 320 connector C14
Interface bus system
2 x RJ45 CAN bus
No. of participants per IoT interface (max.)
16
No. of participating PU (max.)
8
Note
Cannot be operated with the Processing Unit Compact
Dimensions
Width: 138 mm | Height: 40 mm | Depth: 132 mm
Output connections
2 x IEC 320 socket C13, switched
Measurement range cos φ
0 ‐ ± 90 °
Energy consumption
0 ‐ 1,000,000 kWh
Active power
46 ‐ 2.3
Rated frequency
50 ‐ 60 Hz
Operating temperature range
0 °C...55 °C
Ambient humidity (non-condensing)
5...95 %
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Voltage
110 ‐ 230 V
Packs of
1 pc(s).
Weight/pack
0.58 kg
Customs tariff number
85311095
EAN
4028177659377
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
DK CMC III Power Unit, For power supply and controlling IT equipment via CMC III, Input: C14 100-230 V, 10 A 50/60 Hz, Output: 2x C13, 100-230 V, in total up to 10 A, 50/60 Hz
Feature: Input and output configuration (C14 100-230 V in, 2x C13 switched outputs) → Business Impact: Flexible power distribution for IT gear with safe, controlled load sharing → Application: Data center racking and cabinet power management. Feature: Two relays enable output linking to measured values → Business Impact: Enables automatic switching and energy-aware control to reduce waste → Application: Fan regulation and device-level automation in IT cabinets. Feature: Interface bus system (2 x RJ45 CAN bus) and IoT capacity (up to 16 participants per interface, up to 8 PU) → Business Impact: Scalable monitoring, centralized data collection, and easier diagnostics → Application: Integrates with remote monitoring and industrial IT ecosystems. Feature: Plug & play with fast connection and automatic detection → Business Impact: Shorter deployment times, lower commissioning costs → Application: Quick integration into existing cabinet infrastructure. Feature: Environmental and mechanical robustness (operating 0–55 °C, 5–95% RH non-condensing) and standard mounting parts → Business Impact: Reliable operation in harsh environments and straightforward surface mounting → Application: Data centers, automation closets, and rugged IT setups. Objection Addressed: Cannot be operated with Processing Unit Compact, so plan PU-based configurations accordingly to maintain system compatibility.
Get a Quick Quote for a Rittal 7030050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030050?
Enquire Now
FAQs
The DK CMC III Power Unit is designed for IT equipment power supply and control within cabinet environments using the CMC III system. It provides two switched C13 outputs and a C14 input, with CAN bus connectivity for remote monitoring. When integrating with existing cabinets, ensure the system layout supports the 100–230 V supply and does not require the Processing Unit Compact, as noted in the product guidance.
This unit features two switched IEC 320 C13 outputs that can be fed from a 100–230 V input, with a total load capacity up to 10 A (50/60 Hz). The compact design allows direct power distribution to IT equipment and peripherals in a cabinet, supporting energy management through automatic switching based on measured parameters.
No. The DK CMC III Power Unit is not operable with the Processing Unit Compact. For configurations requiring Processing Unit Compact, you should select compatible components or upgrade the system to a model that explicitly supports that combination, ensuring power, signaling, and CAN bus integration are maintained.
The power unit ships with assembly parts for mounting on surfaces, and its plug-and-play design enables fast connection and automatic detection on the CAN bus network. This reduces commissioning time, enhances reliability for IT infrastructure in cabinets, and simplifies upgrades or expansions in data centers and industrial automation closets.
Plan for 0 to 55 °C ambient temperatures and 5–95% non-condensing humidity. The unit operates on 110–230 V and includes a 10 A pre-fuse. It supports up to 1,000,000 kWh energy measurement range and provides two switched outputs, making it suitable for rugged cabinet environments while maintaining regulatory compliance through standard enclosure materials and mounting options.
