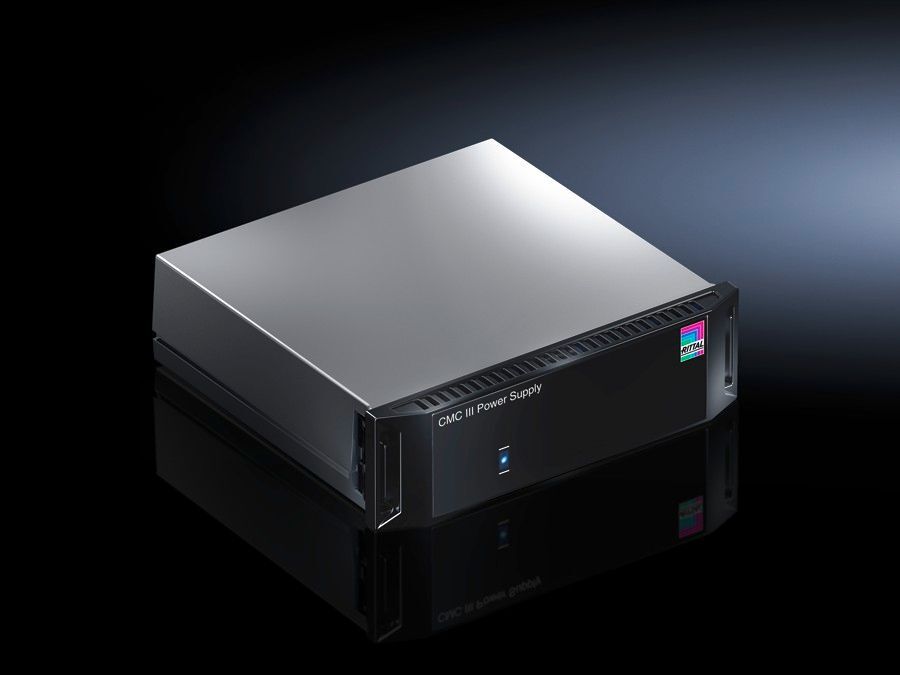

Rittal 7030060 CMC III Power Pack - 24 V DC Output
Part Number: 7030060
Quick Summary
CMC III Power Pack from Rittal provides a reliable 24 V DC supply for CMC III Processing Units in control cabinets and automation racks. For integrators, wiring and mounting can become a bottleneck in compact enclosures, but this module offers a purpose-built connector and dedicated 24 V outputs to streamline installation. While the data does not specify certifications, typical industry practice emphasizes CE compliance and robust enclosure standards to minimize risk in harsh environments. This translates to faster deployment, easier service, and a consistent, compact power solution for reliable automation performance at scale.
Product Information
Extended Description
7030060 Rittal: DK CMC III Power pack, For power supply of the CMC III Processing Units, Input: C14 100-230 V, 50/60 Hz, Output: 24 V DC, 2 A
Article number
DK 7030.060
Product description
The power pack is specifically tailored to the CMC III design and may be positioned in a mounting unit. As well as a special connector for the CMC III Processing Unit/Compact, there are also two further terminals available as 24 V outputs.
Material
Plastic
Surface finish
Front: Smooth | Enclosure: Textured
Colour
Front: RAL 9005 | Enclosure: RAL 7035
Supply includes
Connection cable 24 V (DC) | Assembly parts for mounting on surfaces
Length of connection cable
600 mm
Input connection
IEC 320 connector C14
Output current (max.)
2.5 A
Dimensions
Width: 138 mm | Height: 40 mm | Depth: 132 mm
Operating temperature range
0 °C...40 °C
Output voltage
Output voltage: 24 V DC
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.65 kg
Customs tariff number
85043121
EAN
4028177659384
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
DK CMC III Power pack, For power supply of the CMC III Processing Units, Input: C14 100-230 V, 50/60 Hz, Output: 24 V DC, 2 A
Feature: Wide input range and C14 IEC 320 connector enable global compatibility; Business Impact: Reduces the need for regional power adapters and simplifies panel wiring; Application: Global manufacturing lines with mixed mains supplies benefit from a single power pack for CMC III systems. Feature: Output of 24 V DC at up to 2.5 A with two additional 24 V outputs; Business Impact: Ensures stable, distributed control power for multiple modules without extra star wiring; Application: Powering CMC III Processing Units and auxiliary components in automation racks. Feature: Dedicated CMC III mounting and connector; Business Impact: Streamlines installation and reduces field errors during commissioning; Application: Surface-mount installations in compact control enclosures. Feature: Compact dimensions (Width 138 mm, Height 40 mm, Depth 132 mm) and weight 0.65 kg; Business Impact: Space-saving design enhances panel density and serviceability; Application: Tight electrical cabinets where footprint matters. Feature: Operating range 0 °C…40 °C with 5–95% non-condensing humidity; Business Impact: Reliable performance in typical industrial environments; Application: Factory floors and panel rooms without climate control. Feature: Includes 600 mm connection cable and mounting parts; Business Impact: Reduces procurement steps and accelerates installation; Application: Quick incline mounting on surfaces for CMC III processing units.
Get a Quick Quote for a Rittal 7030060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030060?
Enquire Now
FAQs
Install the DK 7030.060 power pack on a mounting surface using the supplied assembly parts. Connect the IEC 320 C14 input to 100–230 V AC, run the 600 mm DC output cable to the CMC III unit, and utilize the two additional 24 V outputs as needed. The unit is designed with a dedicated CMC III connector for straightforward integration.
The power pack accepts 100–230 V AC at 50/60 Hz via IEC 320 C14 input and provides 24 V DC output with a maximum current of 2.5 A. It includes a 600 mm connection cable and two extra 24 V outputs for auxiliary devices, enabling a compact, single-source supply for CMC III processing units.
The DK 7030.060 is specifically tailored to the CMC III design and is intended to power CMC III Processing Units. While it excels in conjunction with CMC III, compatibility with other non-CMC III modules should be validated with the system designer and Rittal documentation.
The unit is rated to operate from 0 °C to 40 °C with ambient humidity between 5% and 95% non-condensing, making it suitable for typical industrial environments without climate control in many cases.
The package includes the 24 V DC connection cable, assembly parts for surface mounting, and a single power pack unit. Routine maintenance is minimal beyond standard visual checks; verify wiring integrity during inspections and replace if any enclosure or connector wear is observed.
