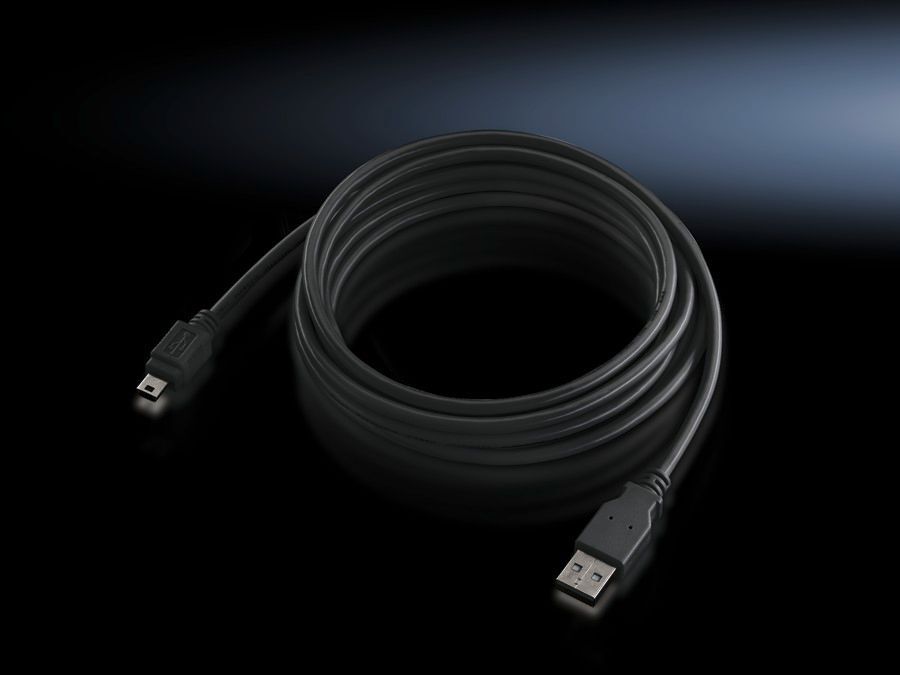

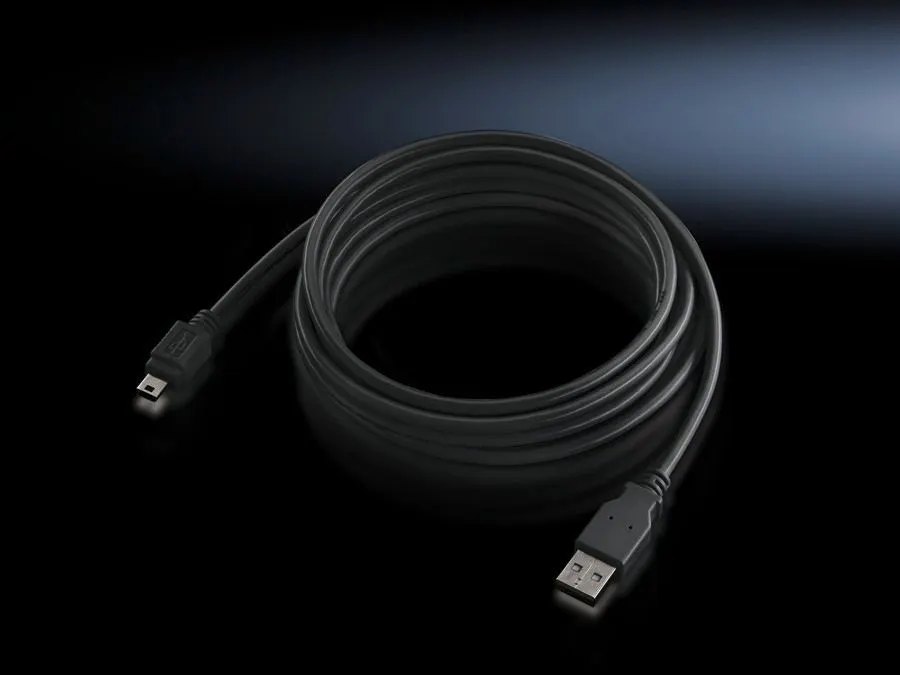

Rittal 7030080 DK CMC III USB Programming Cable - 3 m
Part Number: 7030080
Manufacturer
Rittal
Part number
7030080
Category
Alt Part Number
DK 7030.080
Quick Summary
Rittal 7030080 USB programming cable streams initial commissioning for CMC III Processing Units in industrial control panels. However, first-time start-up often stalls on USB driver installation or PC recognition. While the listing specifies operating conditions rather than SIL, CE, or IP ratings, the 0 to 55 °C temperature range and 5 to 95% non-condensing humidity support reliable use in typical factory environments. The included CD-ROM contains the Windows driver and system description, easing setup, while the 3 m USB cable provides flexible reach on the shop floor. For procurement teams, this cable reduces commissioning time and ensures a stable USB link during PU or PU Compact initialization, enabling faster time-to-operation and reduced engineering overhead.
Product Information
Extended Description
7030080 Rittal: DK CMC III programming cable USB, For commissioning the CMC III Processing Units, L: 3 m, 1 x USB series A, 1 x Mini USB
Article number
DK 7030.080
Product description
For first-time commissioning of the Processing Unit (PU) or PU Compact. During initial start-up, the programming cable connects the CMC III Processing Unit/Compact to the USB interface of a PC. A driver for Windows systems is also included with the supply and must be installed on the PC.
Supply includes
CD-ROM with USB driver software | System description
Length
3 m
Dimensions
Length: 3 m
Interfaces/connections
Connector (type): USB-AMini USB
Operating temperature range
0 °C...55 °C
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.11 kg
Customs tariff number
85444290
EAN
4028177659407
ETIM 9
EC000313
ECLASS 8.0
27189253
Product description
DK CMC III programming cable USB, For commissioning the CMC III Processing Units, L: 3 m, 1 x USB series A, 1 x Mini USB
The DK CMC III USB programming cable enables first-time commissioning of the CMC III Processing Units, delivering a direct USB link to the PU/PU Compact and simplifying initial setup with an included Windows driver. Business impact is a faster, more predictable start-up, reducing engineering effort and minimizing downtime during panel commissioning. The cable’s 3 m length and dual connectors (USB-A to Mini USB) offerInstallation flexibility, enabling technicians to position the PC and PU optimally without compromising signal integrity. This translates to fewer re-routings and quicker fault isolation at the factory floor, especially in crowded cabinets. The package includes a CD-ROM with USB driver software and system description, which shortens onboarding time and ensures consistent driver installation across devices. With operating conditions of 0–55 °C and 5–95% humidity, reliability is improved in normal industrial environments, reducing rework due to environmental constraints. A light 0.11 kg form factor supports easy handling and inventory management on site, improving technician productivity. Classification data such as ETIM EC000313 and ECLASS 8.0 27189253 facilitates accurate cataloging and procurement system integration, streamlining reordering and supplier management. Overall, the solution enhances traceability, reduces installation risk, and delivers measurable time-to-operate improvements during PU or PU Compact deployment.
Get a Quick Quote for a Rittal 7030080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030080?
Enquire Now
FAQs
To install on Windows, insert the included CD-ROM to access the USB driver, run the setup wizard, and connect the PU to a PC via the 3 m cable (USB-A to Mini USB). Ensure the PU is powered and the device appears in Device Manager before launching the CMC III commissioning software. This sequence minimizes setup delays and ensures reliable USB communication.
The cable provides USB-A and Mini USB connectors with a 3 m length, allowing flexibility to place a PC outside the cabinet while the PU remains accessible. This reduces cable scoping time, lowers signal interference risk, and supports tidy cable routing in tight automation panels.
Yes. The DK CMC III USB programming cable is designed for commissioning both PU and PU Compact units. It connects to the PC USB interface to upload the initial configuration and drivers, enabling a streamlined start-up sequence and reducing time-to-operation on compact processing units.
The cable tolerates 0 to 55 °C and 5 to 95% non-condensing humidity, which aligns with typical factory floors and control cabinet environments. These ranges help prevent commissioning interruptions due to temperature or humidity fluctuations and support reliable long-term use.
Using this cable standardizes the PU initialization process, reduces driver-related delays, and shortens installation cycles. The included Windows driver and consistent data packaging lower engineering effort, improve first-time right deployment, and deliver a faster return-to-operations timeline for control panels and automation projects.
