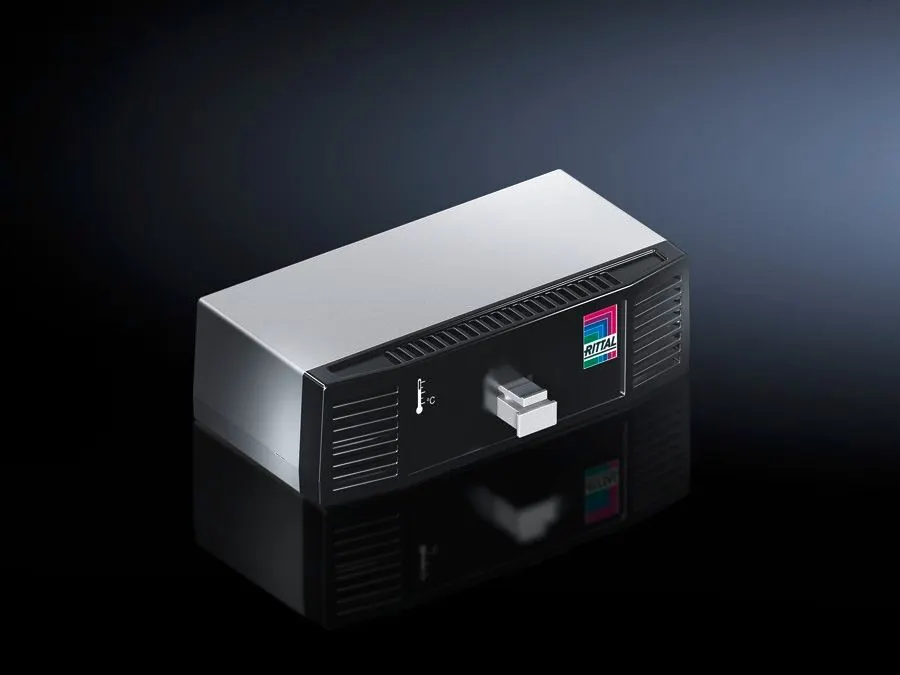

Rittal 7030110 Temperature Sensor - CMC III with 2x CAN bus
Part Number: 7030110
Quick Summary
Rittal DK CMC III Temperature sensor monitors enclosures in IT, industry, and facility management. This plug‑and‑play device addresses the common pain of slow setup and unreliable readings by delivering fast connection and automatic detection. The product aligns with ETIM EC002627 and ECLASS 27189253 standards, and its cradle-to-gate PCF is Cat. B (0.8 kg CO2 eq), supporting sustainability goals. With direct CAN bus connectivity and IoT interface compatibility, it scales from small control panels to multi‑site facilities. For IT racks and industrial enclosures, it delivers reliable monitoring that reduces downtime and supports data-driven maintenance.
Product Information
Extended Description
7030110 Rittal: DK CMC III Temperature sensor, WHD: 80x28x40 mm
Article number
DK 7030.110
Design
Temperature sensor
Benefits
Fast connection and automatic detection via plug & play
Applications
Enclosure monitoring in IT, industry and facility management
Function principle
Settings can be made via the CMC III processing unit or IoT interface
Material
Plastic | Front: Smooth | Enclosure: Textured
Colour
Front: RAL 9005 | Enclosure: RAL 7035
Supply includes
Sensor | Mounting plate | Assembly parts | External temperature sensor with connection cable and connector | NTC sensor, length 1.80 m | max. cable length 2 m
Connection to the CAN bus
Direct
Interfaces
2 x RJ45 CAN bus
No. of participants per IoT interface (max.)
32
No. of participating PU compact (max.)
4
No. of participating PU (max.)
32
No. of PDU devices (max.)
16
Measuring technique
internal NTC resistor
Dimensions
Width: 80 mm | Height: 30 mm | Depth: 40 mm
Operating temperature range
0 °C...55 °C
Ambient humidity (non-condensing)
5...95 %
Packs of
1 pc(s).
Weight/pack
0.201 kg
PCF per pack (cradle-to-gate)
0.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
90269000
EAN
4028177659483
ETIM 9
EC002627
ECLASS 8.0
27189253
Product description
DK CMC III Temperature sensor, WHD: 80x28x40 mm
Fast, direct CAN bus connection with 2 x RJ45 interfaces enables immediate integration into existing CAN networks, reducing commissioning time and wiring errors. This is ideal for IT enclosure monitoring across data centers and industrial facilities, delivering faster time-to-value. The compact 80x28x40 mm housing houses an internal NTC resistor for accurate temperature readings in tight spaces, while operating between 0 and 55 °C with 5 to 95% RH non-condensing, ensuring reliable performance in harsh environments. The supply includes a sensor, mounting plate, assembly parts, an external temperature sensor with connection cable and connector (NTC sensor 1.80 m; max 2 m), reducing on-site procurement delays and simplifying installation. Compatibility with IoT interfaces and scalable network architecture supports growth from single cabinets to multi-site facilities. Material choices (Front: smooth plastic; Enclosure: textured plastic) and color codes (Front: RAL 9005; Enclosure: RAL 7035) ensure seamless integration into existing enclosures and branding. With cradle-to-gate PCF of 0.8 kg CO2 eq (Cat B) and packaging of 1 piece, the device supports sustainable procurement and straightforward lifecycle assessments. Overall, this sensor enables efficient temperature monitoring without sacrificing reliability, making it a practical choice for enclosure management in IT racks, industrial cabinets, and facility networks.
Get a Quick Quote for a Rittal 7030110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030110?
Enquire Now
FAQs
Begin by mounting the sensor on the provided mounting plate and attaching the required assembly parts. Connect the external temperature sensor via the 1.80 m cable (up to 2 m total) to the NTC input, then run the 2x RJ45 CAN bus connections to your CAN network. The unit supports plug‑and‑play detection and integrates quickly with IoT interfaces, minimizing commissioning time.
It combines a compact 80x28x40 mm form factor with an internal NTC resistor for accurate temperature sensing in tight IT cabinet spaces. Operating from 0 to 55 °C and 5 to 95% RH non‑condensing, it provides reliable readings across IT and data center environments. Direct CAN bus connectivity and IoT compatibility enable centralized monitoring and alerting.
The system supports up to 32 participants per IoT interface and up to 32 PU devices in the CAN network, with a maximum of 4 PU compact units and 16 PDU devices. This structure allows scalable deployment from a single enclosure to complex data center or facility networks while preserving performance and reliability.
The DK 7030.110 is associated with ETIM 9 EC002627 and ECLASS 8.0 27189253 classifications, ensuring interoperability in industrial catalogs and procurement systems. It carries a manufacturer specification as a Rittal temperature sensor for enclosure monitoring, with EAN 4028177659483 and CN/HS references for logistics and compliance workflows.
By enabling fast installation, reliable enclosure monitoring, and scalable network integration, the sensor reduces commissioning time, minimizes downtime, and supports proactive maintenance. Its robust environmental performance and bundled mounting hardware lower installation costs, while IoT and CAN bus compatibility align with digitalization initiatives and energy-management strategies.
