Rittal 7030240 Door Kit - Gas Pressure Damper System 24 V DC
Part Number: 7030240
Manufacturer
Rittal
Part number
7030240
Category
Alt Part Number
DK 7030.240
Quick Summary
The Rittal 7030240 gas pressure damper system automatically opens rack doors in emergencies, enabling quick access and protecting workers in critical moments. This solution addresses downtime and safety gaps that occur when power to locking magnets is interrupted. In practice, buyers seek CE conformity, robust enclosure protection, and SIL safety integration; the DK 7030.240 aligns with standard classifications ETIM 9 EC001770 and ECLASS 8.0 27390190 to simplify specification and supplier communication. The 24 V DC operation and included hardware enable straightforward integration with existing door controls, delivering measurable business value in uptime, safety compliance, and total cost of ownership.
Product Information
Extended Description
7030240 Rittal: DK Door kit, For 1-piece glazed door, 24 V DC
Article number
DK 7030.240
Design
for 1-piece aluminium glazed door
Product description
For automatic opening of a rack's doors in emergency situations. Connected and activated via the Door Control Module.
Function principle
The doors are kept closed by a magnetic system. If the power supply to the magnets is interrupted, the gas pressure damper system pushes the door open.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes

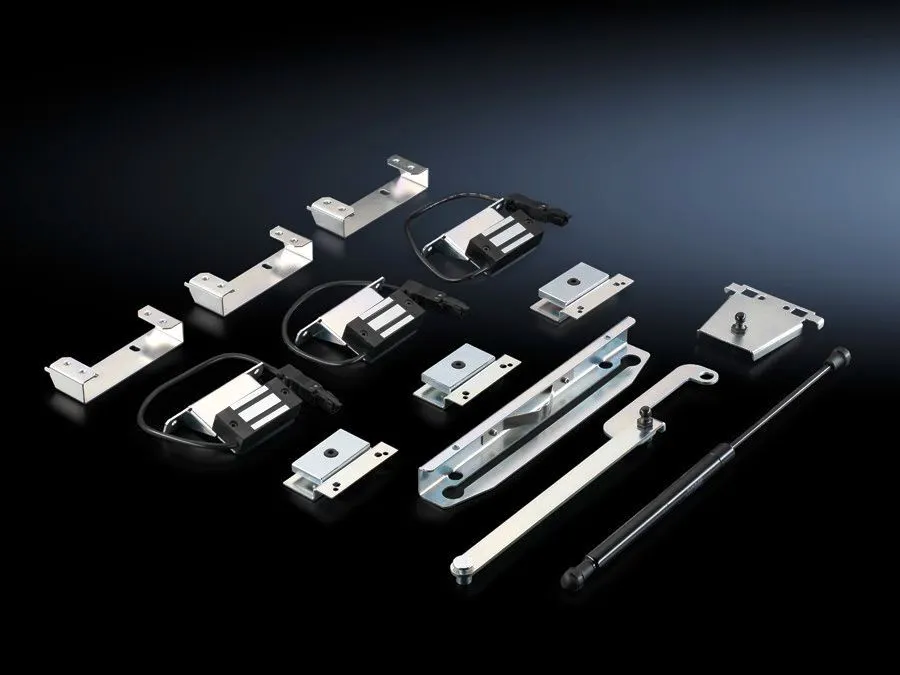

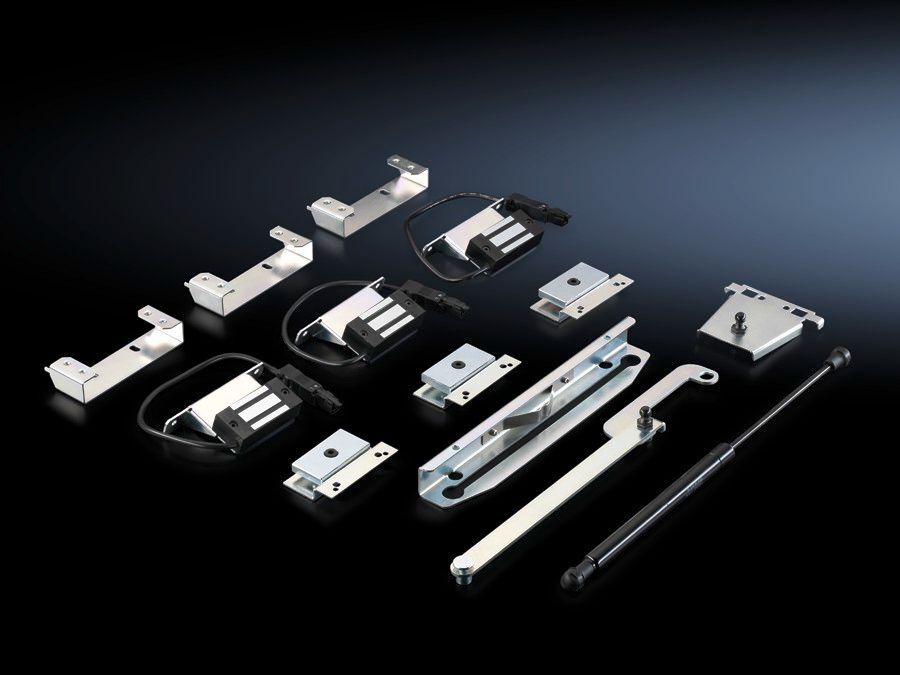

with gas pressure damper system | Cable harness | Magnetic lock | Assembly parts
Packs of
1 pc(s).
Weight/pack
3.34 kg
Customs tariff number
83015000
EAN
4028177695856
ETIM 9
EC001770
ECLASS 8.0
27390190
Product description
DK Door kit, For 1-piece glazed door, 24 V DC
Feature: Gas pressure damper system provides automatic door opening on power loss. Business Impact: Rapid, hands-off access reduces downtime and enhances safety during outages. Application: Data centers, industrial racks, and control cabinets where quick emergency access is critical. The system integrates with a door control module for seamless operation. Feature: Magnetic lock and controlled release ensure secure normal operation; if power is interrupted, the damper takes over. Business Impact: Maintains cabinet security while guaranteeing automatic release when needed. Application: Regular operations in harsh environments with reliable fail-safe behavior. Feature: 24 V DC supply compatibility enables straightforward integration with common automation and control systems. Business Impact: Reduces wiring complexity and retrofit costs, speeding up installation. Application: Rack door assemblies in automation and control panels. Feature: Sheet steel with zinc-plated finish provides rugged durability. Business Impact: Longer service life in challenging industrial settings, lowering maintenance cycles. Application: Enclosures exposed to dust, moisture, and mechanical wear. Feature: Complete supply including gas pressure damper system, cable harness, magnetic lock, and assembly parts. Business Impact: Simplifies procurement and installation, reducing field assembly errors. Application: New builds and upgrades for 1-piece aluminium glazed doors.
Get a Quick Quote for a Rittal 7030240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030240?
Enquire Now
FAQs
The DK 7030.240 is designed for a 1-piece aluminium glazed door and ships with a complete kit including the cable harness, magnetic lock, and assembly parts. It plugs into standard 24 V DC door control modules, enabling straightforward retrofit or new installations with reduced wiring complexity and fewer field errors.
During a power loss to the magnets, the gas pressure damper system automatically pushes the door open, providing immediate, hands-free access. Normal operation keeps the door secured by the magnetic lock, ensuring safe, controlled access during routine use.
The DK 7030.240 aligns with industry classifications ETIM 9 EC001770 and ECLASS 8.0 27390190, aiding interoperability and specification. The kit is supplied as a single unit with a total package weight of 3.34 kg and includes all necessary components for quick installation.
CE certification and IP rating specifics should be confirmed with the supplier or system integrator. The kit is designed for robust industrial use and standard electrical compatibility, but final compliance depends on the overall cabinet and system integration in your facility.
The DK 7030.240 provides an all-in-one solution with damper, magnetic lock, and cable harness plus assembly parts, reducing installation time and field errors. Its durable sheet steel, zinc-plated finish, and included hardware contribute to lower maintenance needs and longer service life in demanding environments.
