Rittal 7030262 VX IT Aluminium Glazed Door - IP20
Part Number: 7030262
Quick Summary
Rittal VX IT aluminium glazed door is designed for automated opening in industrial control cabinets during alarms. Traditional cabinet doors often fail to vent quickly during power outages or alarm events, risking heat buildup and slower response times. Key standards include IP 20 protection for solid vent flaps, ETIM EC000261 classification, and ECLASS 8.0 27180101 alignment to streamline procurement. This solution integrates with VX IT frames for rapid installation and supports remote control via the CMC III door system to boost safety, reduce maintenance fuss, and minimize downtime in demanding industrial environments.
Product Information
Extended Description

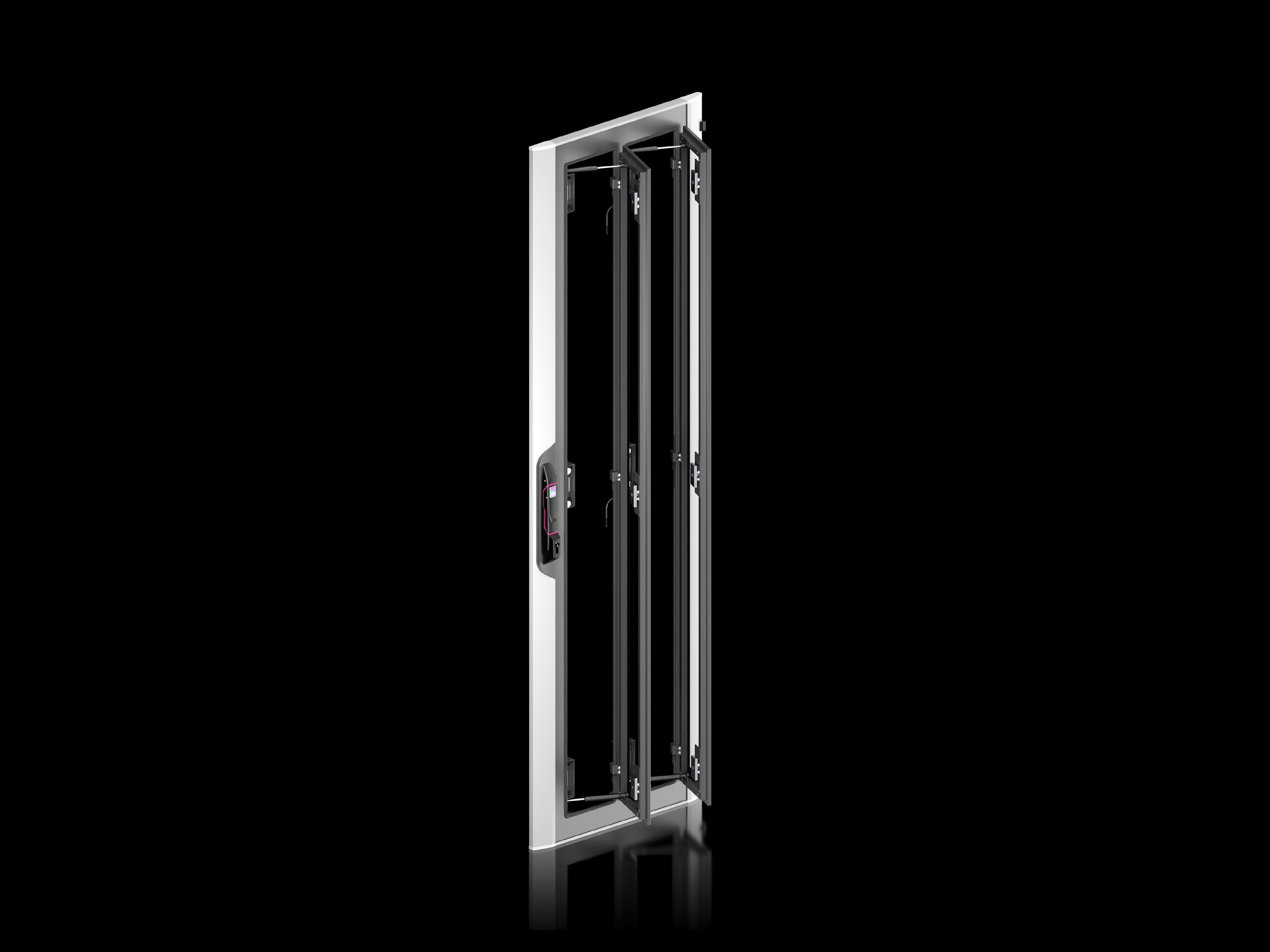

7030262 Rittal: VX IT aluminium glazed door (ADO), WxH: 600x2000, 2x single-pane safety glass, without foil
Article number
VX_IT 7030.262
Design
Viewing panels: Single-pane safety glass, tinted | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | Glazed door: 2x single-pane safety glass, tinted | one-part, with vent flaps | Frame: Extruded aluminium section
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Material
Frame: Extruded aluminium section | Viewing panels: Single-pane safety glass, tinted
Supply includes
Glazed door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width: 600 mm | Height: 2,000 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925861
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX IT aluminium glazed door (ADO), WxH: 600x2000, 2x single-pane safety glass, without foil
Feature: The VX IT glazed door includes integral vent valves and vent flaps that open automatically on alarm or power failure. Business impact: rapid venting reduces pressure buildup, protecting sensitive components and shortening fault recovery times. Application: ideal for control cabinets in automated production lines where quick, reliable air exchange is essential. Feature: Glazed door with two 2x single-pane safety glass viewing panels and tinted glass. Business impact: enhances visibility for status checks and monitoring without compromising safety. Application: suitable for front-access enclosures in manufacturing plants where operators need quick cabinet assessment. Feature: Frame constructed from extruded aluminium sections and a durable one-part glazed door with vent flaps. Business impact: delivers corrosion resistance, lightweight handling, and long service life in challenging environments. Application: retrofits and new builds within Rittal VX IT ecosystems to simplify installation and ongoing maintenance. Feature: Activation via CMC III door control module (DCM) and remote control capabilities. Business impact: enables centralized control, integration with SCADA, and reduced on-site visits. Application: essential for facilities pursuing Industry 4.0 monitoring and alarm-driven automation. Feature: External projection of the vent flap is 200 mm when opened. Business impact: ensures clear air pathways and avoids obstruction in tight cabinets. Application: advantageous in compact rack layouts where space planning matters. Feature: Supply includes glazed door with comfort handle for semi-cylinders and security lock 3524 E. Business impact: supports secure access and tamper resistance while maintaining ergonomic operation. Application: aligns with facility security policies and helps minimize unauthorized access in high-value equipment.
Get a Quick Quote for a Rittal 7030262
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030262?
Enquire Now
FAQs
To install, mount the glazed door onto the VX IT frame, connect the vent valves to the alarm system, and wire the door control module (DCM) to the CMC III network. Verify mechanical clearance for the 200 mm vent projection and confirm IP20 isolation for vent channels. Finish with the included comfort handle and security lock for secure operation.
Dimensions are 600 mm wide by 2000 mm high. It operates with a DC current of 0.78 A. The door uses 2x single-pane tinted safety glass panels in an extruded aluminium frame, and features a vent flap that projects 200 mm when opened. EAN is 4028177925861, and the product ships as 1 piece per package.
Yes. The door assembly uses an extruded aluminium frame and tempered safety glass with a design focused on reliability in indoor industrial settings. Its IP20 protection for solid vent flaps provides dust resistance, while the venting system mitigates thermal stress during alarms or power interruptions, supporting continuous operation in manufacturing and automation environments.
The VX IT glazed door aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, supporting consistent procurement data. It also carries an IP20 rating for vent protection, and the EAN 4028177925861 ensures traceable traceability for inventory systems.
Maintenance benefits include fewer on-site venting adjustments due to automatic opening, centralized remote control via CMC III reducing field visits, and improved cabinet reliability. While ROI depends on application, faster fault isolation, reduced downtime, and standardized procurement typically translate to lower total cost of ownership over equipment lifecycles.
