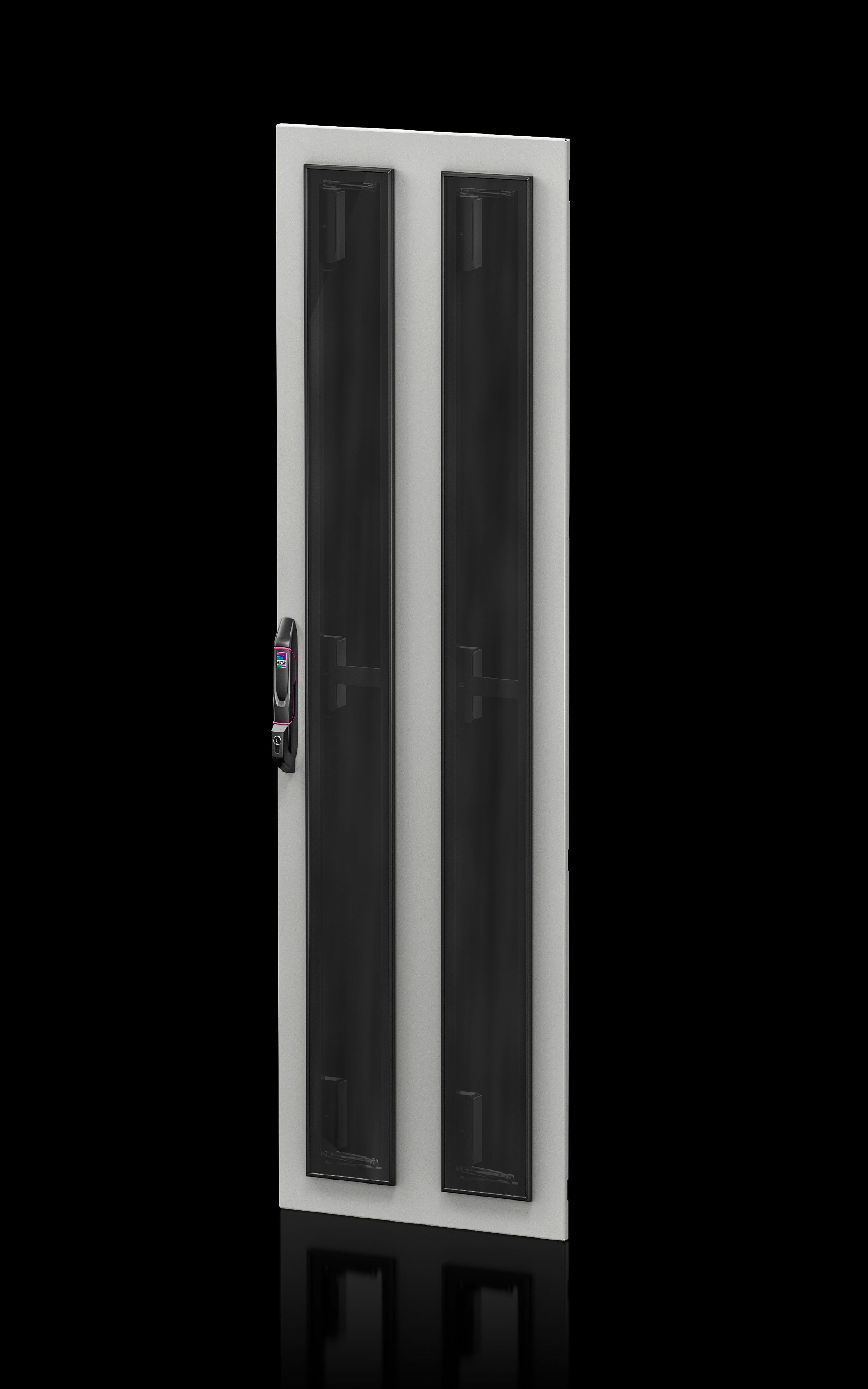

Rittal VX_IT 7030.272 Door - IP20 Vent-Flap Auto-Open
Part Number: 7030272
Quick Summary
Rittal VX_IT door with automatic vent flap opens during alarms for cabinet access and safety. Manual doors can hinder fast emergency response and complicate remote monitoring in harsh environments. This model carries an IP 20 protection rating and integrates with CMC III for remote control and automation, while ETIM EC000261 and ECLASS 8.0 27180101 classifications simplify procurement. Designed for 600x2000 mm openings in RAL7035 enclosures, it supports efficient maintenance and faster incident response, making it a robust choice for modern control cabinets. Coupled with a compatible safety handle and secure lock, it enhances security and reduces downtime during service. This combination supports uptime, lower maintenance costs, and safer cabinet access for operators.
Product Information
Extended Description
7030272 Rittal: VX IT sheet steel door ADO, WxH 600x2000, RAL7035, 2x single-pane safety glass, foil
Article number
VX_IT 7030.272
Design
Viewing panels: Single-pane safety glass, tinted | Spring damper for flap opening | Magnets for fixing the flaps | Valves are open at zero current | With sheet steel door | one-part, with vent flaps | Frame: Sheet steel
Product description
With integral vent valves for automated opening function in the event of an alarm or power failure. The glazed door for the Automatic Door Opening System replaces the standard VX IT door.
Benefits
Supports remote control via the CMC III system
Technical specifications
External projection of the vent flap: 200 mm (when opened)
Function principle
Activation via CMC III door control module (DCM)
Material
Frame: Sheet steel | Viewing panels: Single-pane safety glass, tinted
Colour
RAL 7035
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E
With DC
0.78 A
Dimensions
Width: 600 mm | Height: 2,000 mm
IP protection category to IEC 60 529
IP 20 for solid vent flaps
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177925908
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
VX IT sheet steel door ADO, WxH 600x2000, RAL7035, 2x single-pane safety glass, foil
The VX_IT 7030.272 door features an integrated vent valve system that enables automated opening in alarm or power-failure scenarios, reducing manual intervention and accelerating incident response in critical control cabinet environments. Business impact includes lower downtime and improved operator safety, particularly in production lines where quick access is essential for monitoring and maintenance. In practice, this is ideal for automation deployments that rely on remote operations and fast venting to prevent pressure buildup inside enclosures. The door also supports remote control via the CMC III system, enabling seamless integration with plant networking and safety protocols. Application: control cabinets in manufacturing cells where alarms trigger automatic door response and venting.
Get a Quick Quote for a Rittal 7030272
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7030272?
Enquire Now
FAQs
Begin by confirming the cabinet opening is 600x2000 mm and the mounting frame is ready. Mount the sheet steel door, attach the vent flap mechanism, and connect the door control to the CMC III DCM. Verify the vent valves open at zero current, check the 0.78 A DC supply, and test the alarm trigger to ensure automatic opening works as expected. Finally, inspect the safety glass and seal integrity before returning the cabinet to service.
Dimensions specify a width of 600 mm and height of 2,000 mm. The door features a protective IP 20 rating suitable for solid vent flap equipment, ensuring minimal ingress in typical indoor cabinet environments. The exterior color is RAL 7035, and the unit includes a sheet steel frame with tinted single-pane safety glass panels.
The door is designed for standard indoor automation cabinets with an IP 20 protection level, offering reliable performance against dust and incidental contact. For harsher environments, consider enclosure IP ratings higher than 20 and additional enclosure sealing; however, the CMC III integration and remote operability still provide significant uptime gains and safety benefits in typical manufacturing settings.
Key standards and classifications include ETIM 9 EC000261 and ECLASS 8.0 27180101, which support procurement and data exchange. The product also specifies an IP 20 protection rating under IEC 60 529 and carries the EAN 4028177925908. For logistical and tariff considerations, the customs tariff number is 94039910. These references aid integration with ERP systems and compliance workflows.
Remote operation via the CMC III system reduces downtime by enabling quick door responses during alarms. The integrated vent flap minimizes manual intervention, lowering maintenance labor and risk exposure for operators. The secure handle and lock enhance safety during servicing, and the 600x2000 mm opening is a standardized size that reduces misfit repairs, contributing to faster deployment and a favorable return on investment in automated control cabinets.
